Omron NX1P2 series Hardware User Manual

A-2

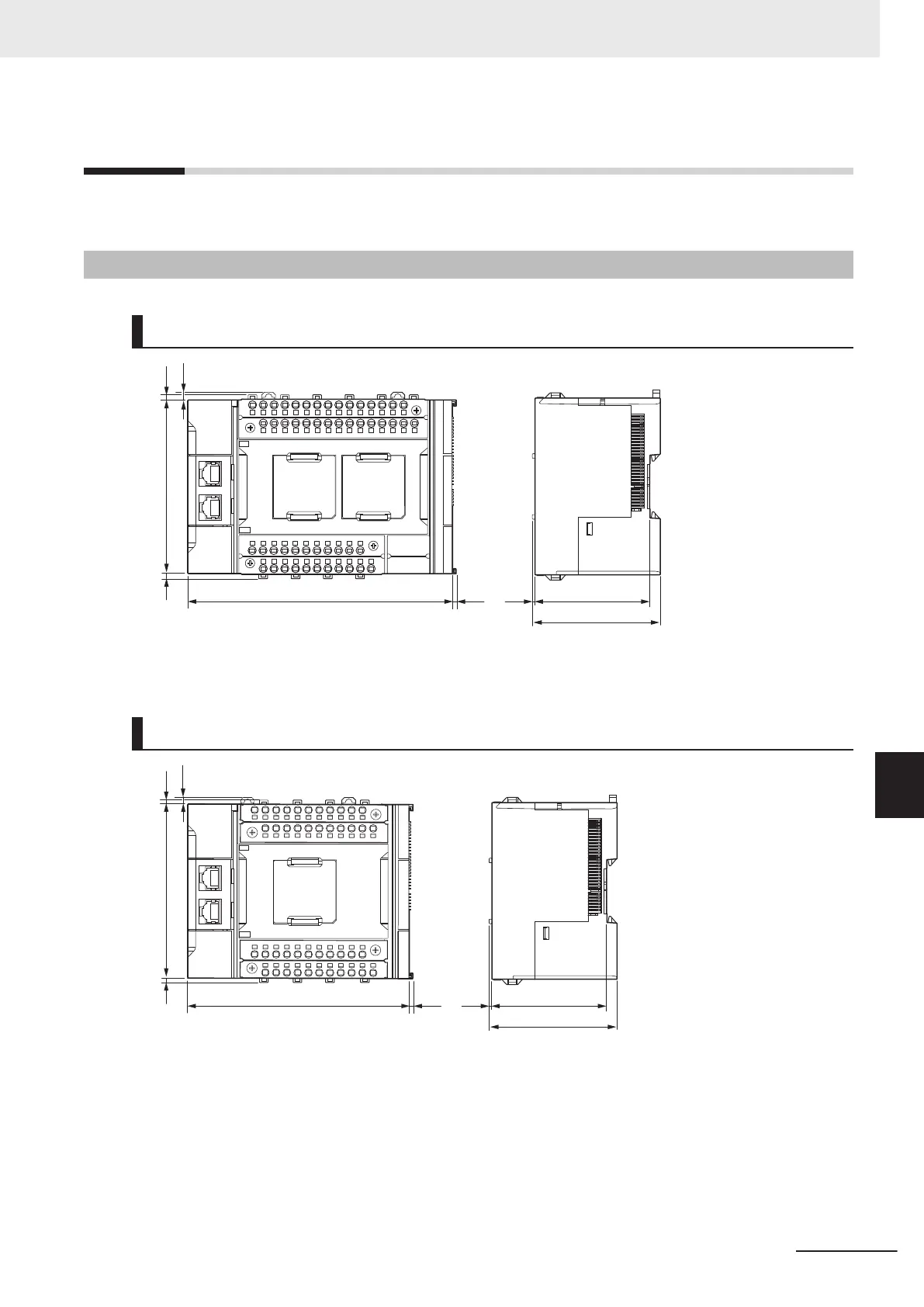

Dimensions
Dimensions of the Units are shown as follows. The unit of dimension is millimeter.
A-2-1
NX-series NX1P2 CPU Units
NX1P2-££40£££
Unit: [mm]
65.2
*1
71
1.5
2.1
148
100 3
4.5
3
*1. The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.
NX1P2-9£24£££
Unit: [mm]
65.2
*1
71
1.5
2.1
124
100
4.5
3
3
*1. The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.
For dimensions after attaching the communications cables and Option Boards, refer to 5-3-13 Assem-
bled Appearance and Dimensions on page 5-39.
Appendices
A-3
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
A-2 Dimensions
A
A-2-1 NX-series NX1P2 CPU Units

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
