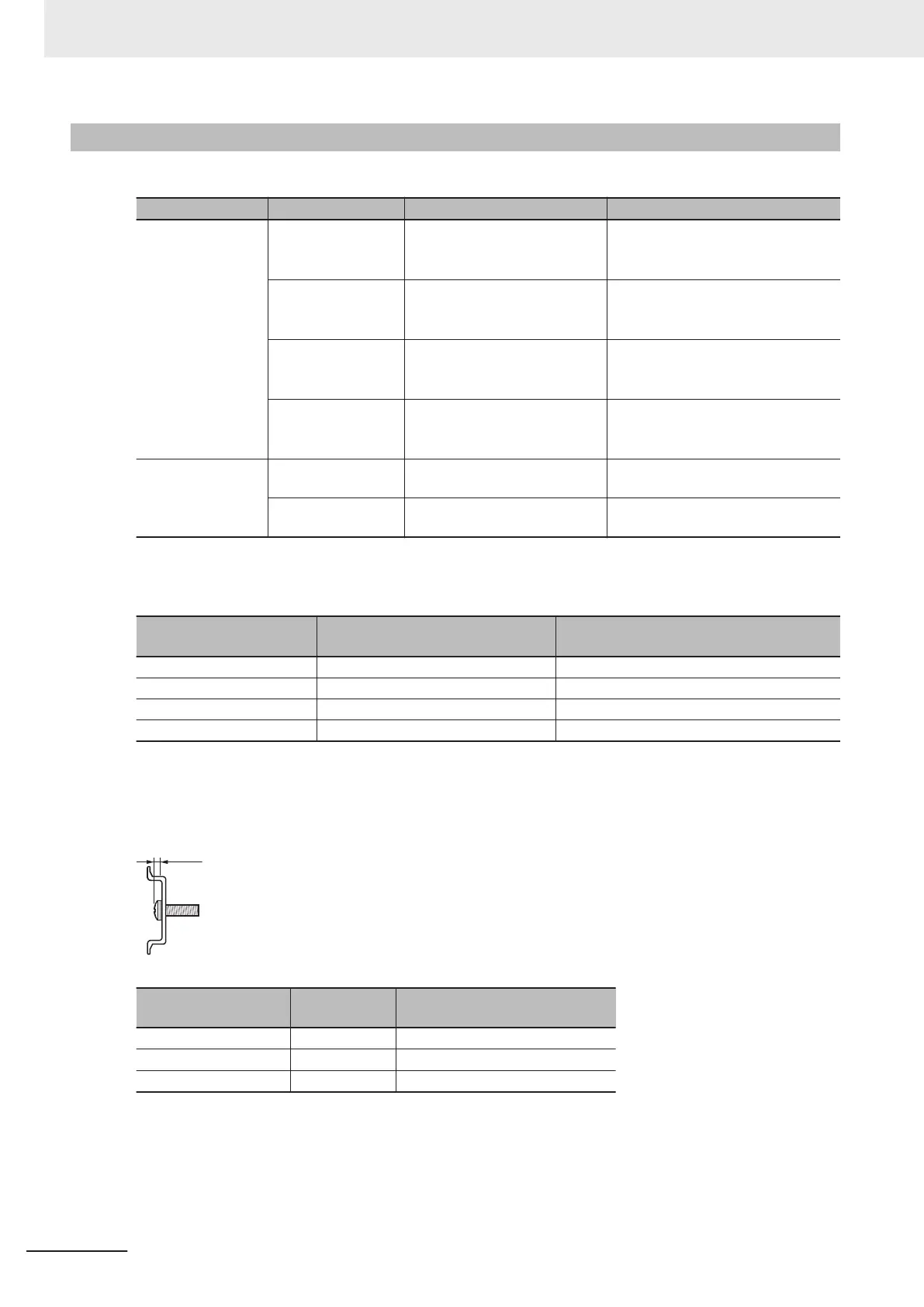

5-3-2
Preparations for Installation
We recommend using the following products to install the Unit on a DIN Track.
Name Model Manufacturer Remarks
35-mm DIN Track PFP-50N OMRON Corporation
• Length: 50 cm
• Material: Aluminum
• Surface treatment: Insulated
PFP-100N OMRON Corporation
• Length: 100 cm
• Material: Aluminum
• Surface treatment: Insulated
NS 35/ 7,5 PERF Phoenix Contact
• Length: 75.5, 95.5, 115.5, or 200 cm
• Material: Steel
• Surface treatment: Conductive
NS 35/ 15 PERF
Phoenix Contact
• Length: 75.5, 95.5, 115.5, or 200 cm
• Material: Steel
• Surface treatment: Conductive
End Plate PFP-M OMRON Corporation T
wo End Plates are required for each
CPU Rack.
CLIPFIX 35 Phoenix Contact Two End Plates are required for each
CPU Rack.
Not all of the combinations of the DIN Tracks and End Plates listed above are possible.
Confirm applicability of the combinations in the following table.
DIN Track model
PFP-M
(OMRON)
CLIPFIX 35
(Phoenix Contact)
PFP-50N Possible Possible
PFP-100N Possible Possible
NS 35/ 7,5 PERF Possible Possible
NS 35/ 15 PERF Not possible Possible
Also, use screws and washers of the following sizes to fix the DIN Tracks.
(a): Dimensions from the screw head to the fastening surface
DIN Track model
Applicable
screw size
(a)
PFP-50N M4 4.1 mm max.
NS 35/ 7,5 PERF M6 4.6 mm max.
NS 35/ 15 PERF M6 10 mm max.
If you use any DIN Track other than those listed in the table above, refer to the dimensions shown in
5-3-13 Assembled Appearance and Dimensions on page 5-39 and use proper screws and washers.
l
DIN T
racks
PFP-100N/50N DIN Track
5 Installation and Wiring
5-16
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
