Omron NX1P2 series Hardware User Manual

Versions
Hardware revisions and unit versions are used to manage the hardware and software in NX-series
Units and EtherCAT slaves.
The hardware revision or unit version is updated each time there is a change in hardware or software
specifications. Even when two Units or EtherCAT slaves have the same model number, they will have
functional or performance differences if they have different hardware revisions or unit versions.
Checking Versions
You can check versions in the ID information indications on the product or with the Sysmac Studio.
Checking Unit Versions on ID Information Indications
The unit version is given on the ID information indication on the side of the product.

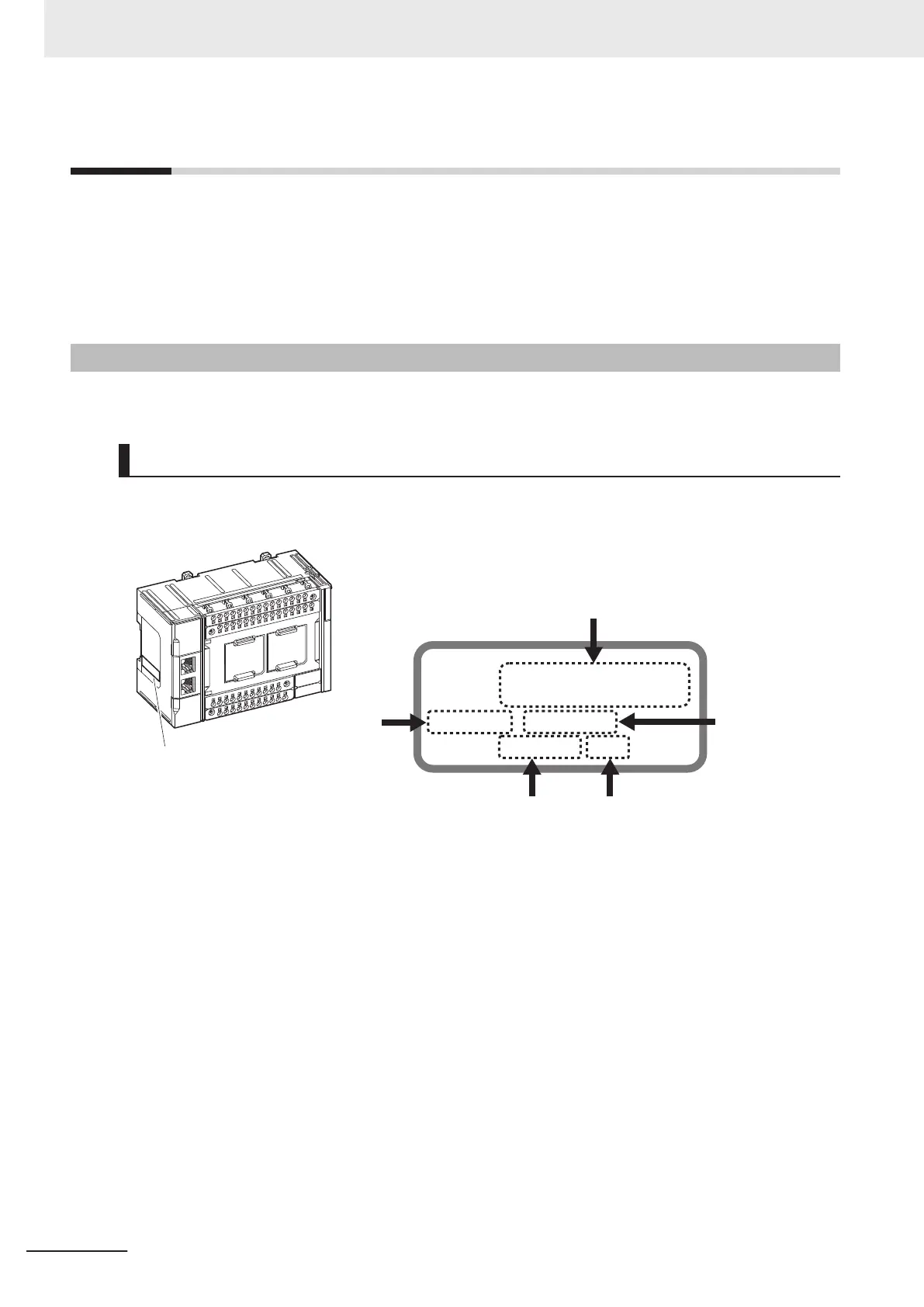

The ID information on an NX-series NX1P2-£££££££ CPU Unit is shown below.
PORT1 : ££££££££££££
PORT2 : ££££££££££££
Ver.1.££ HW Rev. £
LOT No. DDMYY£ xxxx
ID information indication
Unit version
Lot number
Serial number
Hardware
revision
MAC address
Note The hardware revision is not displayed for the Unit that the hardware revision is in blank.
Versions
38
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
