Omron NX1P2 series Hardware User Manual

5-3-13

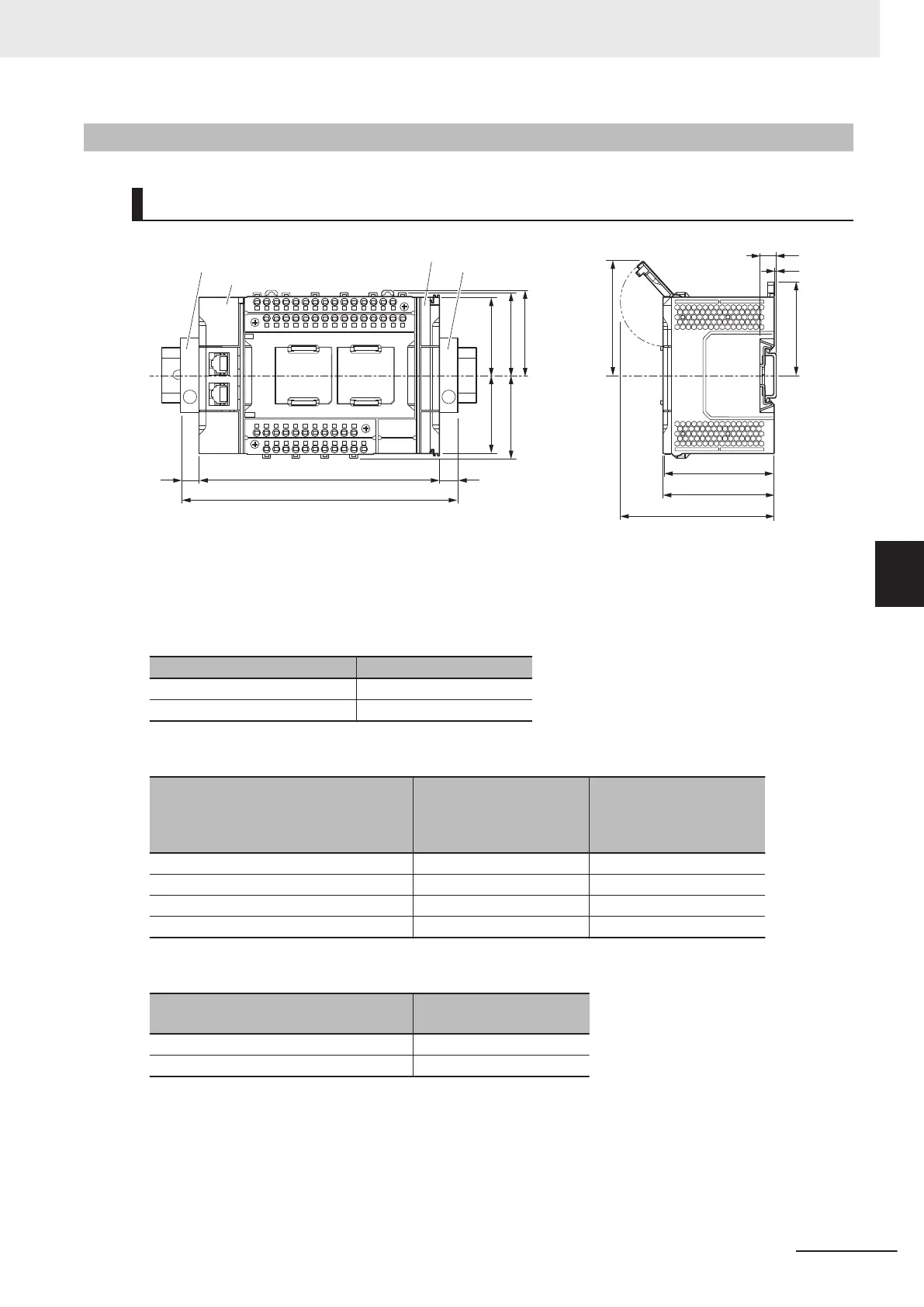

Assembled Appearance and Dimensions
Installation Dimensions
(When DIN Track mounting hook is unlocked)
96.3
(Memory Card cover maximum
range of motion)
Unit: [mm]
59.7
50 50
5353
54.5
71
(A)
(C)
(B)
(Memory Card cover maximum range of motion)
70.5
72.5
W
W + (C) + (C)
End Plate
CPU Unit
End Cover
Center line
of DIN
Track
End Plate
(C)
W: Width of CPU Unit (including the End Cover)
• Unit width
Model Unit width [mm]
NX1P2-££40DT£
154
NX1P2-9£24DT£
130
• DIN Track dimension
DIN Track model
(A)
DIN Track dimension
(B)
Dimension from the back
of the Unit to the back of
the DIN Track
PFP-100N 7.3 mm 1.5 mm
PFP-50N 7.3 mm 1.5 mm
NS 35/7,5 PERF 7.5 mm 1.7 mm
NS 35/15 PERF 15 mm 9.2 mm
• End Plate dimension
End Plate model
(C)
End Plate dimension
PFP-M 10 mm
CLIPFIX 35 9.5 mm
5 Installation and Wiring
5-39
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-3 Mounting and Removing Units
5
5-3-13 Assembled Appearance and Dimensions

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
