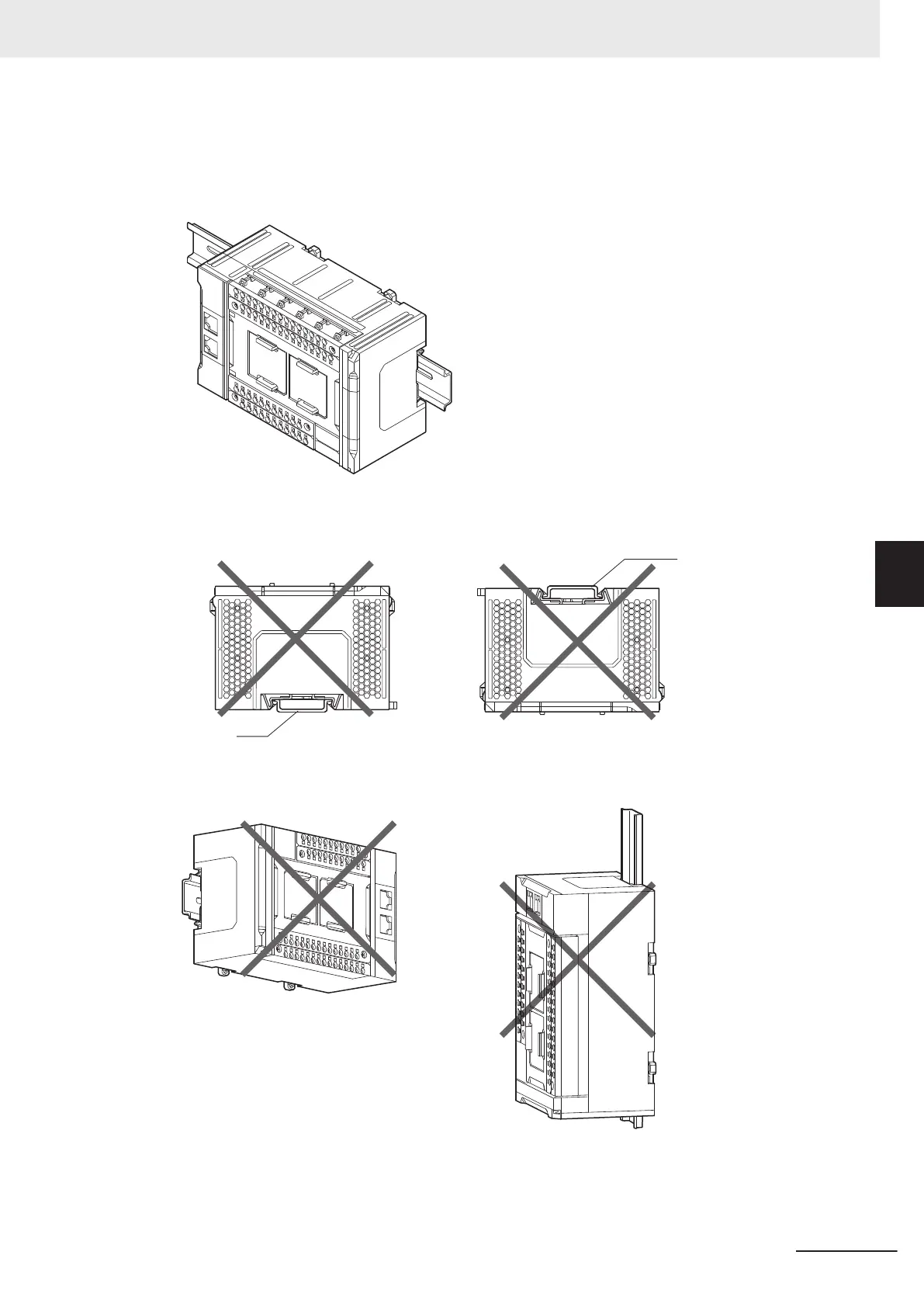

Controller Orientation

• Each Rack must be mounted in the following position to provide proper cooling. This position is

called an upright position.

• Do not install a Rack in any of the following positions.

Mounting with the DIN Track on the Bottom

Mounting with the Rack Upside down Mounting with the DIN Track Installed Vertically

Mounting with the DIN Track on the Top

DIN Track

5 Installation and Wiring

5-13

NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

5-3 Mounting and Removing Units

5-3-1 Installation in a Control Panel
