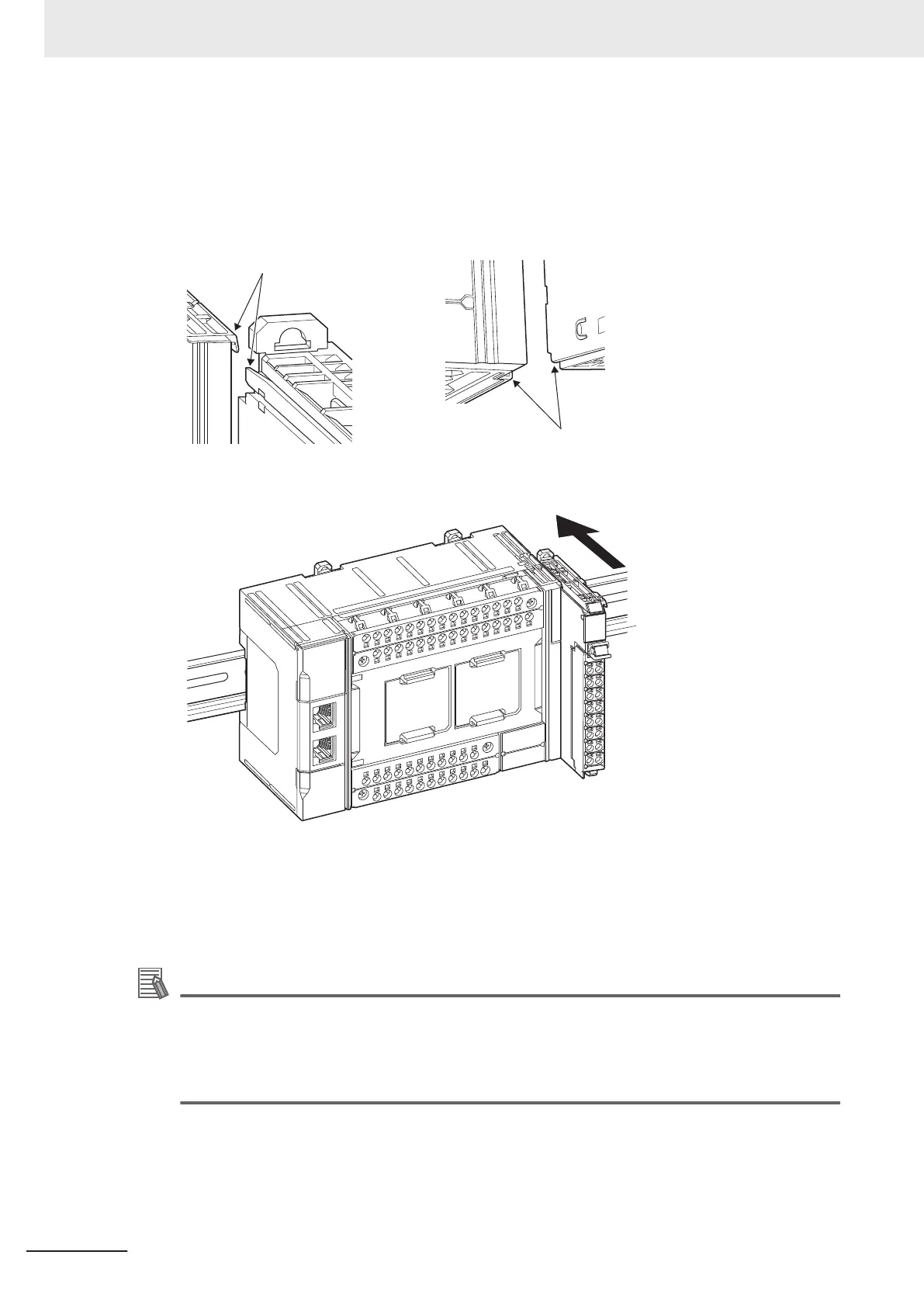

Mounting NX Unit to CPU Unit
Mount the NX Unit to the CPU Unit after removing the End Cover.
1 From the front of the CPU Unit, engage the Unit hookup guides on the NX Unit with the Unit
hookup guides on the Communication Control Unit.
Unit hookup guides
Unit hookup guides
2 Slide the NX Unit on the hookup guides.
3 Press the NX Unit with a certain amount of force against the DIN Track until you hear the DIN
Track mounting hook lock into place.
When you mount the NX Unit, it is not necessary to release the DIN T
rack mounting hook on
the NX Unit. After you mount the NX Unit, make sure that it is locked to the DIN Track.
Additional Information
It is not normally necessary to unlock the DIN Track mounting hook when you mount the NX
Unit. However, if you mount the NX Unit on a DIN T
rack that is not one of the recommended
DIN Tracks, the DIN Track mounting hook may not lock properly. If that happens, unlock the
DIN Track mounting hook at the start of the procedure, mount the NX Unit to the DIN Track, and
then lock the DIN Track mounting hook.
5 Installation and Wiring
5-22
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
