Omron NX1P2 series Hardware User Manual

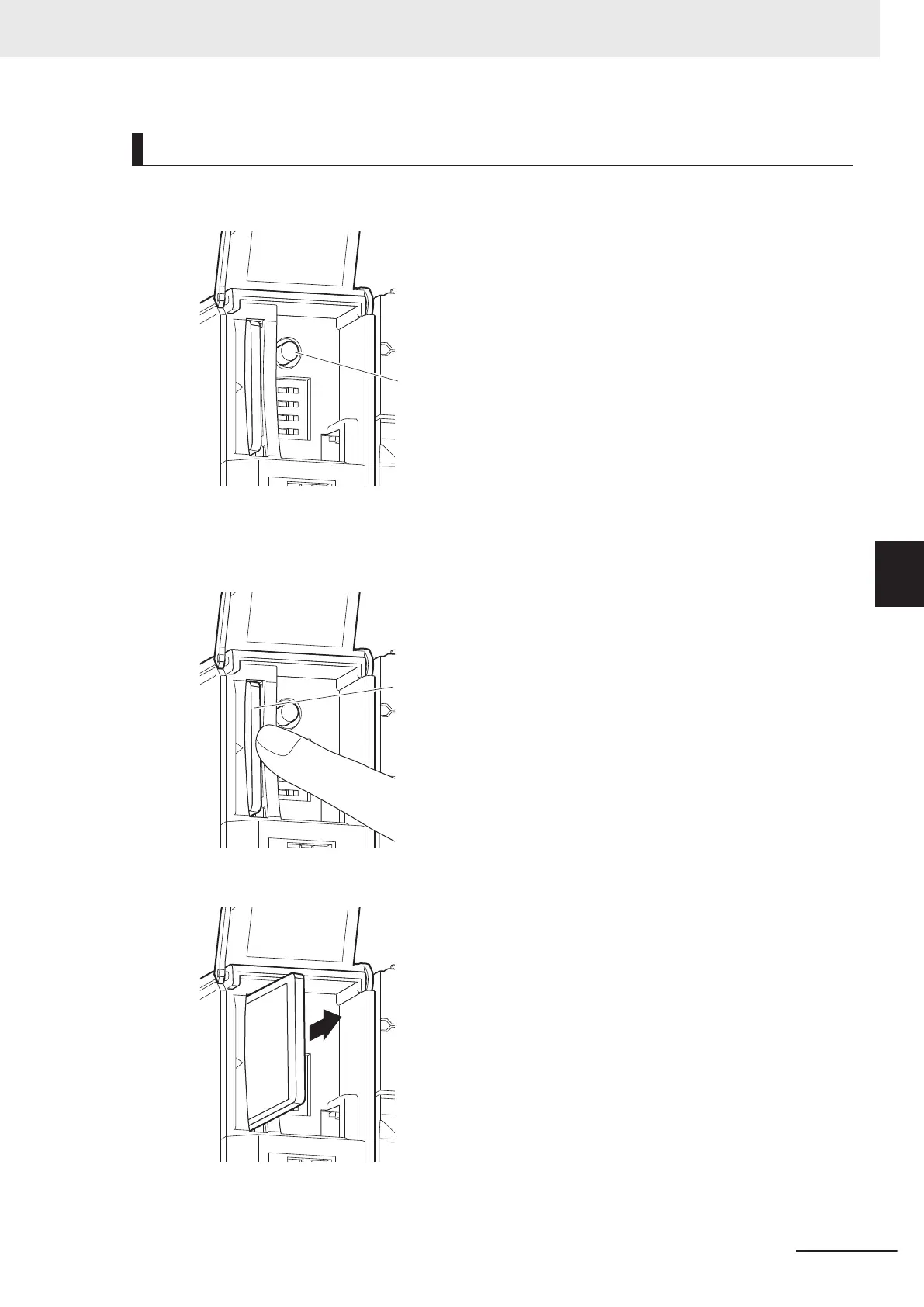

Removing the SD Memory Card
1 Press the SD Memory Card power supply switch.
SD Memory Card
power supply
switch
2 Press the SD Memory Card after you confirm that the SD BUSY indicator (lit while SD Memory
Card access is in progress) and SD PWR indicator (lit while SD Memory Card power is sup-
plied) are no longer lit.
SD Memory Card
The SD Memory Card will be ejected from the compartment.
3 Pull out the SD Memory Card.
5 Installation and Wiring
5-31
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-3 Mounting and Removing Units
5
5-3-8 Installing and Removing the SD Memory Card

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
