Omron NX1P2 series Hardware User Manual

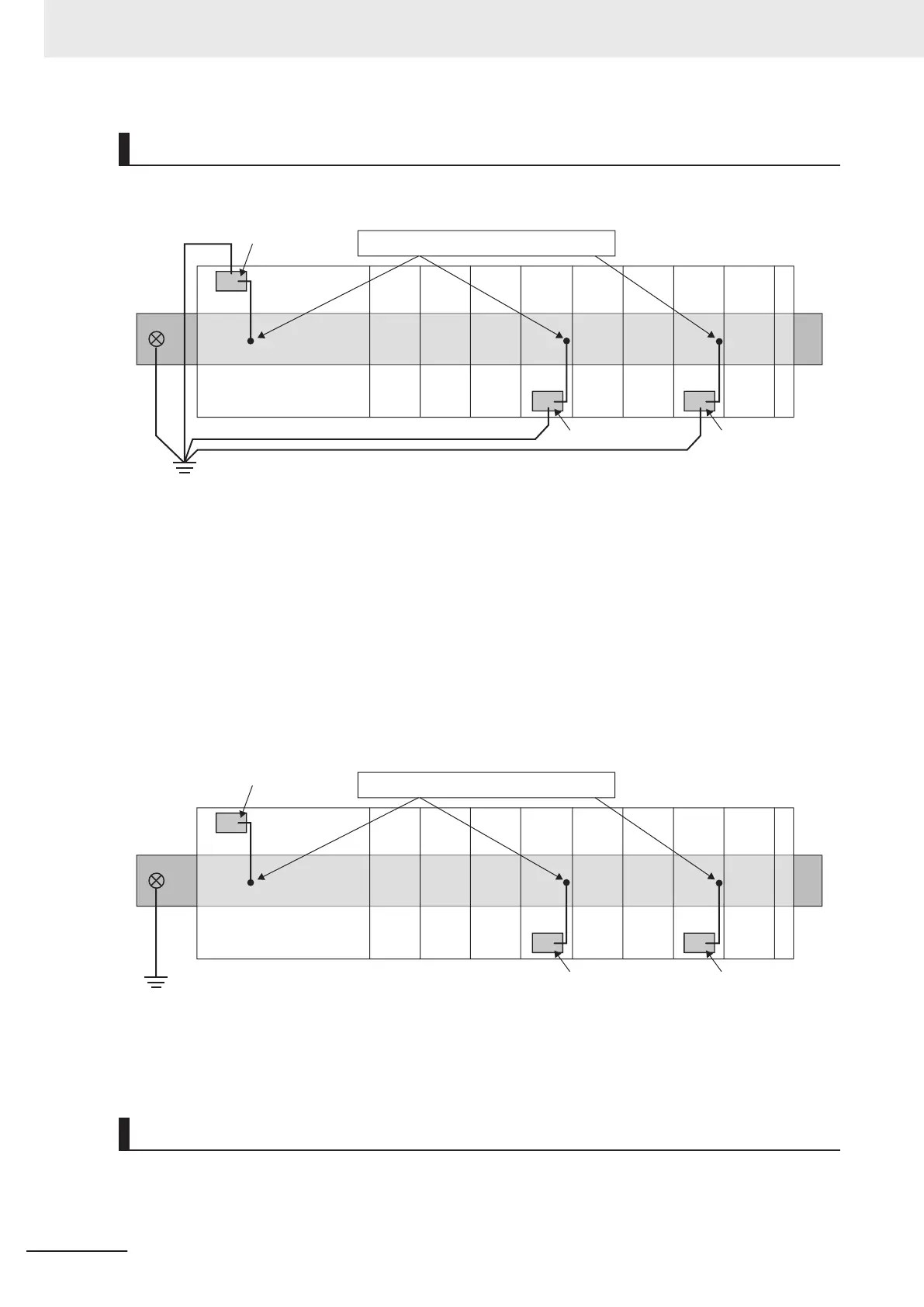

Grounding the CPU Rack
This section describes how to ground the ground terminals on the CPU Rack.
The functional ground terminals that are provided on some Units and the DIN Track are grounded.
NX1P2
CPU Unit
DIN Track
Additional
NX Unit
Power
Supply Unit
Shield
Connec-
tion Unit
Functional ground
terminal
Ground
Electrically connected to the DIN Track
through the DIN Track contact plate.
Functional ground
terminal
Functional ground
terminal
End Cover
○
○ ○
• Using a dedicated ground wire, ground the ground terminals and DIN Track with a ground resist-
ance of 100 Ω
or less.
• The ground wire should not be more than 20 m long.
• Use a ground wire that is 2.0 mm
2
or larger. Refer to 5-4-8 Wiring to the CPU Unit Terminal Block on
page 5-51 for information on ground wires that are applicable to the functional ground terminal on
the CPU Unit. For information on ground wires that are applicable to the functional ground terminals
on the Additional NX Unit Power Supply Unit or Shield Connection Unit, refer to the NX-series
System Units User’s Manual (Cat. No. W523).
If the DIN Track is made of steel and the surface is not treated to produce an insulating material, you
can omit grounding the functional ground terminal on any Unit that has one, as shown in the following
figures.
NX1P2
CPU Unit
DIN Track
Additional
NX Unit
Power
Supply Unit
Shield
Connec-
tion Unit
Functional ground
terminal
Ground
Electrically connected to the DIN Track
through the DIN Track contact plate.
Functional ground
terminal
Functional ground
terminal
End Cover
○
○ ○
If the surface of the DIN Track is treated to produce an insulating material (e.g., anodized aluminum),
the DIN Track contact plate will not be electrically connected to the DIN Track even if they are in physi-
cal contact.
Grounding the DIN Track
Attach a crimped terminal to the ground wire and then connect it to mounting hole on the DIN Track
with a screw to ground the DIN Track.
5 Installation and Wiring
5-48
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
