Omron NX1P2 series Hardware User Manual

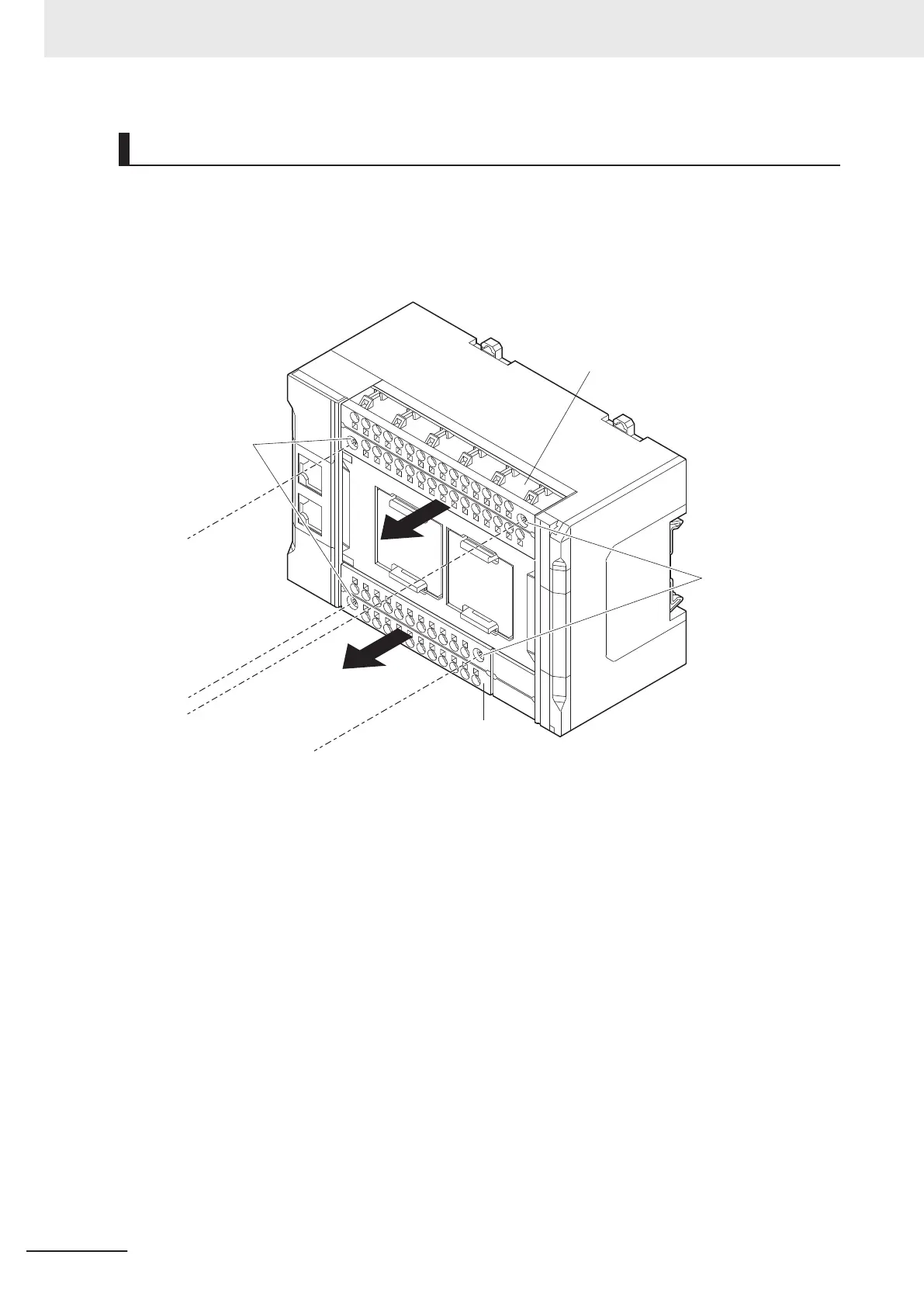

Removing a Terminal Block
1 Loosen the M3 screws on the right and left sides of the terminal block, and remove the terminal
block.
These screws are the self-raising screws, so the terminal block is raised when they are loos-
ened. Loosen the right and left screws alternately if they are hard to loosen.
Input terminal block
M3 screw
M3
screw
Output terminal
block
5 Installation and Wiring
5-62
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
