Omron NX1P2 series Hardware User Manual

l

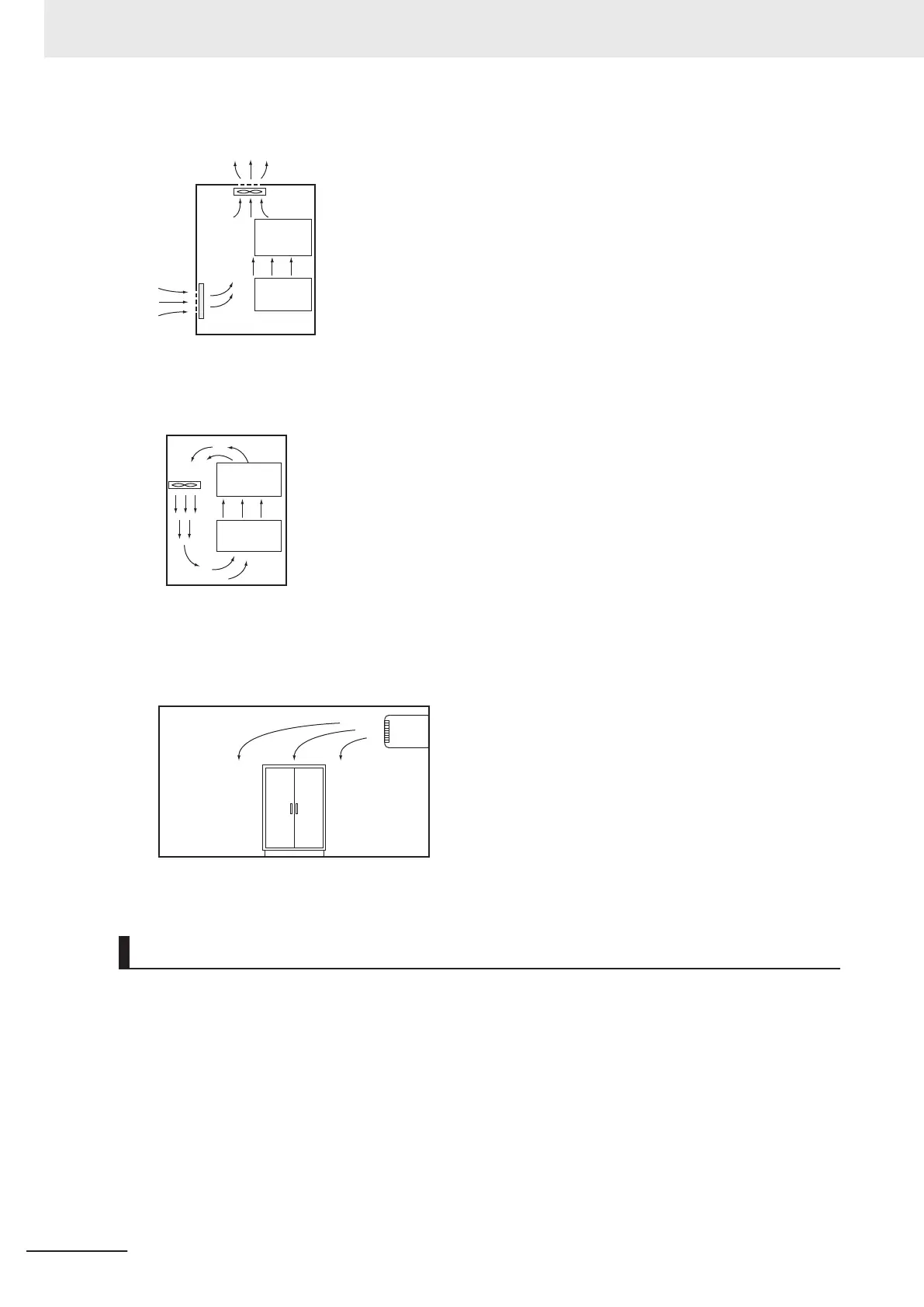

Forced Ventilation (by Fan at Top of Panel)
Air filter
Fan
Forced Ventilation Method
Controller
Controller
l
Forced Air Circulation (by Fan in Closed Panel)
Fan
Forced Air Circulation
Controller
Controller
l
Room Cooling (Cooling the Entire Room Where the Control Panel Is Lo-
cated)
Room Cooling
Cooler
Control panel
Low Temperatures
The Controller may not start normally if the temperature is below 0°C when the power is turned ON.
Maintain an air temperature of at least approximately 5°C inside the panel, by implementing measures
such as installing a low-capacity space heater in the panel.
Alternatively
, leave the Controller power ON to keep the Controller warm.
5 Installation and Wiring
5-84
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
