Omron SMARTSTEP 2 SERIES User Manual

4-26
4-3 Wiring Conforming to EMC Directives
4
System Design
 Radio Noise Filters and Emission Noise Prevention Clamp Cores
Use one of the following filters to prevent switching noise of PWM of the Servo Drive and to prevent
noise emitted from the internal oscillation circuit.

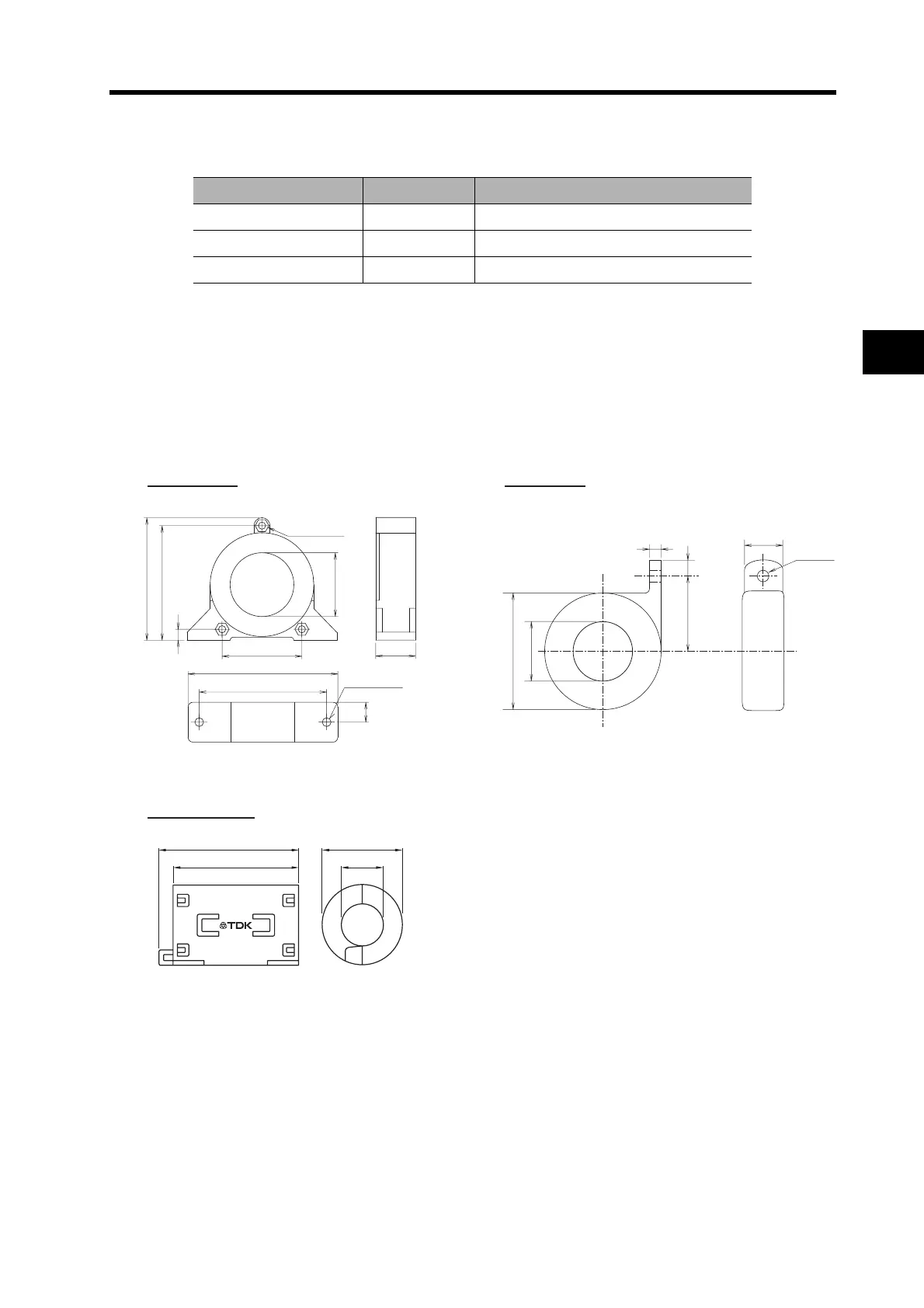

Dimensions
Model Maker Application
3G3AX-ZCL2
*1
*1. Mainly used for 200/400 W. The maximum number of windings is three turns.
OMRON Servo Drive output and power cable
ESD-R-47B
*2
*2. Mainly used for 50/100 W. The maximum number of windings is two turns.
NEC TOKIN Servo Drive output and power cable
ZCAT3035-1330
*3
*3. Also used on the Servo Drive output power lines to comply with the EMC Directives. Only
a clamp is used. This clamp can also be used to reduce noise current on a frame ground
line.
TDK Encoder cable and I/O cable
Two, M5
Three, M4
95
26
78
80
12.5
72
50
7
39.5
3G3AX-ZCL2
51.5
25.5 dia.
17.5
5.1 dia.
3.0
6.5
34.0
ESD-R-47B
34
13
3039
ZCAT 3035-1330
