2-2 External and Mounted Dimensions
2
Standard Models and Dimensions

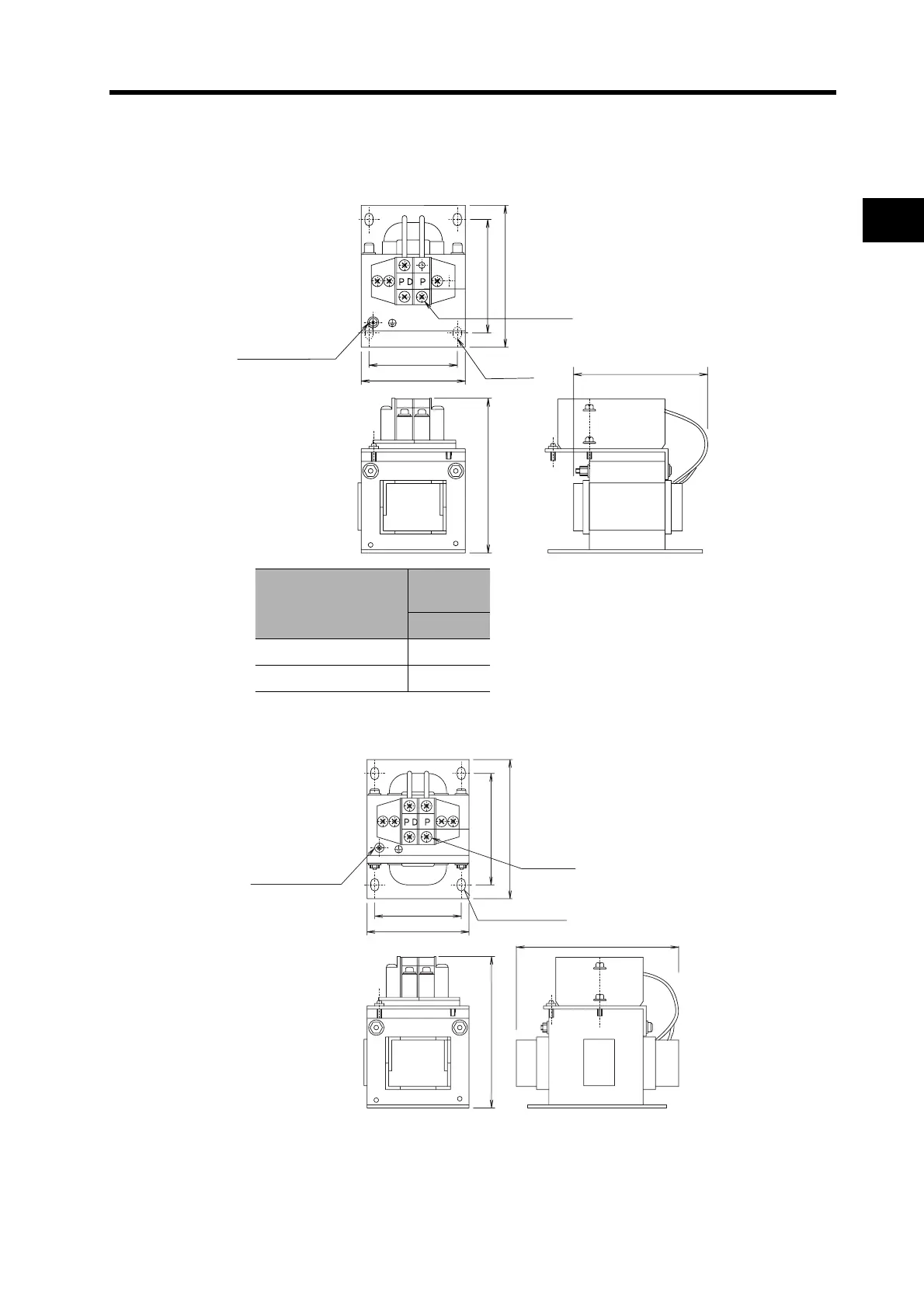

Reactor Dimensions
 3G3AX-DL2002/-DL2004
 3G3AX-DL2007
Model
Dimension
(mm)
L
3G3AX-DL2002 85
3G3AX-DL2004 95
Ground terminal
(M4)
66
56
72
90
Four,
5.2 × 8
Two, M4
98
L
Ground terminal
(M4)
Four, 5.2 × 8
Two, M4
66
56
72
90
105
98
