Omron SMARTSTEP 2 SERIES User Manual

5-5
5-2 Internally Set Speed Control
5
Operating Functions
Selecting the Internally Set Speeds
The four internally set speeds are switched by using the Internally Set Speed Selection 1 Input
(VSEL1) and Internally Set Speed Selection 2 Input (VSEL2).
Operation
Note If more than one internally set speed selection signal is switched at the same time (e.g., as
when switching from Speed 2 to Speed 3), an internally set speed signal in the process of
switching may be temporarily selected. (For example, Speed 1 or Speed 4 may be
temporarily selected.)
The internally set speed command may be temporarily performed with a sudden change,
especially if the acceleration or deceleration time is set to 0 or small value, or if the speed
difference between internally set speed commands is large. Use this function with the
following precautions.
 Avoid switching more than one internally set speed selection signal at the same time.
 Set both Soft Start Acceleration Time and Soft Start Deceleration Time so that the speed
changes gradually and avoid a sudden change.

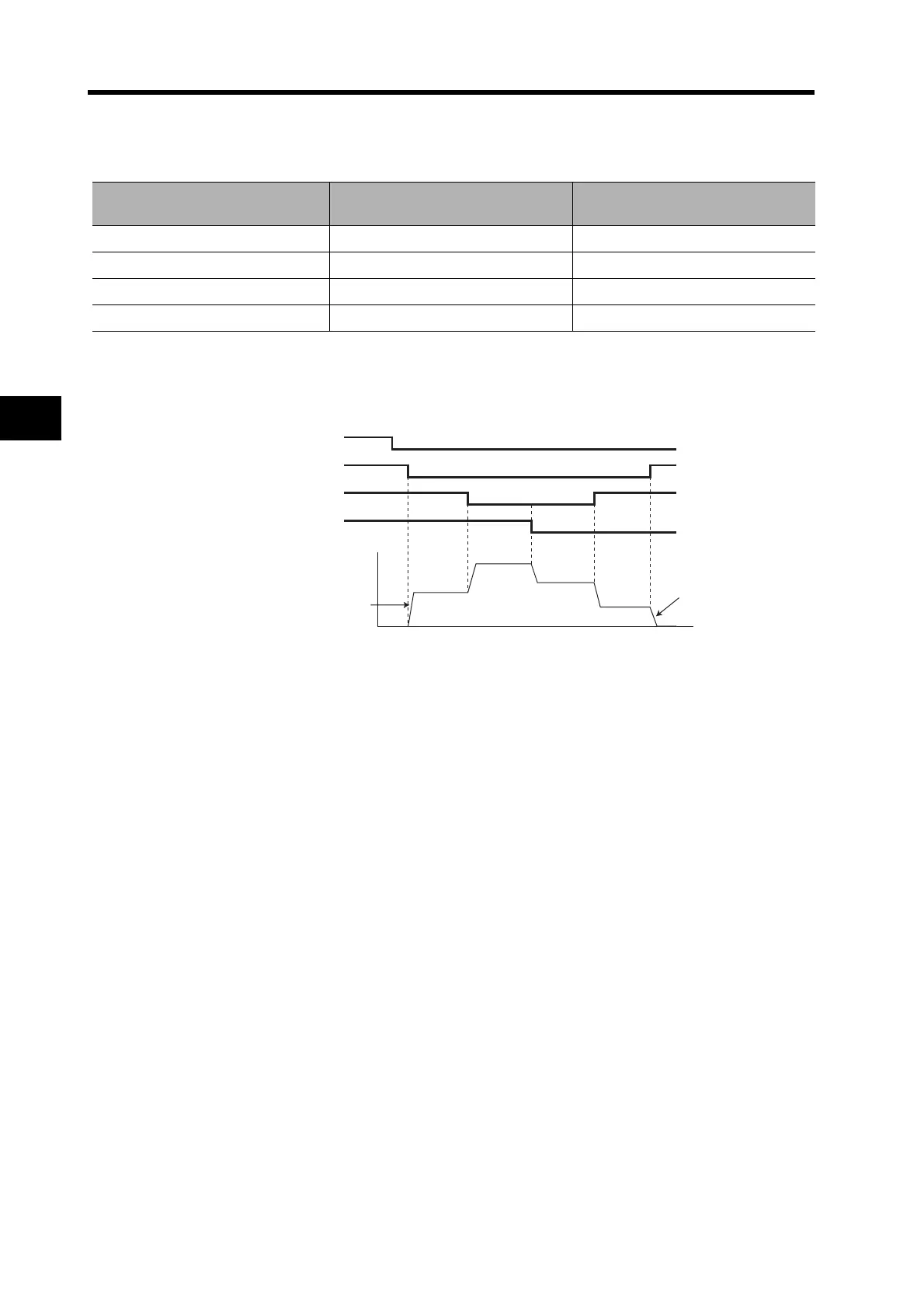

Internally set speed
Internally Set Speed Selection 1
Input (VSEL1) (CN1-6)
Internally Set Speed Selection 2
Input (VSEL2) (CN1-4)
No. 1 Internally Set Speed (Pn53) OFF OFF
No. 2 Internally Set Speed (Pn54) ON OFF
No. 3 Internally Set Speed (Pn55) OFF ON
No. 4 Internally Set Speed (Pn56) ON ON
RUN Command (RUN)
Zero Speed Designation (VZERO)
Internally Set Speed Selection1 (VSEL1)
Internally Set Speed Selection 2 (VSEL2)
Speed
Time
Servo ON
Stop
Drive
Speed 1
Speed 2
Speed 3
Speed 4
The Servomotor accelerates according to
the Soft Start Acceleration Time (Pn58).
The Servomotor
decelerates
according to
the Soft Start
Deceleration
Time (Pn59).
OFF OFF
OFF
ON ON
ON ON
OFF
