Omron SMARTSTEP 2 SERIES User Manual

2-29
2-2 External and Mounted Dimensions
2

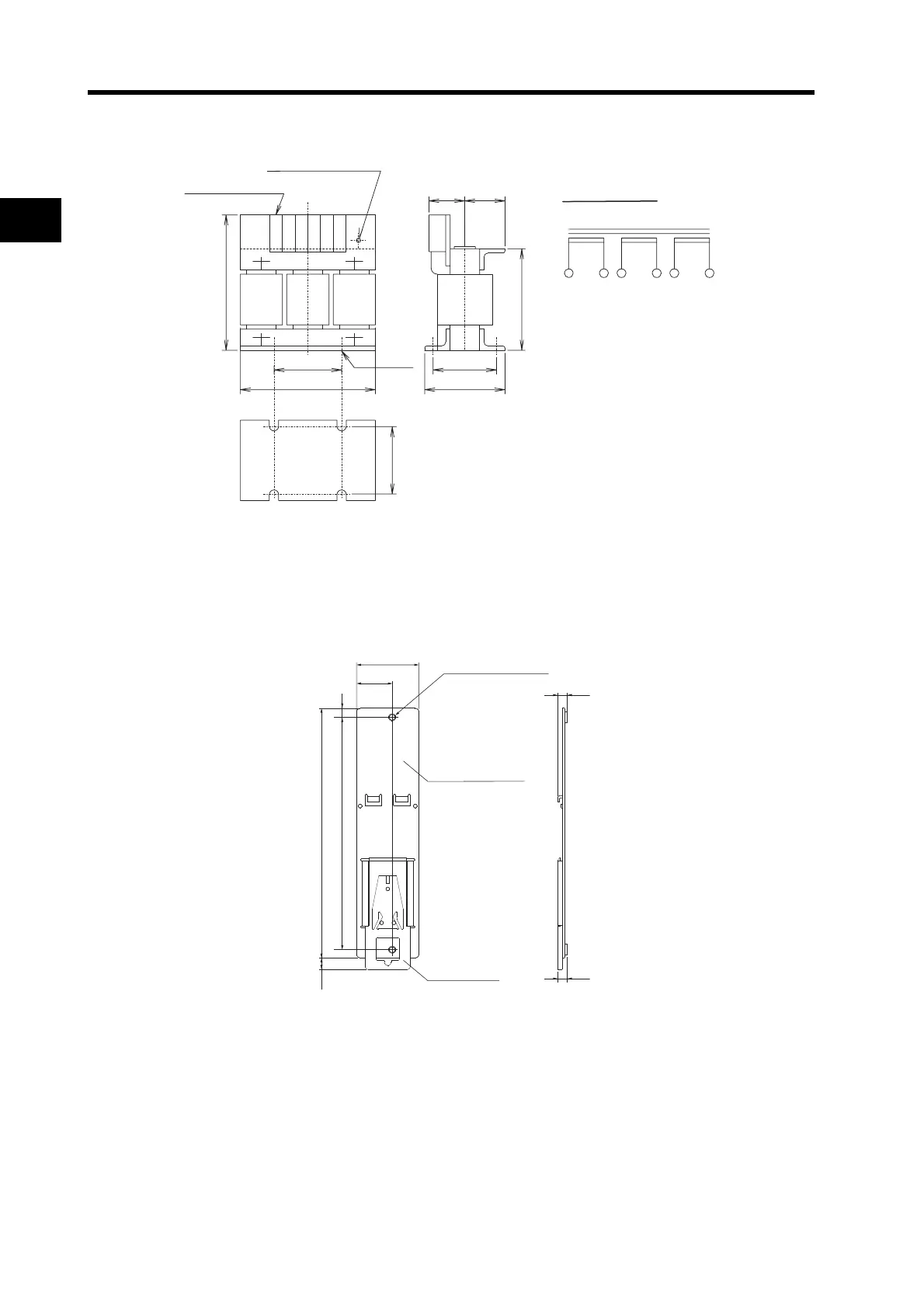

Standard Models and Dimensions
 3G3AX-AL2025
DIN Rail Mounting Unit Dimensions
R7A-DIN01B
*1. Two mounting screws (M4, length: 8) are included.
*2. When the rail stopper is extended, this dimension becomes 10 mm.
Six, M4
terminal screws
Ground terminal (M5)
50±1
Four,
6 dia.
130
67±1
82
92
150
Ro R So S To T
60 40
67±1
Connections
Ro R So S To T
35
Two, M4
mounting screws*1
Mounting panel
Rail stopper
(6)
(6)
20
5130.5
140
(7)
*2
