D-100 Flow Display Manual 08/12 - 0634-7 Page 20

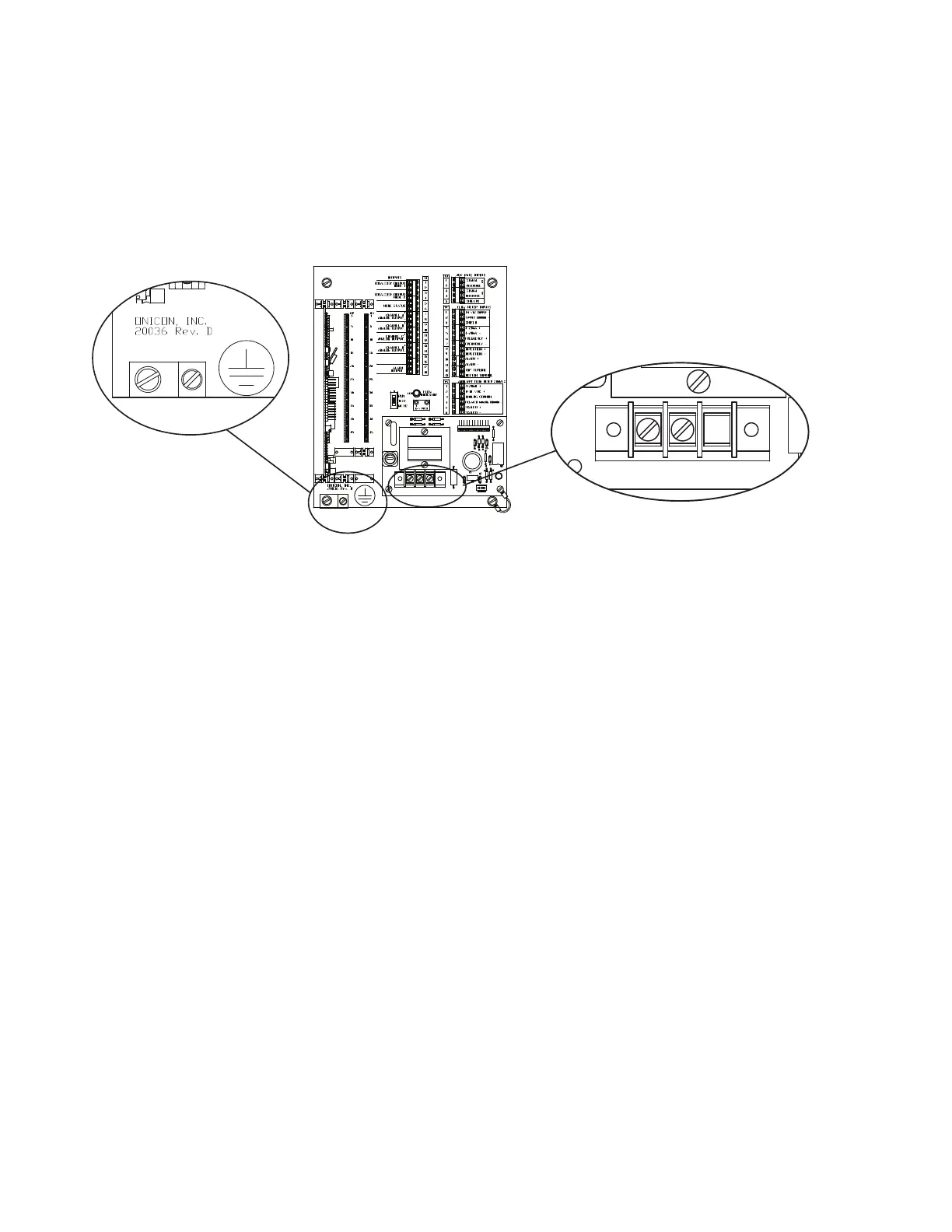

Operating from 24 VAC power
  TheD-100canbefactoryconguredtooperatefrom24±4V50/60Hzpower.Besureto
connect a separate protective earth wire to the protective earth lug provided and shown
below.
Do not exceed 13 in-lb (1.5 Nm) of torque when tightening.
24V NEUTRAL
OHM 5%
3W
TB1
AMP
F1
1
H1
D3
D4
TB1
1/4 AMP
NEUTRAL
F1
24V
VAR1
D2
D1
T1
LED1
20075-50 REV. A
R1
H3
R7
10
G G
J2-12
+24 +15
J2-1
1
60HZ
G
5
J1
Earth Connection
Input Power Connection
