D-100 Display Module BACnet Installation and Operation Guide 04/12 - 0635-2 Page 5
D-100
SCROLL RESET PROGRAM
ONICON
3864
POWER
Steam
Building
Domestic Water Supply
Flow rate and total data to
Data Acquisition System or
Building Control System
120VAC or 24VAC
Input Voltage
1.3 SPECIFICATIONS
BACnet NETWORK INTERFACE
MS/TP RS485
Transceiver: 2-wire, half-duplex
MAC address (device address) range: 1 - 254 (Default: 017)
Device Instance: 0-4,194,303 (Default: 57017)
Baud rate: 9600, 19200, 38400, 76800 or Auto-Baud (Default: Auto)
Termination: 120 ohms or none (Default: none)
Biasing: None
Flow control: None
UDP/IP
Transceiver: Base 10T, 10Mbps, Rj45 connection
Device Instance: 0 - 4,194,303 (Default: 57017)
Default IP address: 192.168.1.24 (Subnet Mask 255.255.255.0) (Port 47808)
Flow control: None
SECTION 1: INTRODUCTION
1.1 PURPOSE OF THIS GUIDE
The purpose of this guide is to provide installation and commissioning procedures and basic
operating and servicing instructions for the ONICON D-100 BACnet serial interface.

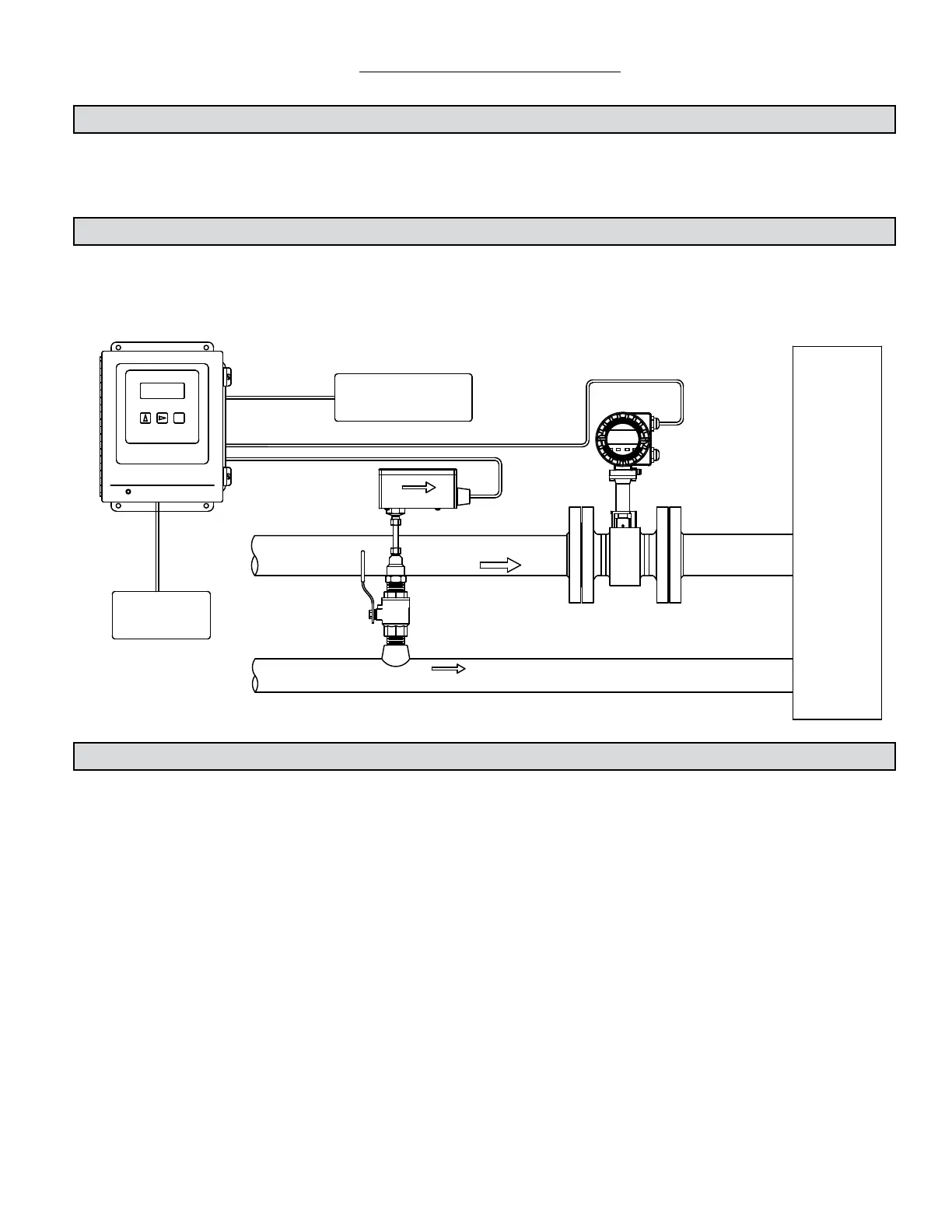

1.2 TYPICAL D-100 FLOW DISPLAY
The D-100 is a totalizing display module that provides a local indication of liquid, gas or
steam ow rate and total data. It can also be provided with an optional BACnet MS/TP or
BACnet/IP serial interface to communicate data to the building control network.

Onicon D-100 Specifications

General

Brand	Onicon
Model	D-100
Category	Measuring Instruments
Language	English
