D-100 Display Module BACnet Installation and Operation Guide 04/12 - 0635-2 Page 17
1.6.3 Changing the Gateway Address
Changing the gateway address requires the use of RUInet utility software and a PC with
an Ethernet card and an available port. Assuming the display is programmed with the
default address (192.168.1.24) the host PC must be congured to operate with an
IP address of 192.168.1.1 and a subnet mask of 255.255.255.0. RUInet is available for
download from the ONICON web site, www.onicon.com.
1. Load RUInet and congure the PC as necessary.
2. Connect an RJ45 Ethernet cable between the PC and the display and power the
D-100. Allow 60 seconds for the display rmware to cycle through start-up
diagnostic routines.
3. Open RUInet.

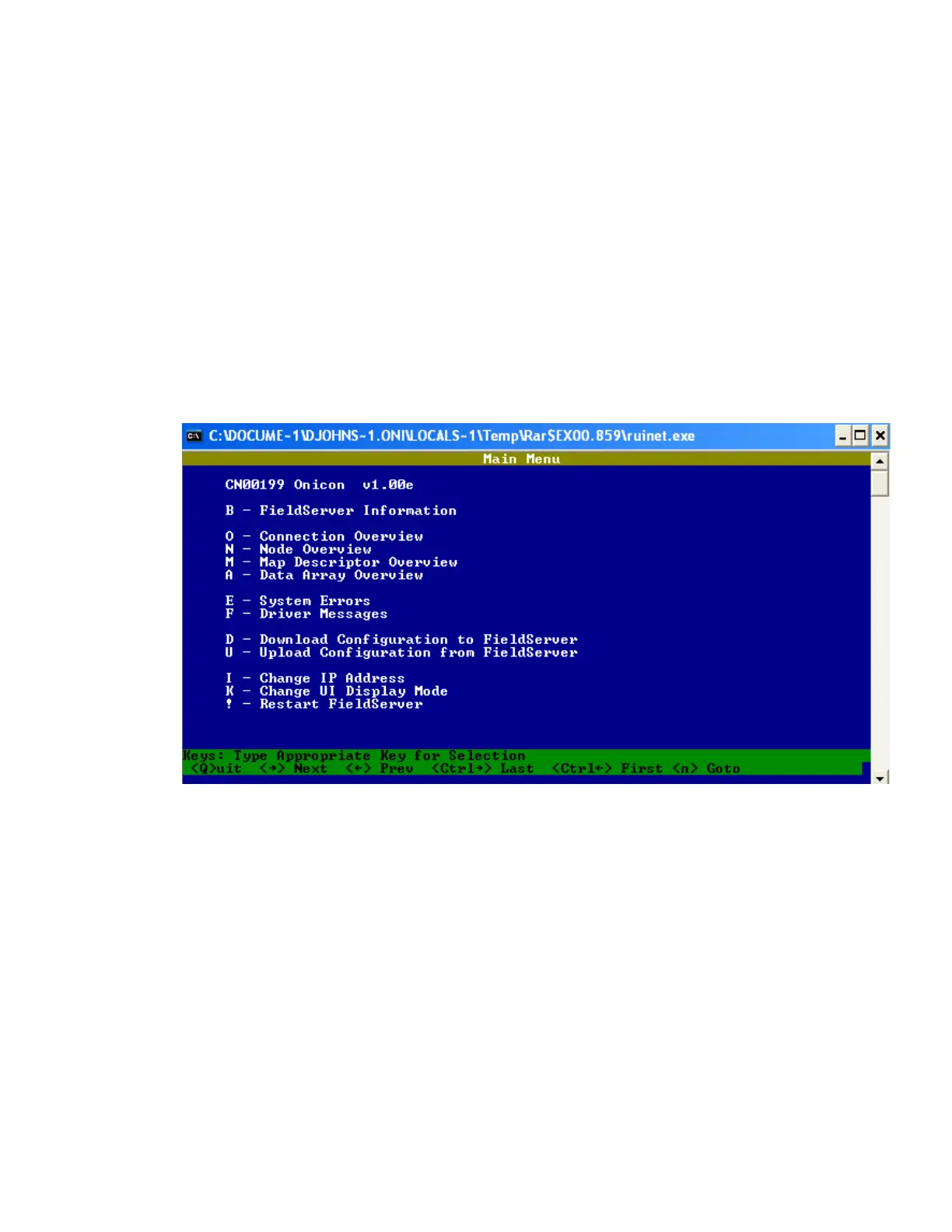

4. From the Remote User Interface main menu (shown below) select option “I”,
Change IP Address.
