Connecting Playback Devices
Connecting a Blu-ray/DVD Disc player and Game console
R L
A
FM
75Ω
HDMI OUT HDMI IN ETHERNET USB
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
5V/1A
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
DIFITAL IN
SUB-
WOOFER
AM
TUNER
L
R
L
R
L
R
a

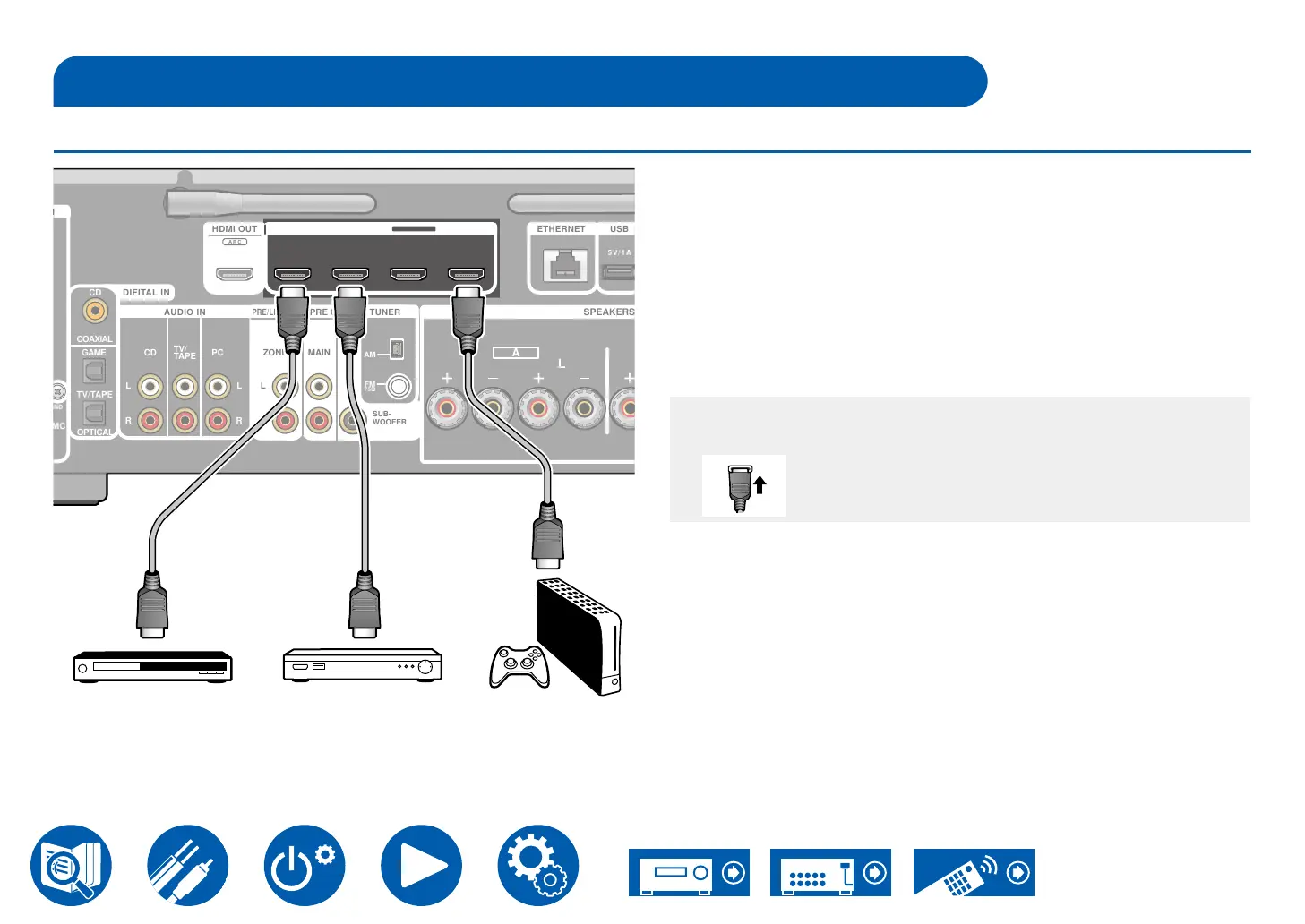

This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through
function that can transmit video and audio signals of the AV component to the
TV even if this unit is in standby mode.
(*) The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking
with a CEC-compliant player, switching audio output between TV and this unit
or adjusting the volume using the remote controller of a CEC-compliant TV,
• Use an HDMI cable that supports 4K or 8K high-quality video when these
are to be played.
• Be sure to insert the HDMI cable all the way in.
Blu-ray/
DVD Disc player
Game consoler
Cable/Satellite
set-top box
a HDMI cable
