24
Connections

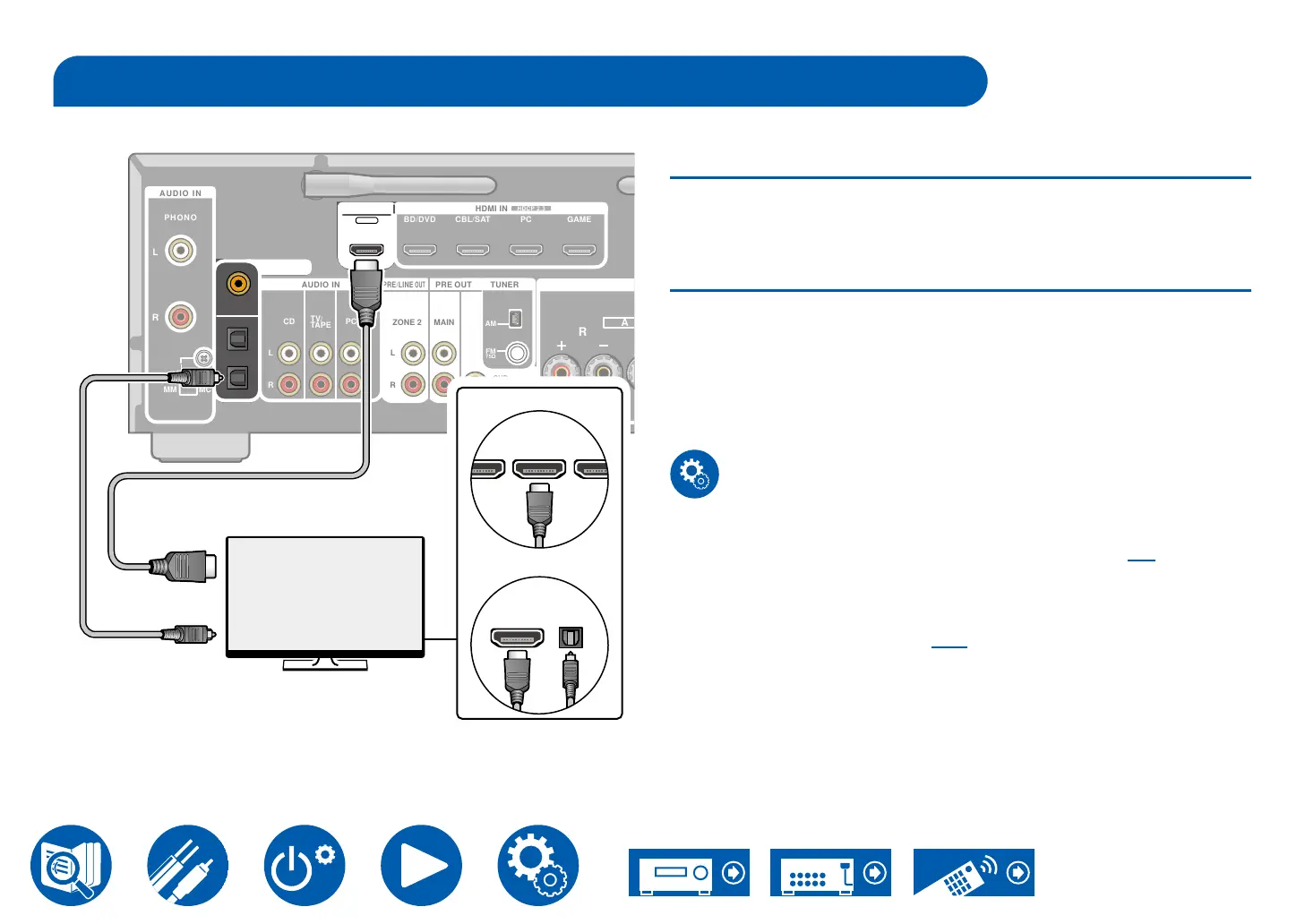

Connecting the TV
By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.
R
A
FM
75Ω
HDMI OUT HDMI IN
HDCP 2.3
BD/DVD CBL/SAT PC GAME
ARC
AUDIO IN
PHONO
L
R
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
PRE/LINE
OUT
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIFITAL IN
SUB-
WOOFER
AM
TUNER
L
R
L
R
b
a
DIGITAL
OPTICAL
OUT
To ARC TV
If the TV supports the ARC (Audio Return Channel) function(*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of
the TV for connection.
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function(*), connect
an HDMI cable and digital optical cable. If the TV does not have a DIGITAL
OPTICAL OUT jack, you can use an analog audio cable to connect with the
AUDIO IN TV/TAPE jack.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
Setup
• When not using the ARC function, press the SETUP button on the remote
controller, then set "2. Control" - "Audio Return Channel" ( →p80
(*)The ARC function transmit the audio signals of the TV via an HDMI cable, and
plays the audio of the TV on this unit. To check if the TV supports the ARC
function, refer to the instruction manual of the TV, etc.
ARC compatible audio format ( →p104)
TV
ARC TV
Non-ARC TV
a HDMI cable, b Digital optical cable
