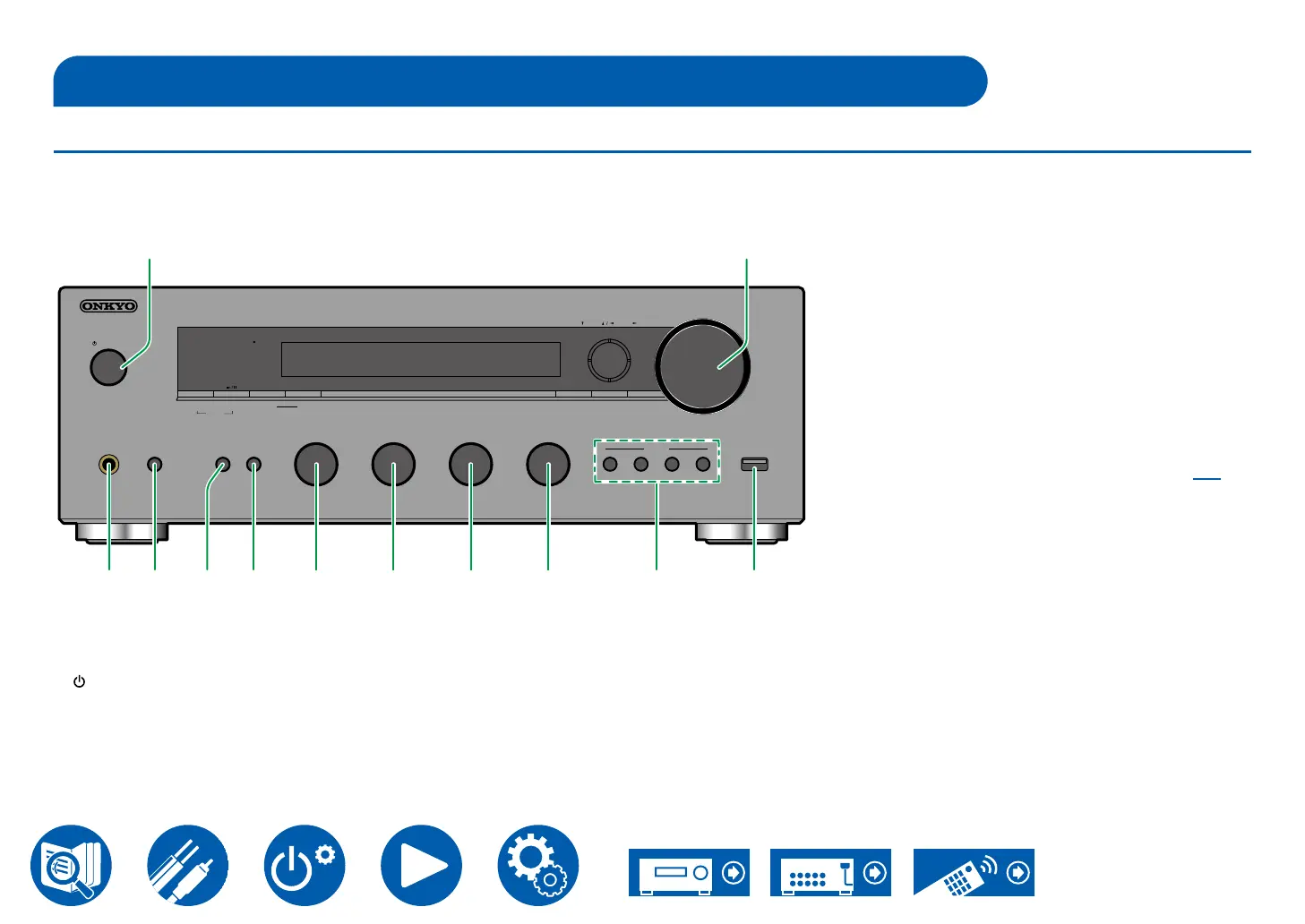

Front Panel
SPEAKER A/B
INPUT BASS TREBLL BALANCE
MEMORY TUNING MODE ZONE 2 OFF
PHONES DIMMER
CLEAR
MENU
ON/STANDBY
SETUP ENTER RETURN
1 2 3 4
MY INPUT
USB
VOLUME
TUNING PRESET
HYBRID STANDBY
PURE AUDIO
L R
- +- +
A B
C D E F G
8 9 J K
L
A ON/STANDBY button
B VOLUME dial
C PHONES jack: Connect headphones with a
D PURE AUDIO button/LED indicator: Switches
Pure Audio mode, which provides purer sound,
and “Treble” settings are disabled.
• The Pure Audio mode is canceled when the
multi-zone function is turned on.
E DIMMER button (North American, Middle East,
Australian and Asian models): Switches the
brightness of the display with three levels. It
RT/PTY button (European models): Used when
receiving stations transmitting text information.
F SPEAKER A/B buttons: Select the terminals to
output audio from between SPEAKERS A/B.
G INPUT dial: Switches the input to be played.
H BASS dial: Adjusts the bass.
I TREBLE dial: Adjusts the treble.
J BALANCE dial: Adjusts the balance of the
sounds output from the left and right speakers.
K MY INPUT buttons: You can register settings
conditions such as the current input selection or
listening mode, and then recall them. ( →p65)
L USB port: Connect a USB storage device to play
to USB devices with a USB cable.
