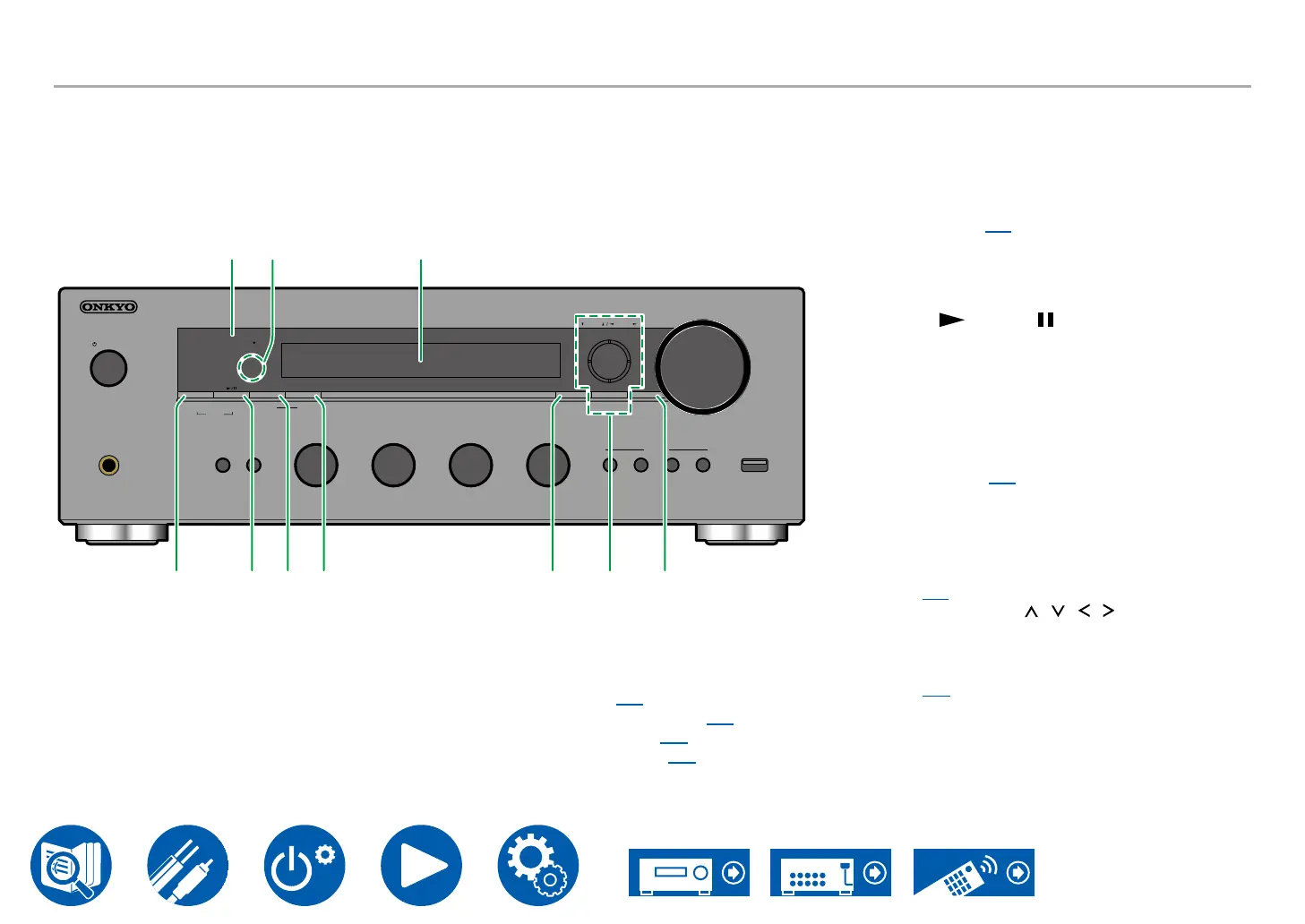

Front Panel
SPEAKER A/B
INPUT BASS TREBLL BALANCE
MEMORY TUNING MODE ZONE 2 OFF
PHONES DIMMER
L R
- +- +
CLEAR
MENU
ON/STANDBY
SETUP ENTER RETURN
1 2 3 4 USB
VOLUME
TUNING PRESET
HYBRID STANDBY
MY INPUT
M N O
P Q R S T U
V
M HYBRID STANDBY indicator: Lights up when
any of the following functions is working or
enabled in standby state of this unit. When this
indicator is lighting, the power consumption in
standby state increases, however, the increase
in power consumption is minimized by entering
the HYBRID STANDBY mode where only the
essential circuits operate
– HDMI CEC ( →p79)
– HDMI Standby Through ( →p79)
– Network Standby ( →p80)
– Bluetooth Wakeup ( →p80)
N Remote control sensor: Receives signals from
the remote controller.
• The reception range of the remote controller
is within a distance of approx. 16´/5 m, and
an angle of 20° in vertical direction and 30° to
right and left.
O Display ( →p12)
P MENU button: Used to display the menu.
MEMORY button (North American and
European models): Used to register AM/FM/DAB
radio stations.
Q Play (
)/Pause ( ) button: Used for play
operations when playing Music Server or USB.
TUNING MODE button (North American and
European models) : Switches tuning to an AM/
FM station between automatic tuning and manual
tuning, and allows you to select the order for
displaying DAB stations.
R ZONE 2 button: Controls the multi-zone
function. ( →p61)
S OFF button: Switches the multi-zone function
󰀨
T SETUP button: You can display advanced
setting items on the TV and the display to have
a more enjoyable experience with this unit.
( →p74)
U Cursor buttons ( / / / ) and ENTER
button: Select an item with the cursors, and

Use them to tune to stations when using TUNER
( →p44)
V RETURN button: Returns the display to the
previous state while setting.
