Square Shape Row Shape
The provided tube length is adequate for the Square Shape. For using the Row Shape, please
cut two of the tubes to 83 mm length.
NOTE:
It is important to always use the four air sources together.
Custom Vacuum Bracket

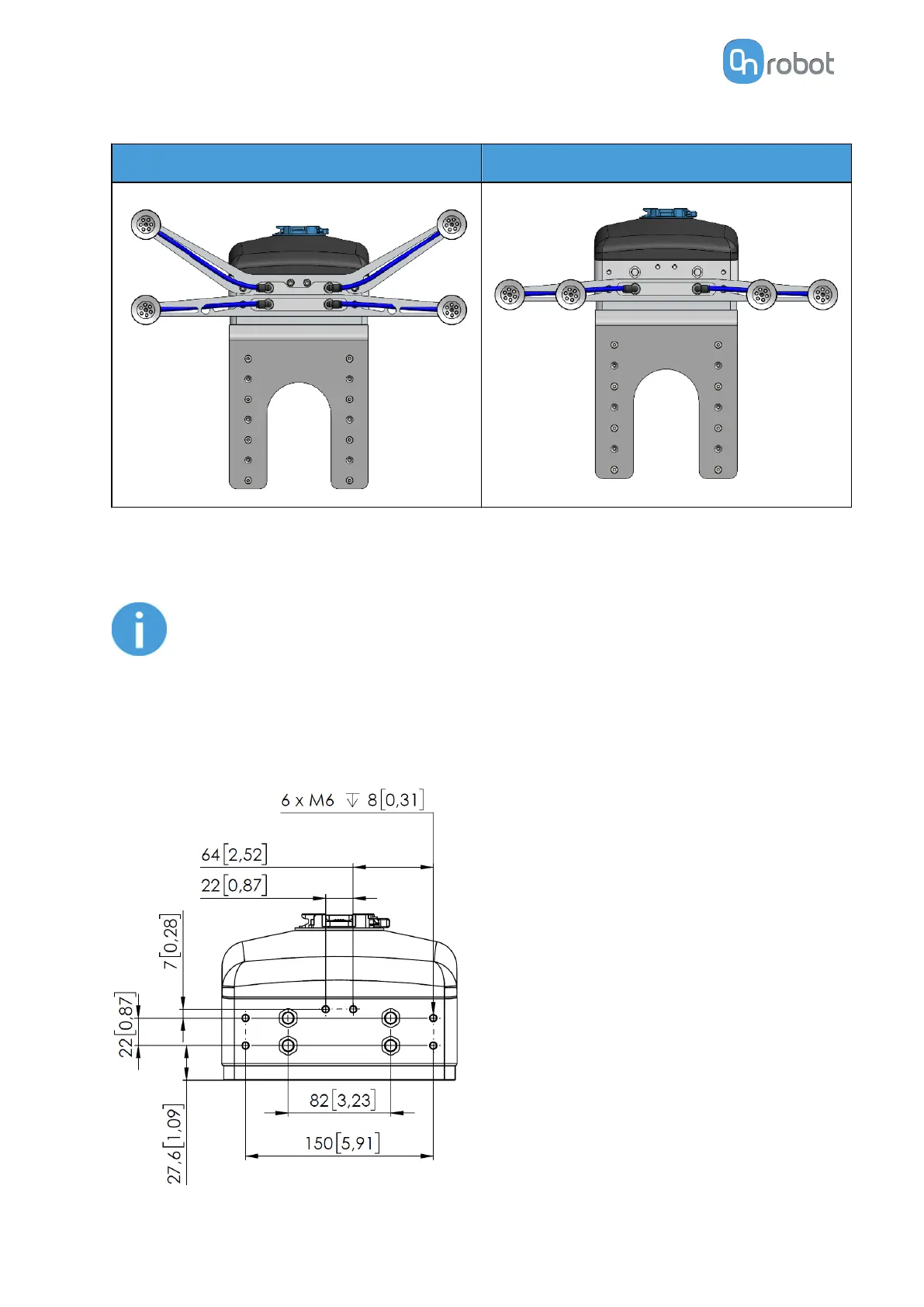

If a custom bracket is required, it can be made to fit the gripper according to the dimensions
(mm) [inch] shown below. Use M6x6mm screws to attach the fingers.
HARDWARE SPECIFICATION
66
