OnRobot 2FGP20 - Mountings; Quick Changer - Robot Side

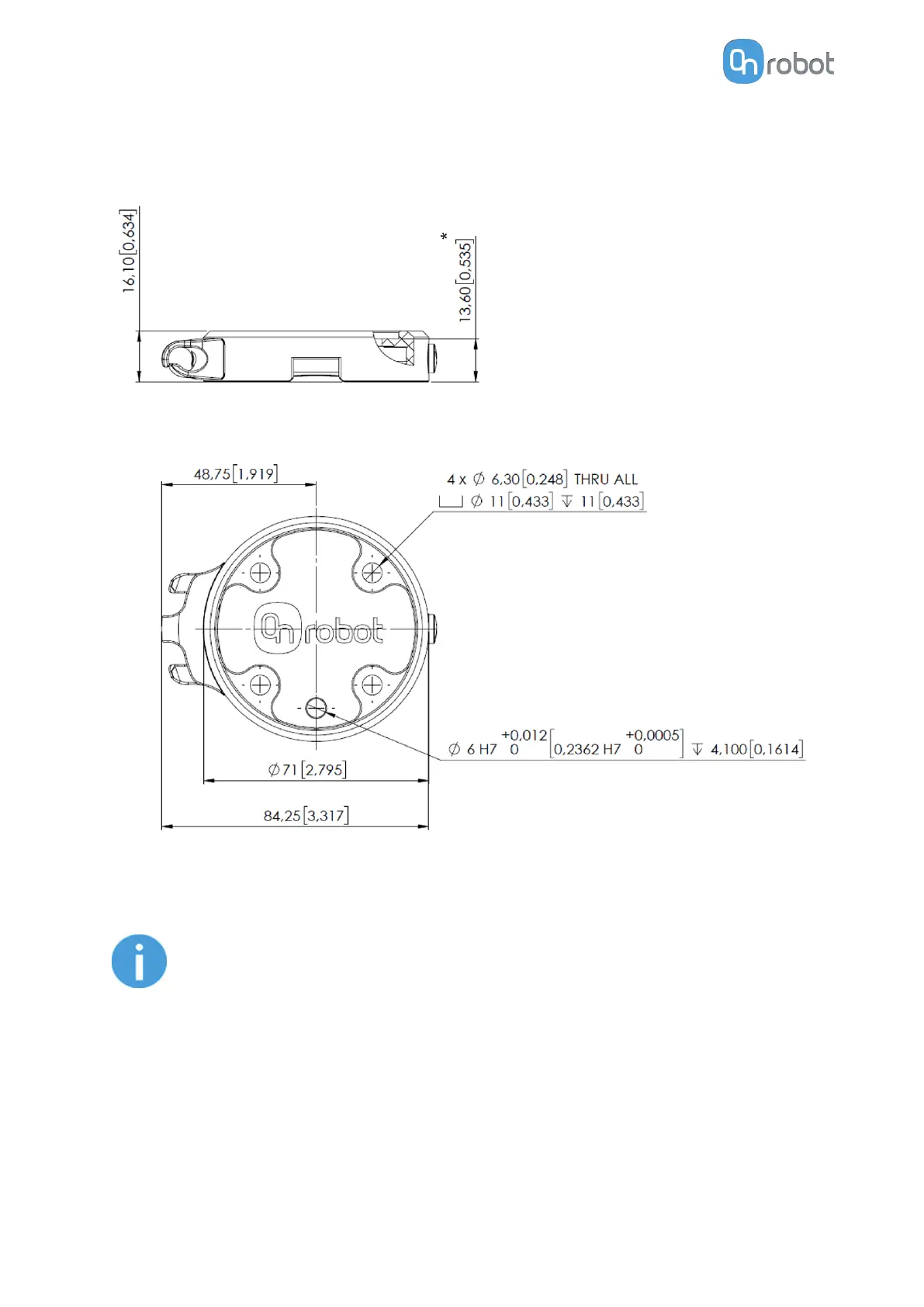

8.2.2. Mountings
8.2.2.1. Quick Changer - Robot Side
* Distance from Robot flange interface to OnRobot tool.
All dimensions are in mm and [inches].
NOTE:
The cable holder (on the left side) is only required with the long (5 meter)
cable.
HARDWARE SPECIFICATION
70
