o The Operational Status will change as the cellular modem finds a channel and connects to the network

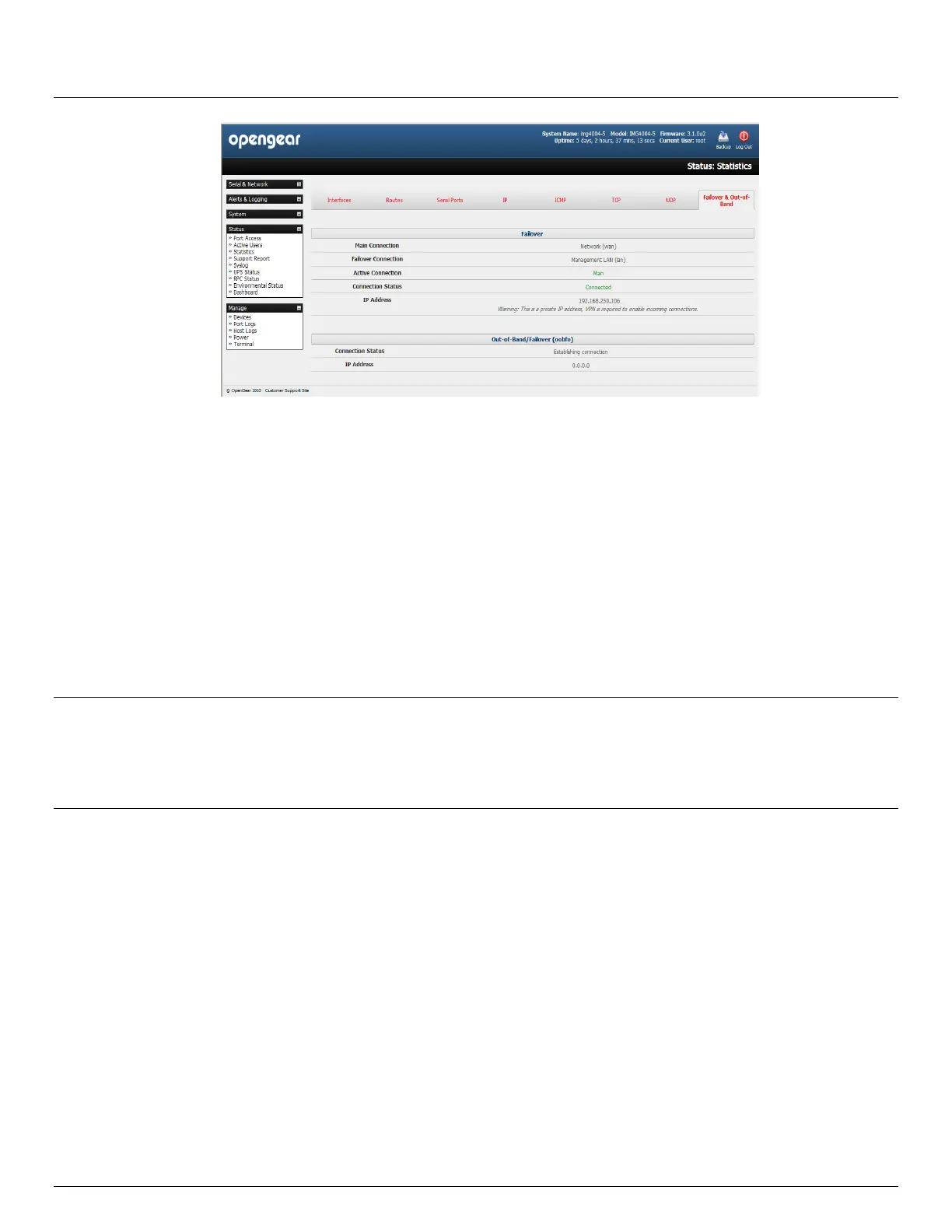

o The Failover & Out-of-Band screen will display information relating to a configured Failover/OoB interface
and the status of that connection. The IP Address of the Failover/ OoB interface will be presented in the
Failover & Out-of-Band screen once the Failover/OoB interface has been triggered
5.7.3 Cellular routing
Once you have configured carrier connection, the cellular modem can be configured to route traffic through the console
server. This requires setting up forwarding and masquerading - as detailed in Chapter 5.8.
5.7.4 Cellular CSD dial-in setup
Once you have configured carrier connection, the cellular modem can be configured to receive Circuit Switched
Data (CSD) calls.
Note: CSD is a legacy form of data transmission developed for the TDMA based mobile phone systems like GSM. CSD
uses a single radio time slot to deliver 9.6kb/s data transmission to the GSM Network and Switching
Subsystem where it could be connected through the equivalent of a normal modem to the Public Switched
Telephone Network (PSTN) allowing direct calls to any dial-up service. CSD is provided selectively by carriers
and it is important you receive a Data Terminating number as part of the mobile service your carrier provides. This
is the number which external modems will call to access the console server
 Select the Cellular Modem panel on the System: Dial menu
 Check Enable Dial-In and configure the Dial-In Settings
