Chapter 8: Power, Environmental & Digital I/O

188 Console Server & RIM Gateway User Manual

8.3.4 Environmental alerts

You can now set temperature, humidity and probe status alerts using Alerts & Logging: Alerts (refer Chapter 7)

8.3.5 Environmental status

You can monitor the current status of all any configured external EMDs and their sensors, and any internal or directly

attached sensors

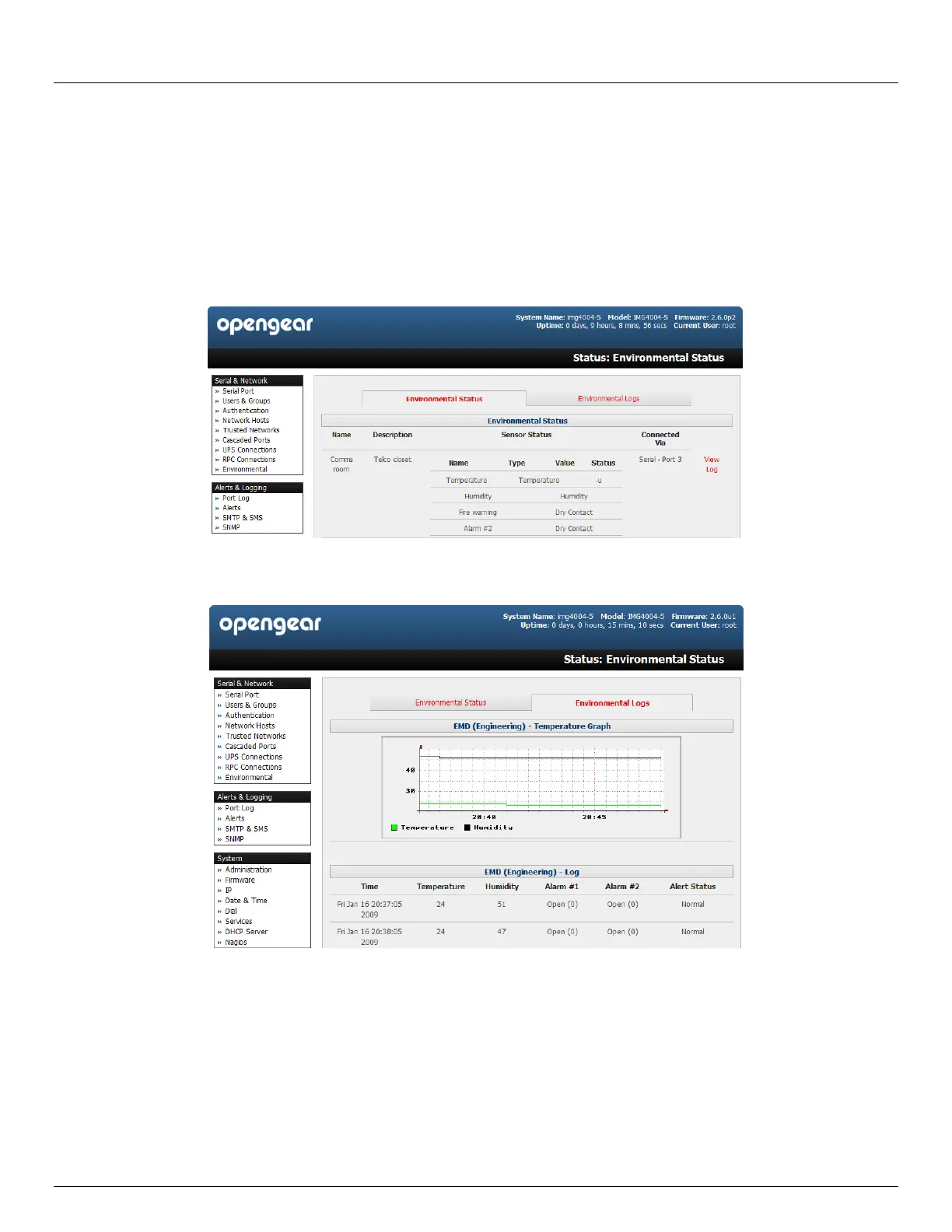

 Select the Status: Environmental Status menu and a table with the summary status of all connected EMD

hardware will be displayed

 Click on View Log or select the Environmental Logs menu and you will be presented with a table and graphical

plot of the log history of the select EMD
