Chapter 8: Power, Environmental & Digital I/O

180 Console Server & RIM Gateway User Manual

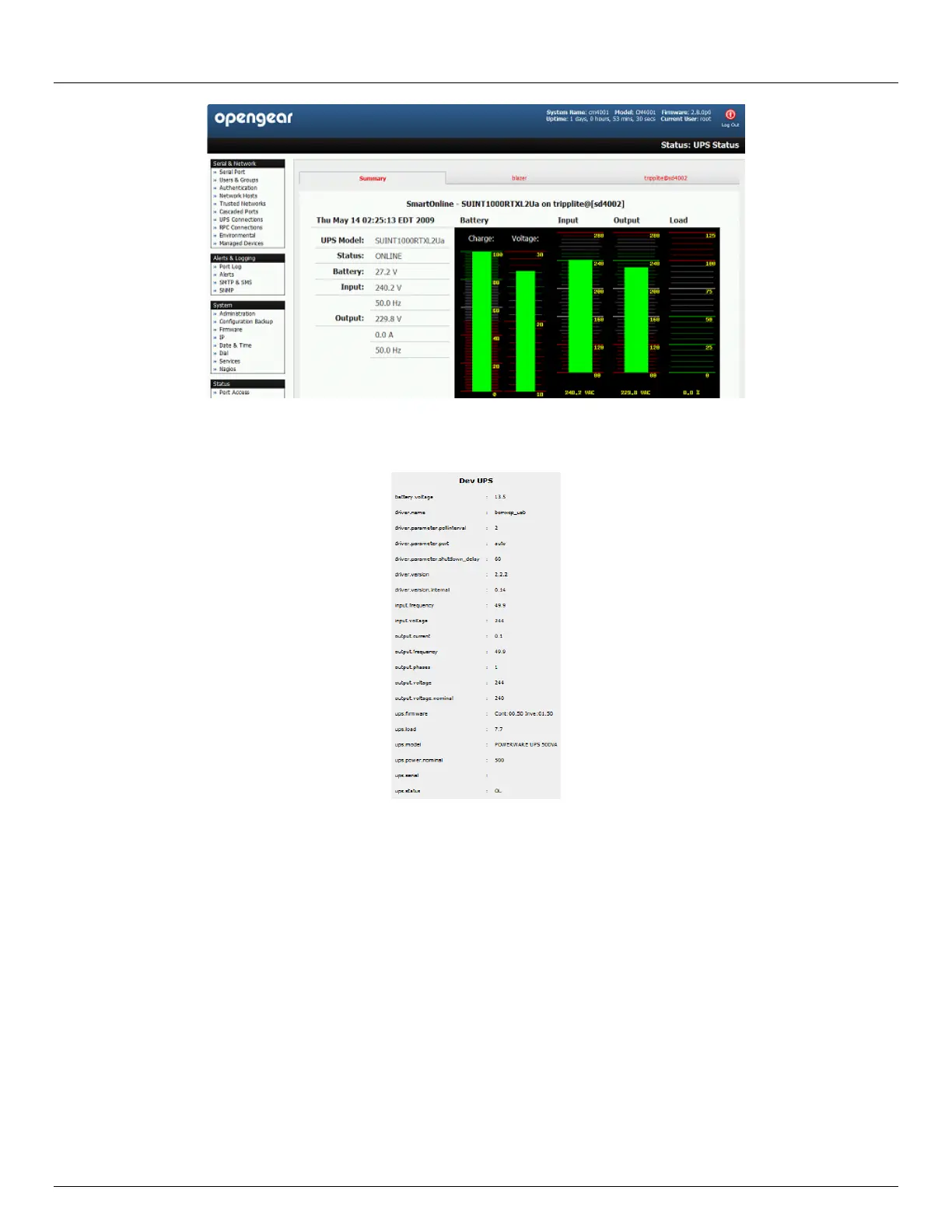

 Click on any particular All Data for any UPS System in the table for more status and configuration information on

the select UPS System

 Select UPS Logs and you will be presented with the log table of the load, battery charge level, temperature and

other status information from all the Managed and Monitored UPS systems. This information will be logged for all

UPSes which were configured with Log Status checked. The information is also presented graphically
