Console Server & Router User Manual 317
Connectors included in console server
The ACM5000 and ACM5500 families and the IM4208/16/32/48-02 and IM4216-34-02 have the Cisco pinout and ship

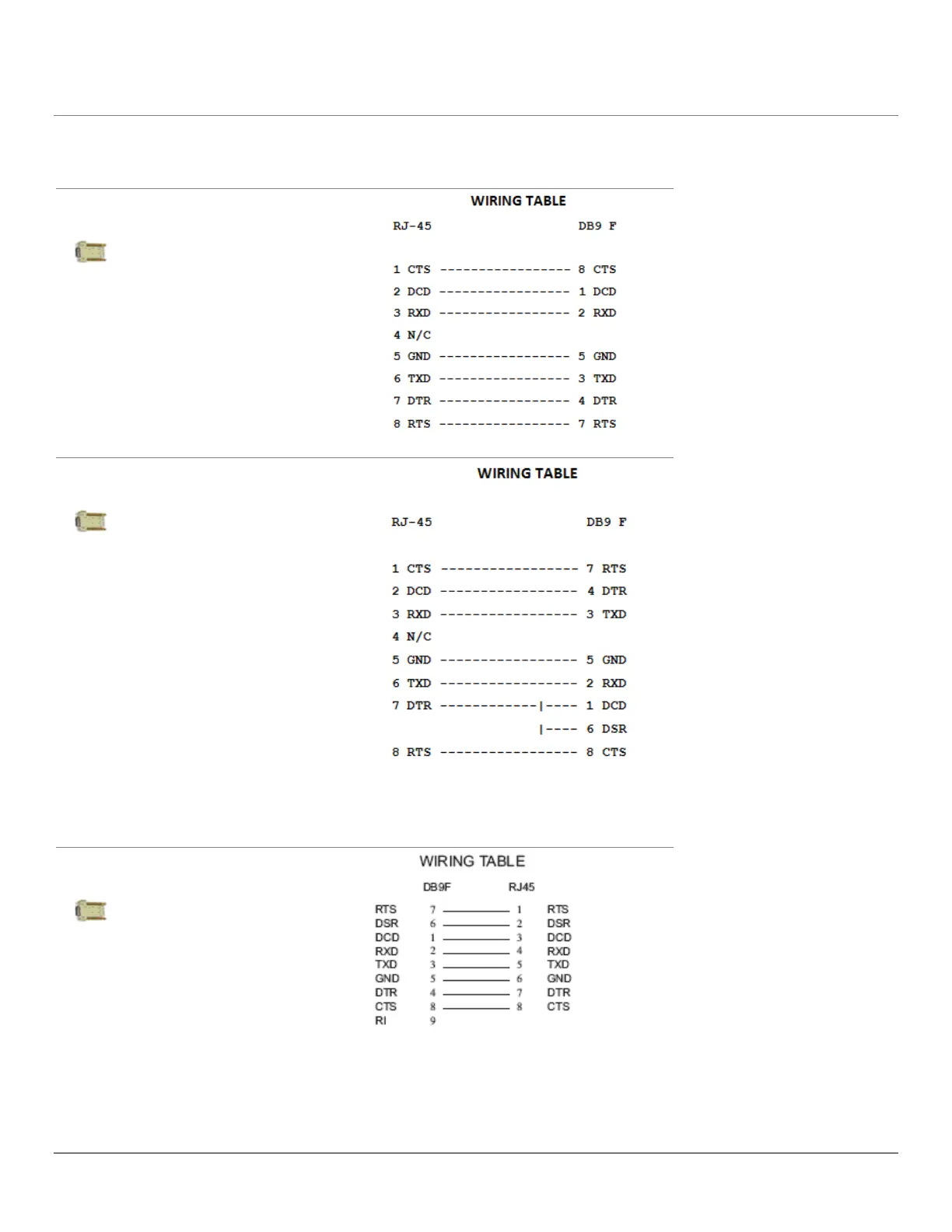

with “cross-over”/ “straight” RJ45-DB9 connectors:
DB9F-RJ45S straight
connector
DB9F-RJ45S cross-
over connector
The CM4008/4116/4148, IM4208/16/48 (Classic) and IM4004-5 all have the Opengear Classic pinout and ship with a
“cross-over” and a “straight” RJ45-DB9 connector for connecting to other vendor’s products: E
DB9F-RJ45S straight
connector
