Opticon OPI-3601 - 7.6. Pitch, Skew and Tilt; 7.7. Curvature

OPI-3601
Specifications Manual
13
7.6. Pitch, Skew and Tilt
Pitch : α = ±50°
Skew : β = ±50°
Tilt : γ = ±180°
<Conditions>
Bar Code Sample : 0.33 mm UPC specified in Chapter 7.1
Distance : 105 mm from the front edge of the scanner
Curvature : R = ∞
* For the pitch angle and tilt angle measurement, set the skew angle β = +15°

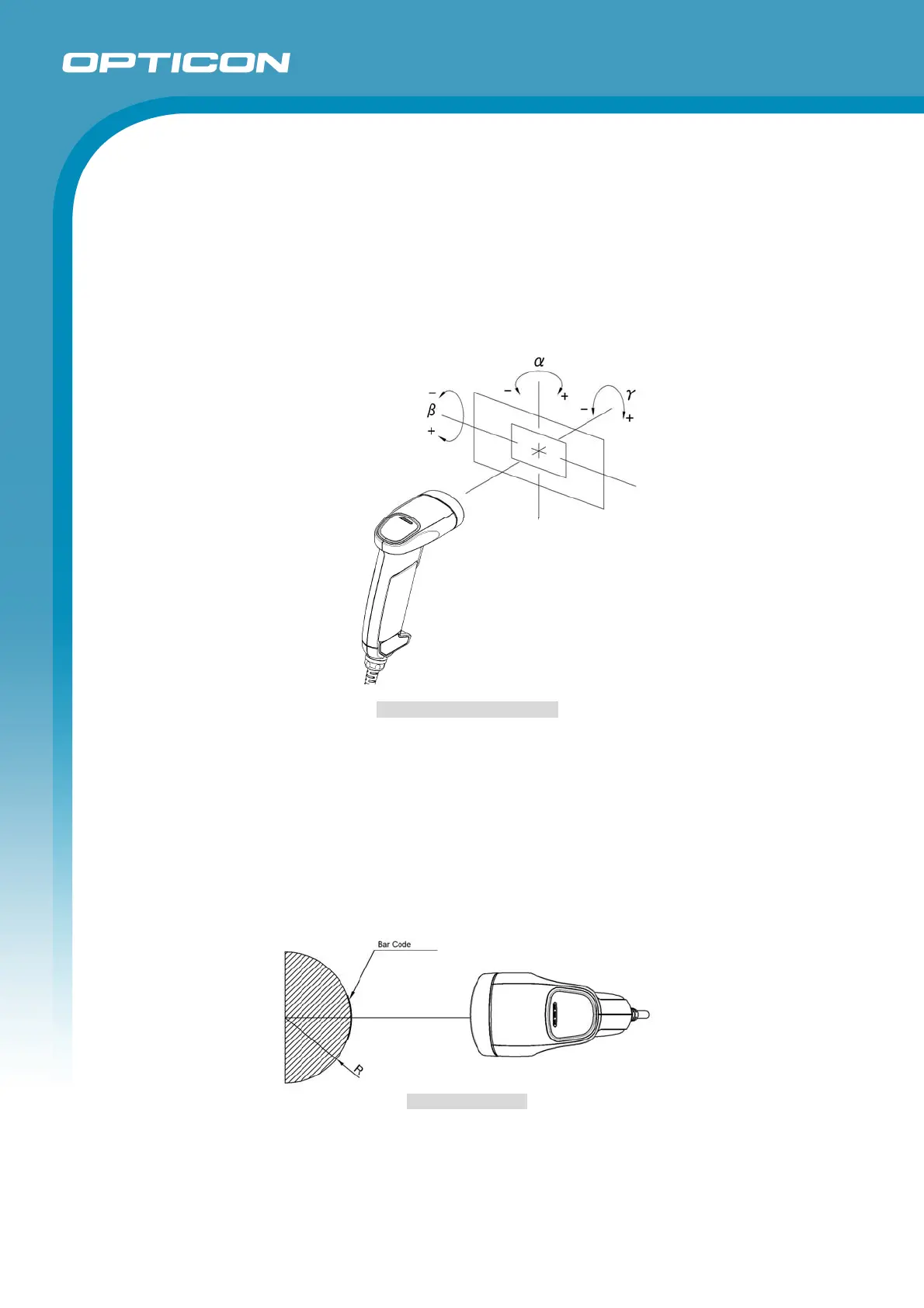

Figure 6: Pitch, Skew and Tilt
7.7. Curvature
0.33 mm 12-digit UPC : R ≧ 20 mm
0.15 mm 10-digit Codabar : R ≧ 16 mm
<Conditions>
Bar Code Sample : 0.33 mm UPC, 0.15 mm Codabar specified in Chapter 7.1
Distance : 85 mm from the front edge of the scanner
Angle
: α = 0°, β =＋15°, γ = 0°
Figure 7: Curvature
Note: Scanning may fail due to the specular reflection of LED illumination when the reflectivity is high.
