9.3. Wedge PS/2
9.3.1. Wedge PS/2 Straight Cable
Weight: approx. 75 g

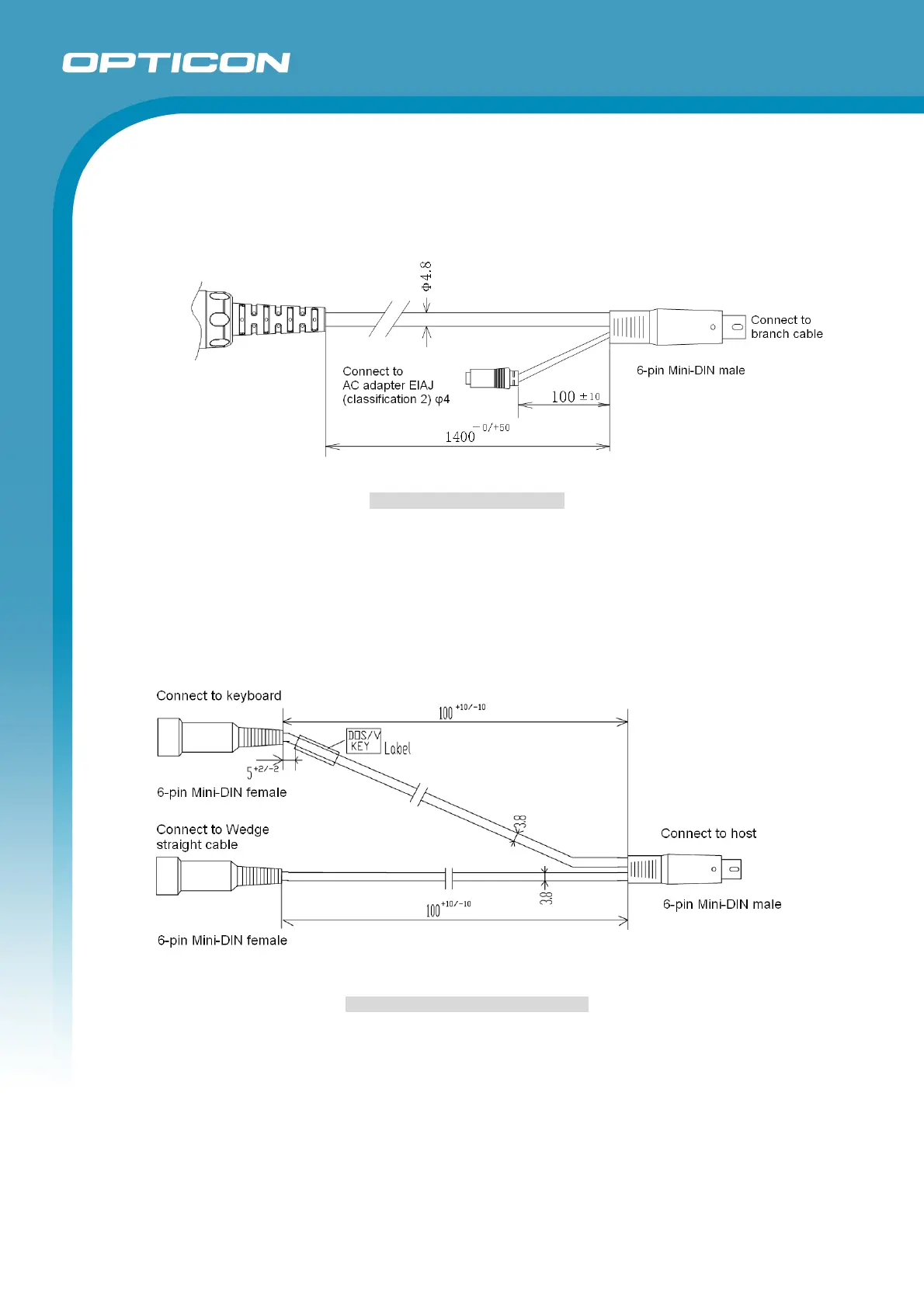

Figure 18: Cable (Wedge PS/2)
9.3.2. Wedge PS/2 Branch Cable
Weight: approx. 25 g
This cable is required when connecting both the scanner and the keyboard to the host.
Figure 19: Branch Cable (Wedge PS/2)
