OPI-3601
Specifications Manual
20
8.3.3.
Pin Assignment
Wedge PS/2 Branch Cable
Pin No. Signal Name
1 KEY DATA
2 N.C
3 GND
4 VCC
5 KEY CLK
6 N.C
Pin No. Signal Name
1 CPU DATA
2 N.C
3 GND
4 VCC
5 CPU CLK
6 N.C
Wedge PS/2 Interface Cable for the OPI-3601
Pin No. Signal Name
1 CPU DATA
2 KEY DATA
3 GND
4 VCC
5 CPU CLK
6 KEY CKL

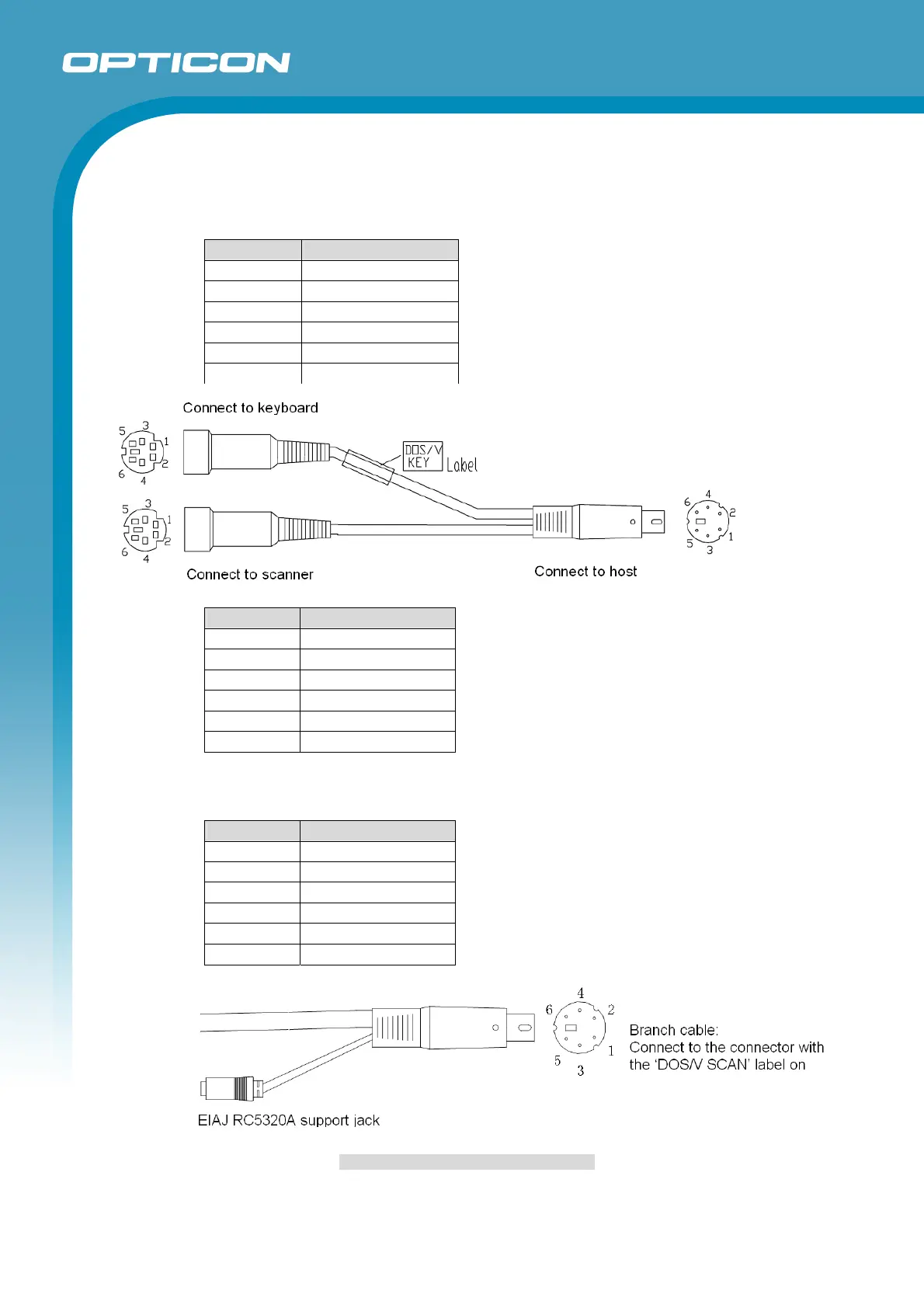

Figure 15: Pin Assignment (Wedge PS/2)
