Page 394 February 2008 version 1.3.1 S210G; S275G; S210G Vario; S275G Vario Metal belt saw
after wear
Saw arch
Changing the saw
belt
ATTENTION!
This metal belt saw was designed for use with
belts of the following dimensions
S 275 G; 2480 x 27 x 0.9 mm
S 210 G; 2080 x 20 x 0.9 mm
The use of other saw blades can cause infe-
rior sawing results.
 Place the saw arch in the upper position and close
the shut-off tap on the hydraulic cylinder.
 Remove the saw belt brush by unscrewing the lock-
screw.
 Remove the protective cover of the saw belt guide.
 Remove the protective cover from the saw arch.
 Loosen the tension of the saw belt by turning the
hand wheel anti-clockwise.
 “Adjusting the tension in the saw belt“ on page 35
 Carefully remove the old saw belt.
 Fit the new saw blade by inserting it first into the saw
belt guide.
 Check the running direction and toothing.
 “Direction of the saw teeth“ on page 21
 Place the saw belt on the two pulleys so that it is as
close as possible to the casing of the saw arch
 Tighten the saw belt.
 “Adjusting the tension in the saw belt“ on page
35.
 Run a check as described in
 “Checking“ on page
21.
 For fitting the components, proceed in reverse order.
 Perform a run test.
 Re-fit the protective covers.

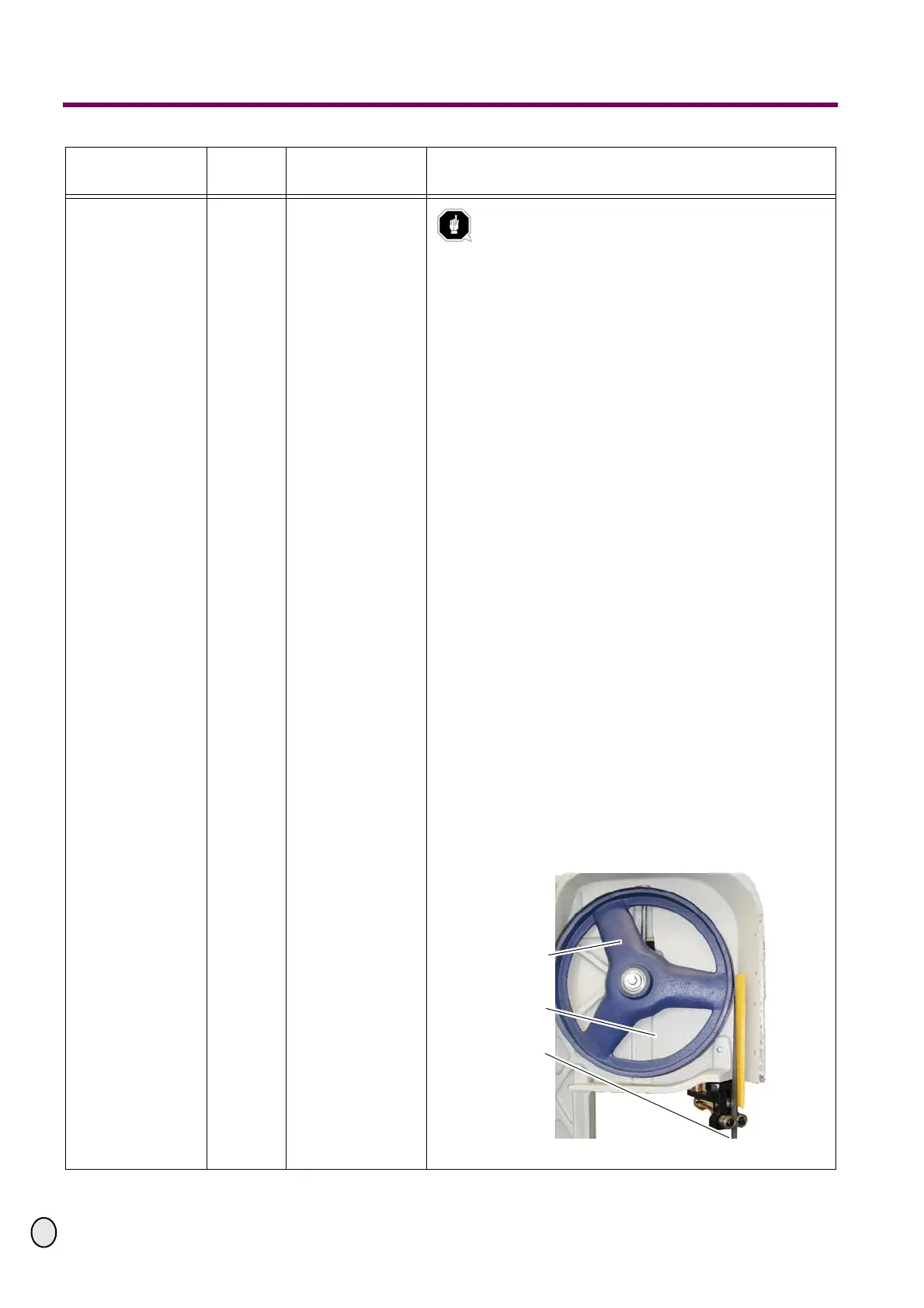

Illustr.6-5: Changing the saw belt
Intervals /
When?
Where? What? How?
Belt guide pulley
Saw arch casing
Saw belt
