optris CompactPlus Connect User Manual

CSvision 101-

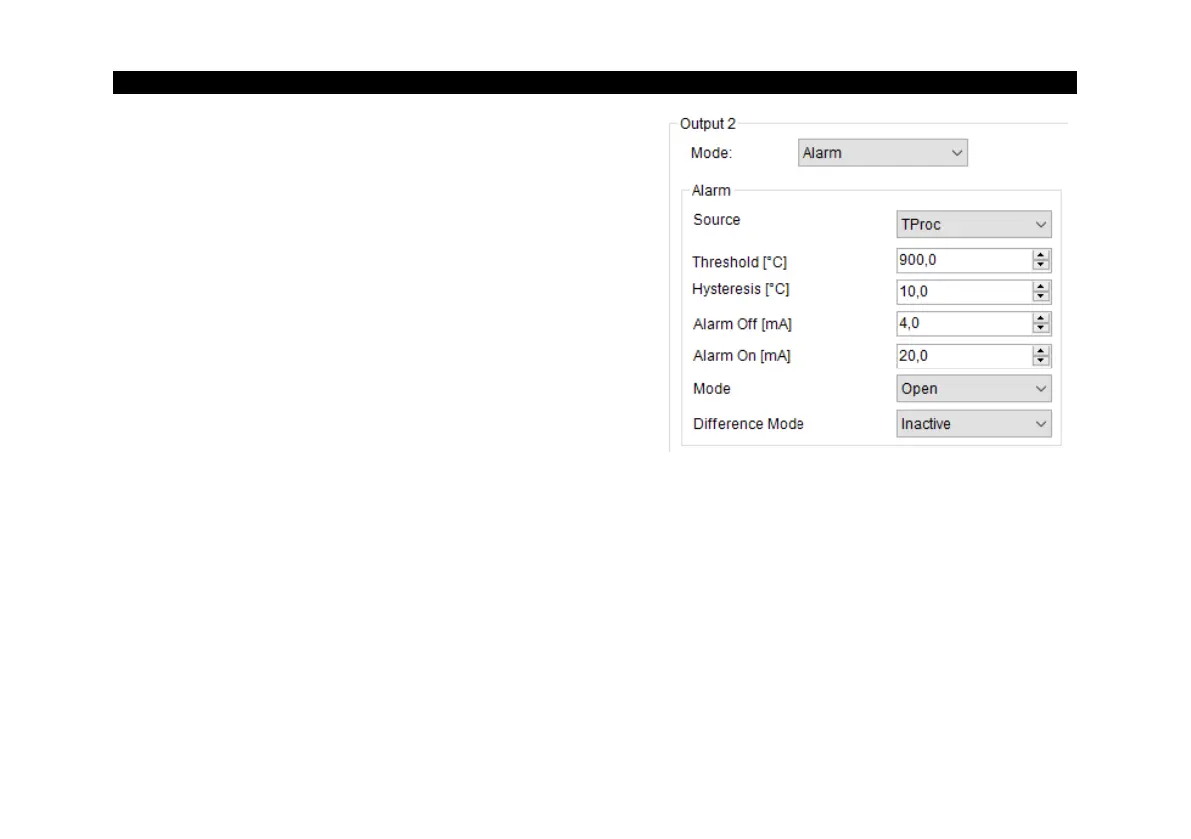

Alternatively, outputs 1 and 2 can be used as alarm
outputs. To do this, select the Alarm setting.
As source you can choose between T
Proc
, T
Ratio
, T1, T2,
Attenuation, T
Det
or T
Box
.
Under Threshold the threshold value for triggering the
alarm is defined.
Hysteresis: Setting the minimum hysteresis
Alarm Off [mA]: Value if no alarm
Alarm On [mA]: Value on alarm
Selecting Open/Closed under Mode defines the output as
High or Low alarm.
