optris CompactPlus Connect User Manual

-46 CTratio -
2.3.2. Failsafe
The pyrometer has a failsafe function that can be used in analog
mode.

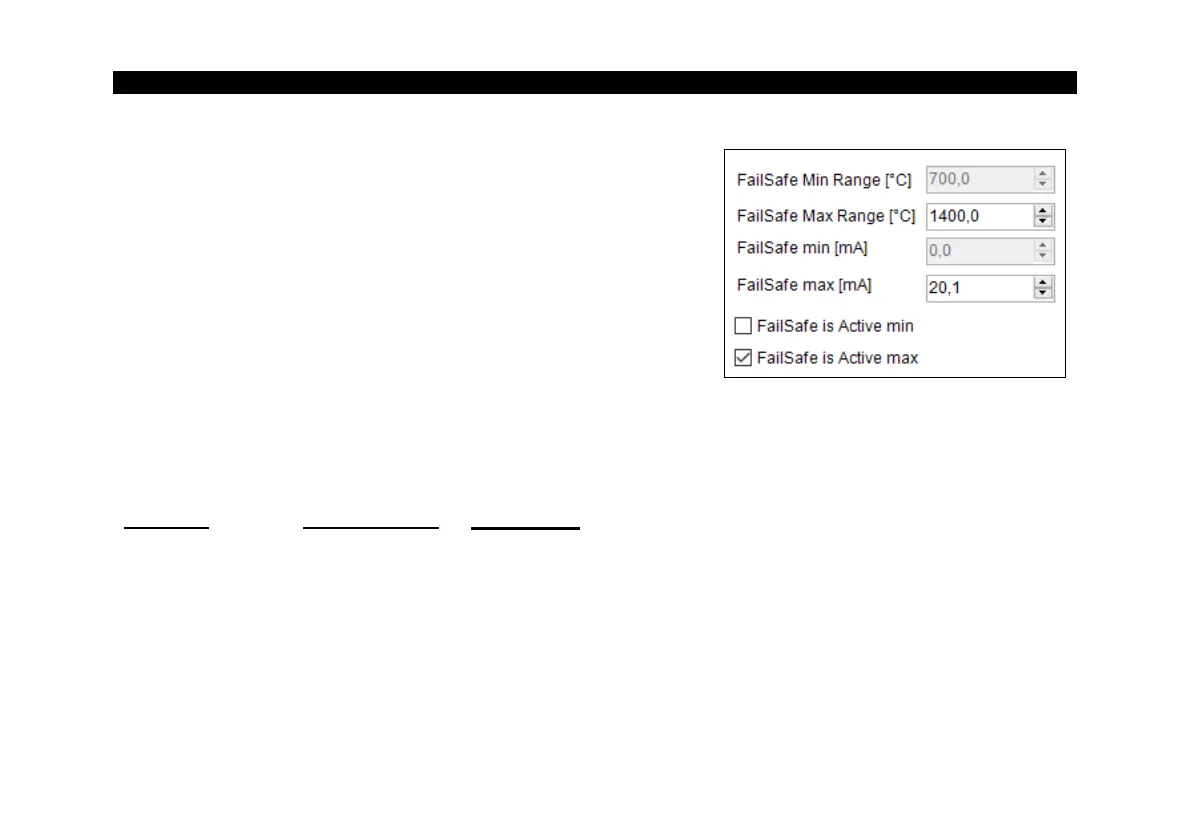

The range can be configured as desired. The settings for fail-safe
operation allow a defined level to be output at the analog output
depending on specified temperature limits.
Thus, a possible cable defect can be detected quickly.
2.4. Sensor Setup CTratio – I/O pins
The CTratio has three I/O pins which can be programmed as in- or outputs using the software. The following
options are available:
Function
I/O pin acts as
Description
Alarm
output (digital)
Open collector output/ definition as HIGH- or LOW alarm via norm. open/
norm. close options in software dialog.
Valid Low
input (digital)
The output follows the process temperature as long as there is a Low level
at the I/O pin. After discontinuation of the Low level the last value will be
held.
Valid High
input (digital)
The output follows the process temperature as long as there is a High
level at the I/O pin. After discontinuation of the High level the last value will
be held.
Hold Low-High
input (digital)
The last value will be held if there is a signal with a rising edge on the I/O
pin.
