Remove Disk Midplane Module
Chapter5 • Servicing FRUs 111

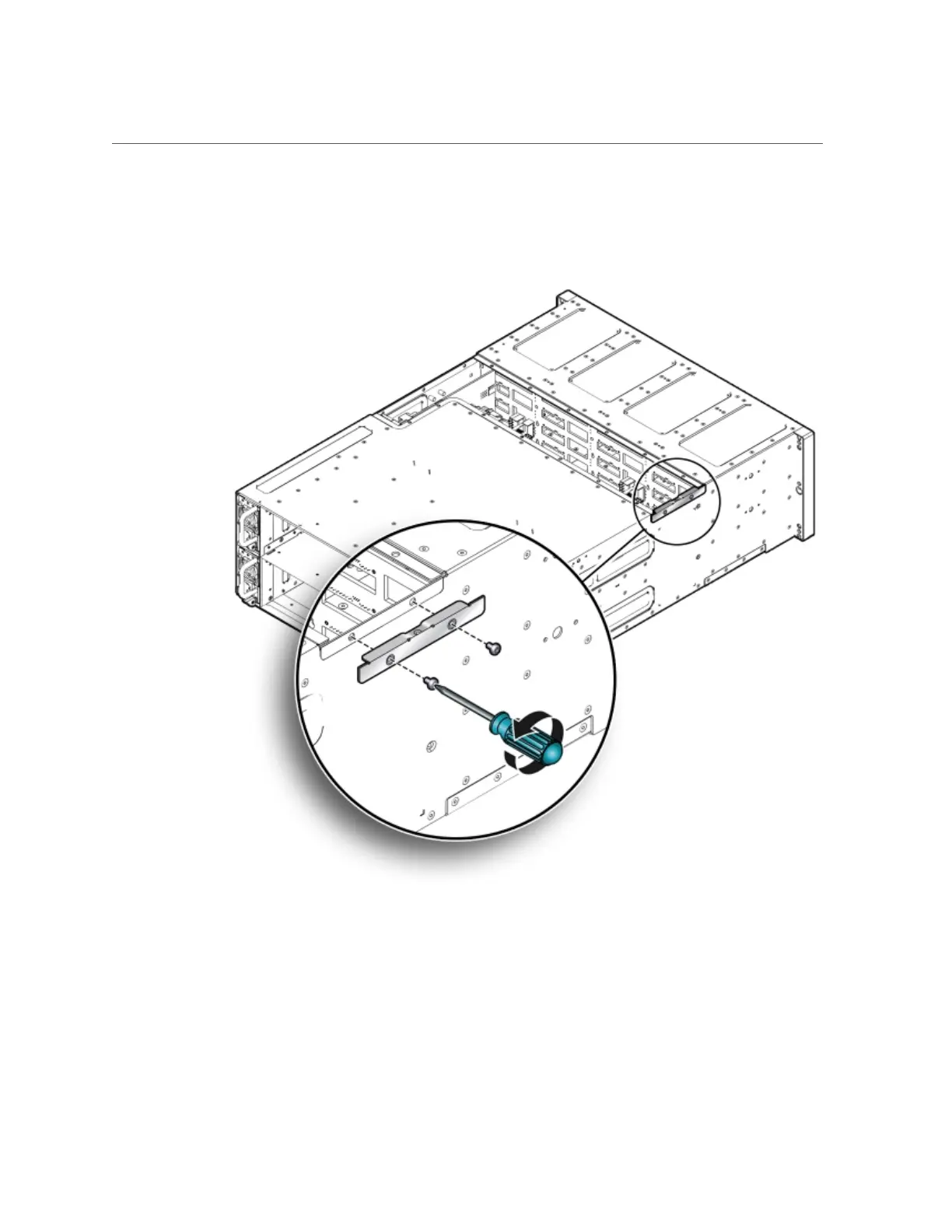

The side-wall cover is positioned under the middle section of the system top cover. Before you
can remove the side-wall cover, you must remove the middle section of the system top cover.
6.
Remove the power distribution board.
See “Remove Power Distribution Board” on page 105.
7.
Remove the disk midplane module.
a.
Before disconnecting the two front indicator module (FIM) cable connectors
from the disk midplane module, label them [1].
