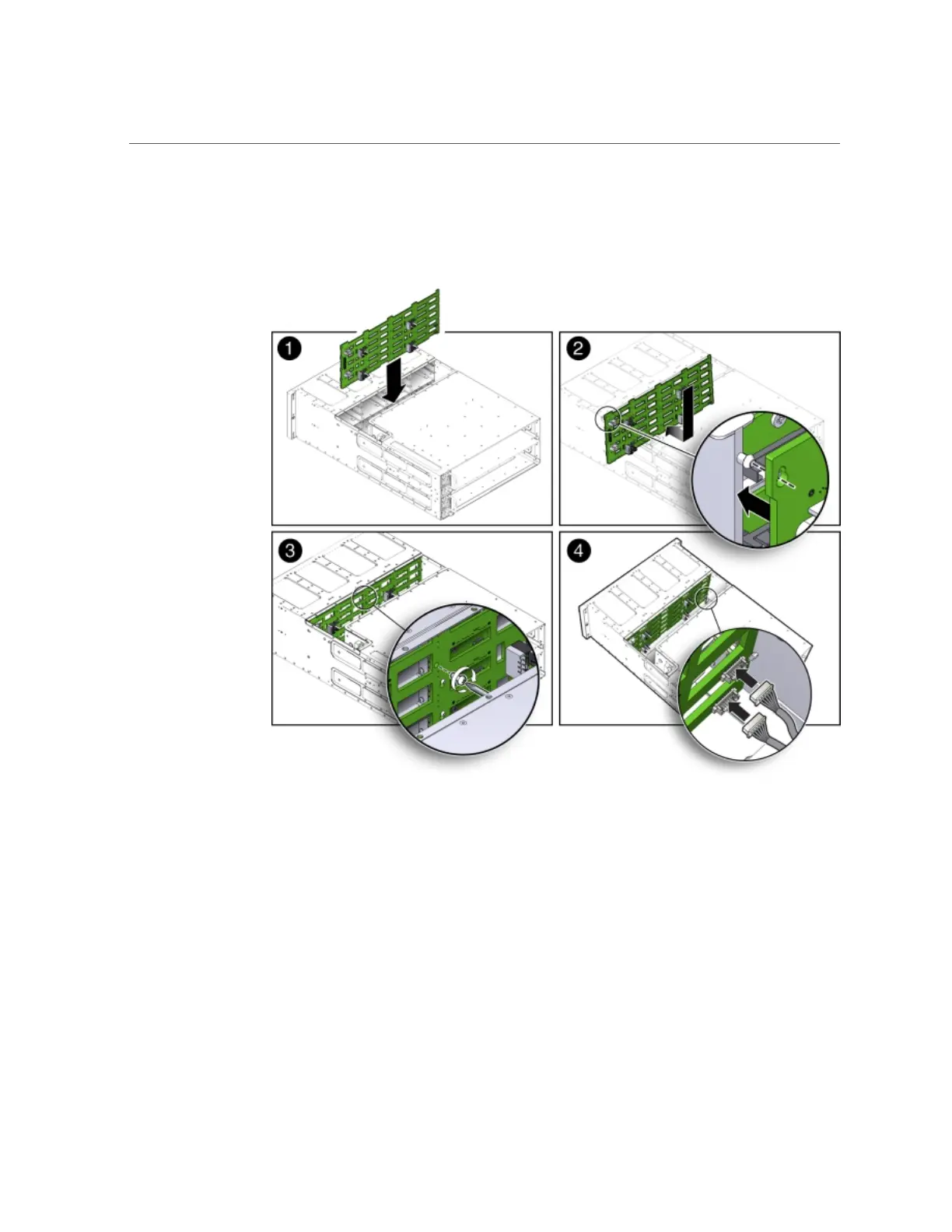

Install Disk Midplane Module
114 Oracle Database Appliance Service Manual • February 2016
Ensure that the FIM connectors are properly connected. The lower connector on the disk
midplane is for SN0 and the upper connector is for SN1.
2.
Install the power distribution board into the system.
See “Install Power Distribution Board” on page 107.
3.
Position the side-wall cover into the chassis and tighten the two captive Phillips
screws to secure the side-wall cover to the chassis.
4.
Install the middle section of the system's top cover.
Install and tighten the Phillips screws that secure the middle section of the top cover to the
system chassis.
5.
Reinstall all of the front storage drives.
See “Install Storage Drive” on page 51.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
