Install PCIe Card Cables for Primary HBA PCIe Card
Chapter5 • Servicing FRUs 125
To remove each cable connector, push the connector inward, press down on the connector
to release it, and pull the connector out.
Install PCIe Card Cables for Primary HBA PCIe Card
1.
Reconnect the PCIe card cables.
a.

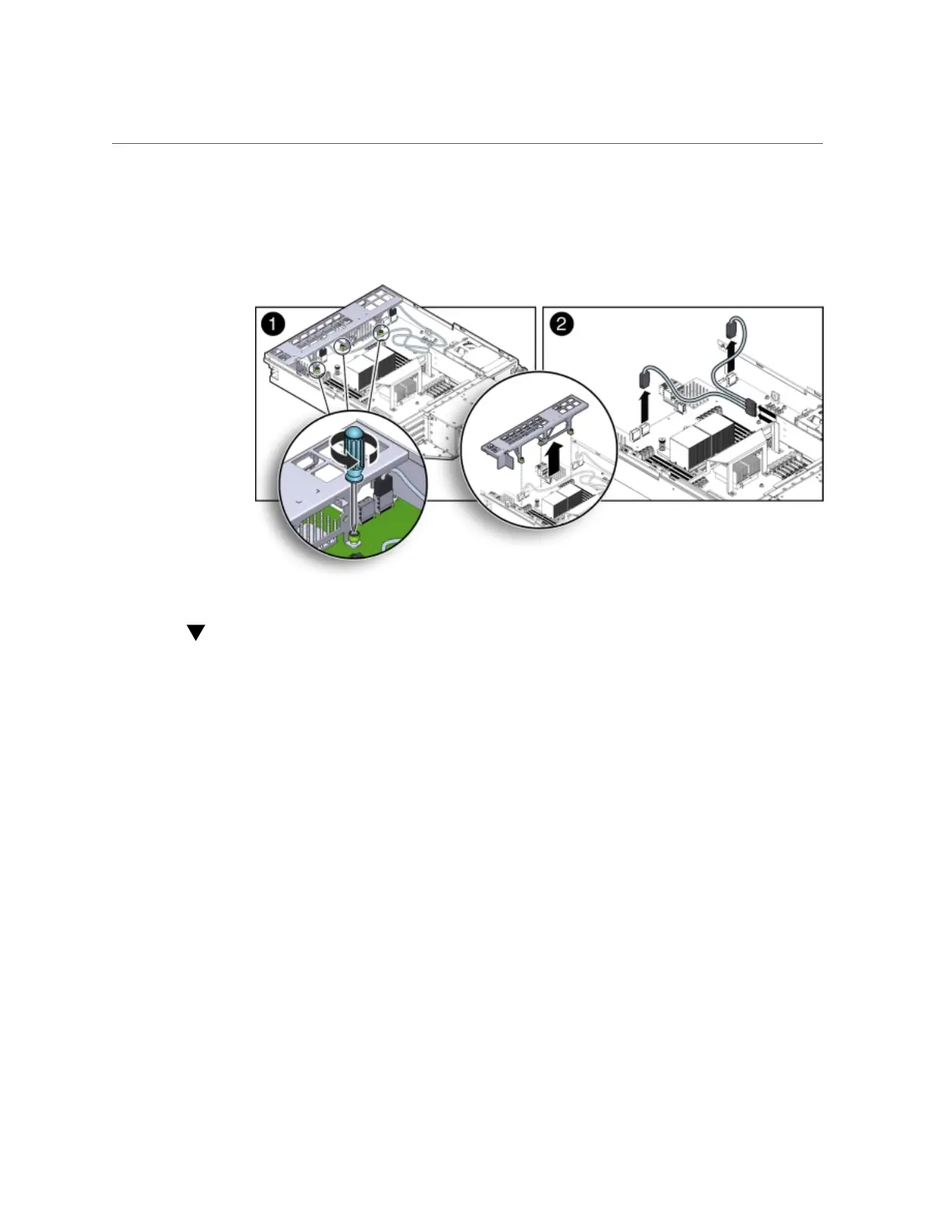

Reconnect the two PCIe card cables to the primary HBA PCIe card and the
connectors on the motherboard [2].
Notice that there are two sets of connectors on the motherboard. Be sure to connect the
cables to the connector on the right in each set (looking at the connectors from the rear of
the server node).
b.
Position the server node's front cover onto the server node and tighten
the three green, captive Phillips screws that secure the server node's front
cover to the motherboard [1].
2.
Return the server node to operation.
a.
Install the server node top cover.
See “Installing the Server Node Top Cover” on page 139.
b.
Install the server node into the system.
See “Installing a Server Node Into the System Chassis” on page 140.
