Install PCIe Card Cables for Secondary HBA PCIe Card
Chapter5 • Servicing FRUs 127

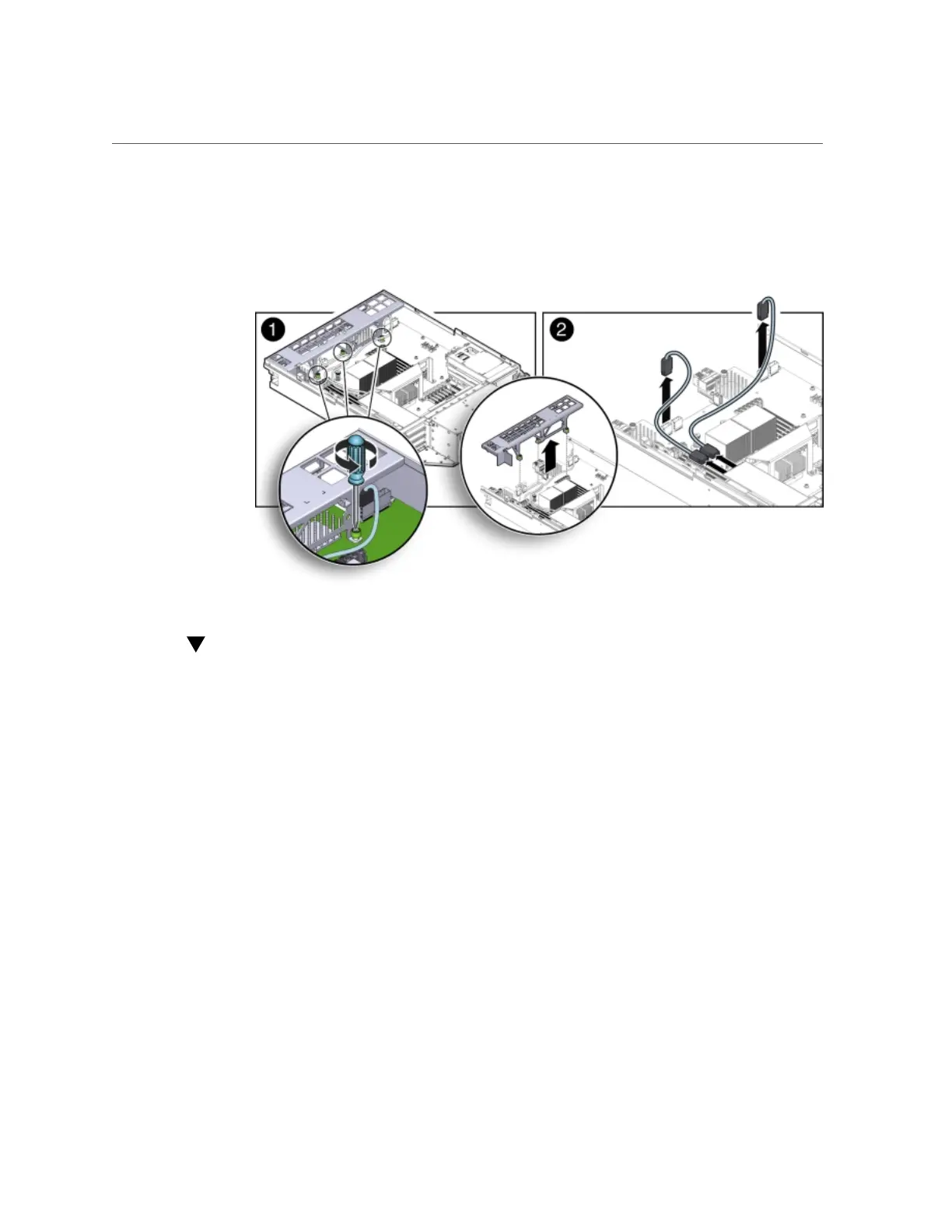

To remove each cable connector, push the connector inward, press down on the connector
to release it, and pull the connector out.
Install PCIe Card Cables for Secondary HBA PCIe Card
1.
Reconnect the PCIe card cables.
a.
Reconnect the two PCIe card cables between to the secondary PCIe card
and the connectors on the motherboard [2].
The Secondary HBA PCIe Card sits in the top slot on the PCIe riser (PCIe slot 2)
Notice that there are two sets of connectors on the motherboard. Be sure to connect the
cables to connector on the left in each set (looking at the connectors from the rear of the
server node).
b.
Position the server node's front cover onto the server node and tighten
the three green, captive Phillips screws that secure the server node's front
cover to the motherboard [1].
2.
Return the server node to operation.
a.
Install the server node top cover.
See “Installing the Server Node Top Cover” on page 139.
