Install SAS Expander Cable
Chapter5 • Servicing FRUs 129
b.

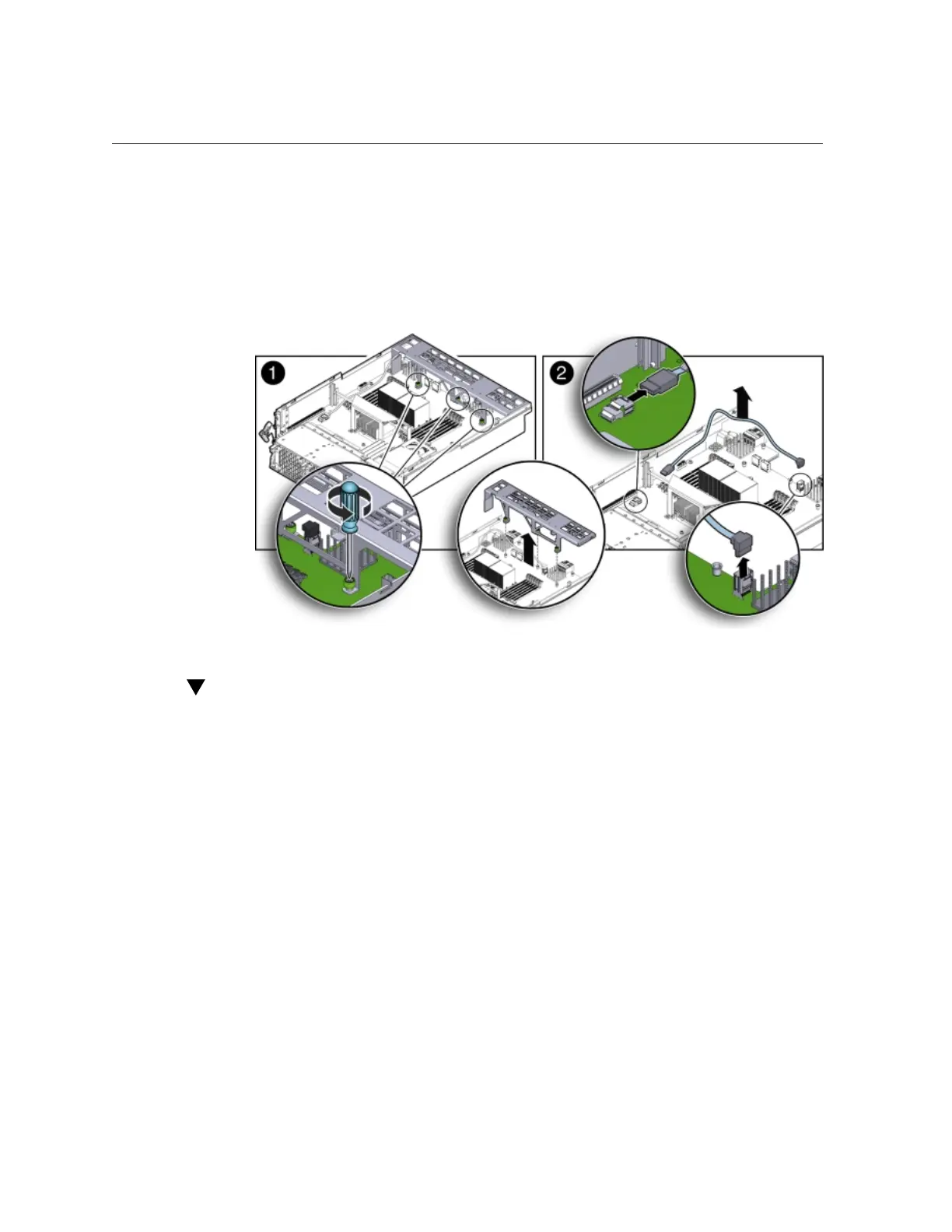

Disconnect both cable connectors from the motherboard and remove the
cable [2].
Push the connector inward, press down on the connector to release it, and pull the
connector out.
Install SAS Expander Cable
1.
Reconnect the SAS expander cable.
a.
Reconnect the SAS expander cable connectors to the motherboard [2].
b.
Position the server node's front cover onto the server node and tighten
the three green, captive Phillips screws that secure the server node's front
cover to the motherboard [1].
2.
Return the server node to operation.
a.
Install the PCIe riser.
See “Install PCIe Riser in Server Nodes” on page 74.
b.
Install the server node top cover.
See “Installing the Server Node Top Cover” on page 139.
