Remove Faulty DIMMs
Chapter4 • Servicing CRUs That Require Server Node Power Off 65

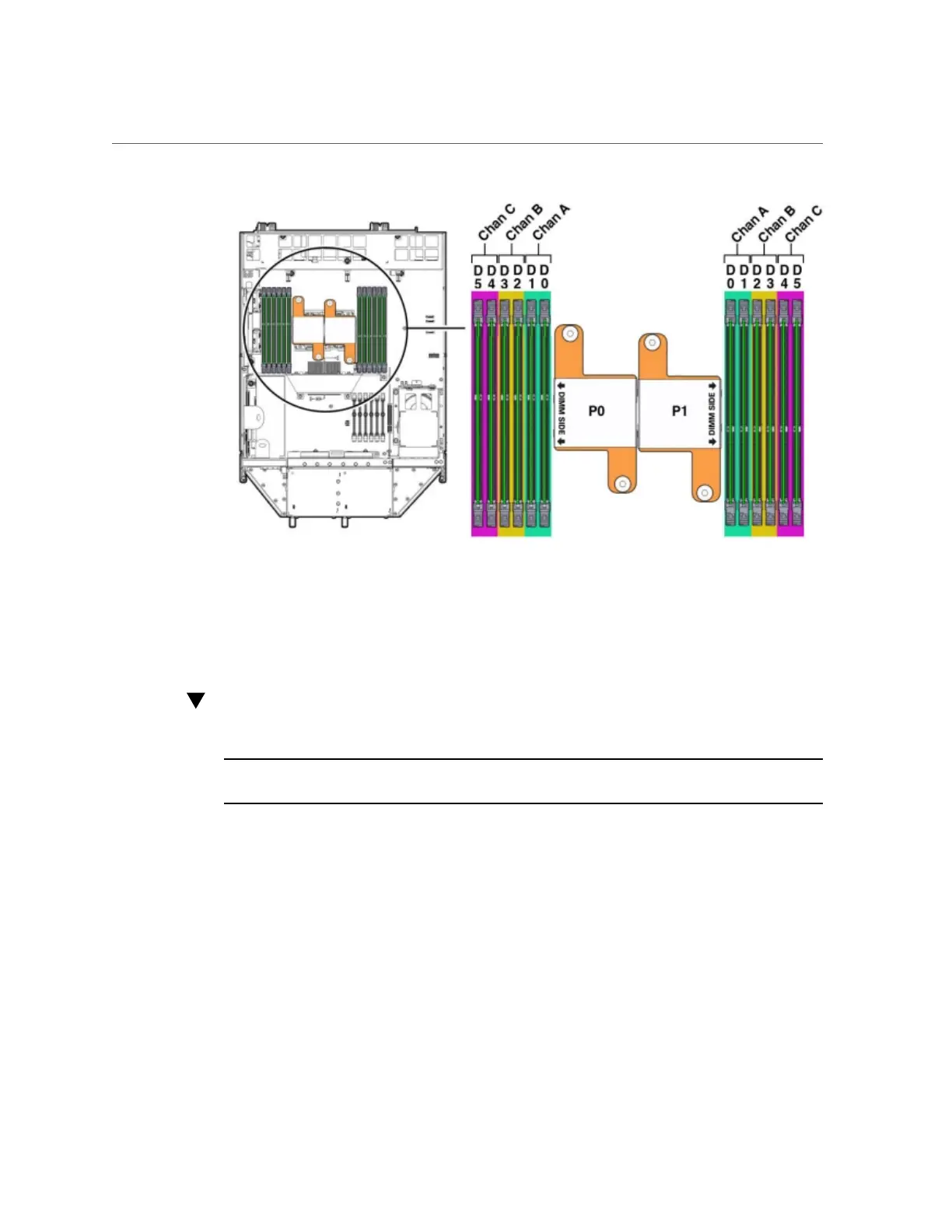

Each processor socket supports three independent memory channels labeled channel A, B,
and C, where channel A is closest to the processor socket. Each channel supports two DIMM
slots, is controlled by an independent memory controller, and operates independent of the other
channels.
Remove Faulty DIMMs
Note - The DDR3 memory modules (DIMMs) are customer-replaceable units (CRUs) and do
not require an Oracle-qualified service person for replacement.
1.
Prepare the server node for service.
a.
Attach an antistatic wrist strap.
See “Performing Electrostatic Discharge and Antistatic Prevention Measures” on page 34.
b.
Remove the server node from the system.
Power is removed from the server node when you remove it from the system. See
“Removing Server Nodes From the System Chassis” on page 34.
c.
Remove the server node top cover.
See “Removing the Server Node Top Cover” on page 35.
