Install PCIe Card in PCIe Riser
Chapter4 • Servicing CRUs That Require Server Node Power Off 77
To disconnect a cable from the PCIe card, press the latch, push in toward the connector, and
then pull out to remove the cable.
Note the location of all cables for reinstallation later.
5.
Remove the PCIe riser.
See “Remove PCIe Riser From Server Nodes” on page 72.
6.

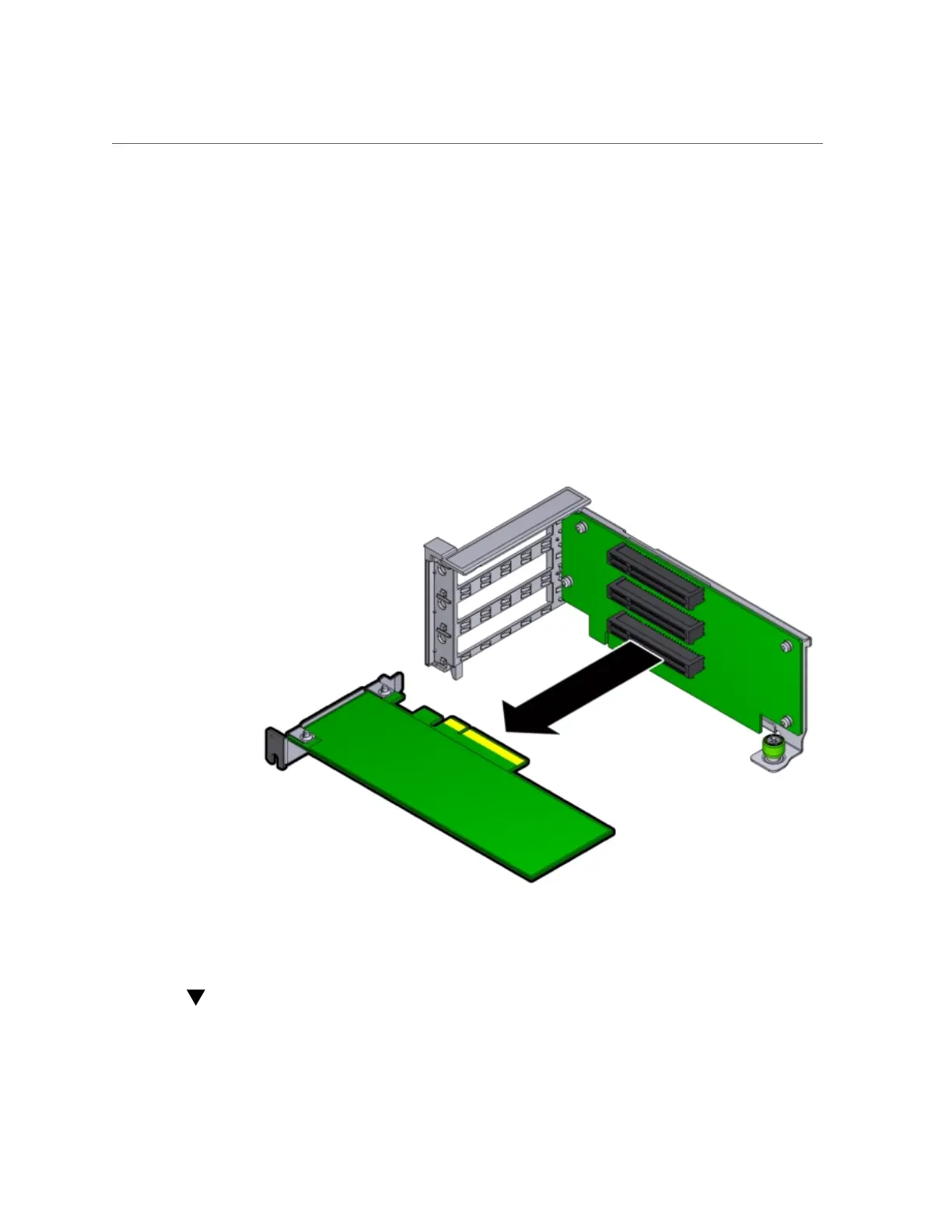

Remove the PCIe card from the riser.
a.
Carefully disconnect the PCIe card from the riser connector and remove it
from the riser board connector.
b.
Place the PCIe card on an antistatic mat.
Install PCIe Card in PCIe Riser
1.
Unpack the replacement PCIe card and place iton an antistatic mat.
