MySets and Tools
55

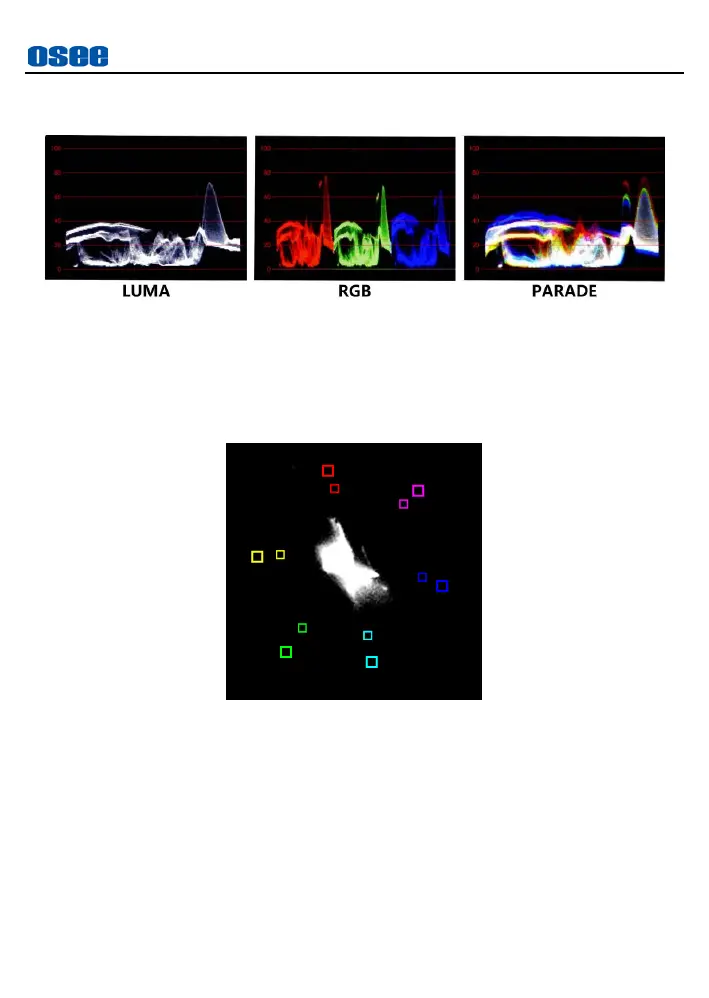

waveform as LUMA, RGB, Parade, as shown in Figure 6.1-9:
Figure 6.1-9 LUMA and RGB and PARADE Waveform
4. Vector
A vectorscope contains markings that indicate the degree of hue and
saturation in an image.
Figure 6.1-10 Vector
5. Histogram
Histogram assists in judging the distribution of luminance in an
image.
Histogram Type
Set
Histogram
Style
item as LUMA or RGB, these two histogram
types are as shown in Figure 6.1-11:
