MySets and Tools
63

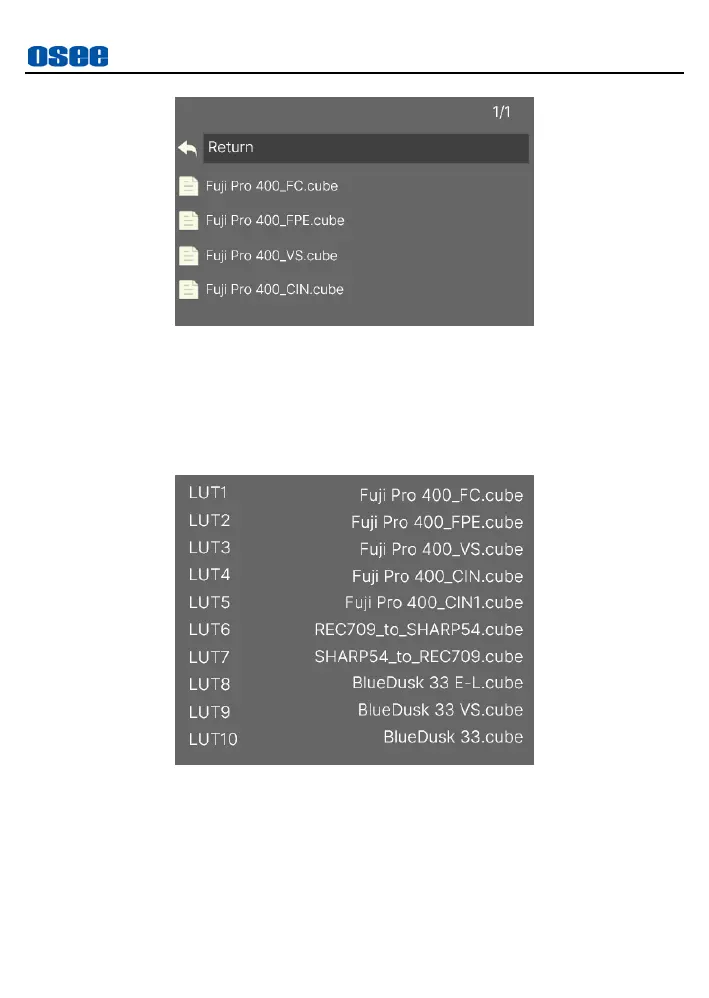

Figure 6.1-21 Calibration USER LUT Directory
It will prompt file write complete after file loading. Then, you can see
the profile name is on the left side of the current LUT ID in the list.
You can load up to 10 USER LUTs into the device, for example as
shown in Figure 6.1-22.
Figure 6.1-22 User LUT List
Second, apply USER LUT in the tool. Select and enable a Look tool
in a MySet, and select
ID
item to your designated, the LUT name will
be displayed in
USER LUT NAME
in gray, as shown in Figure 6.1-23:
