§ Installation procedures #4
7. Install backrest cover
Referring to <Figure 07>, align the heads of 4
bolts for the backrest cover (F) with the holes (b)
of the backrest seat (E), and push the bolts down
to insert them into the holes.
8. Install headrest
As shown in <Figure 08>, put the headrest
assembly into the groove on the sliding rail of the
backrest bracket (D) mounted in Step 5.
※ Difference in steps between backrest
cover and the backrest seat can be adjusted
by fastening the bolt.

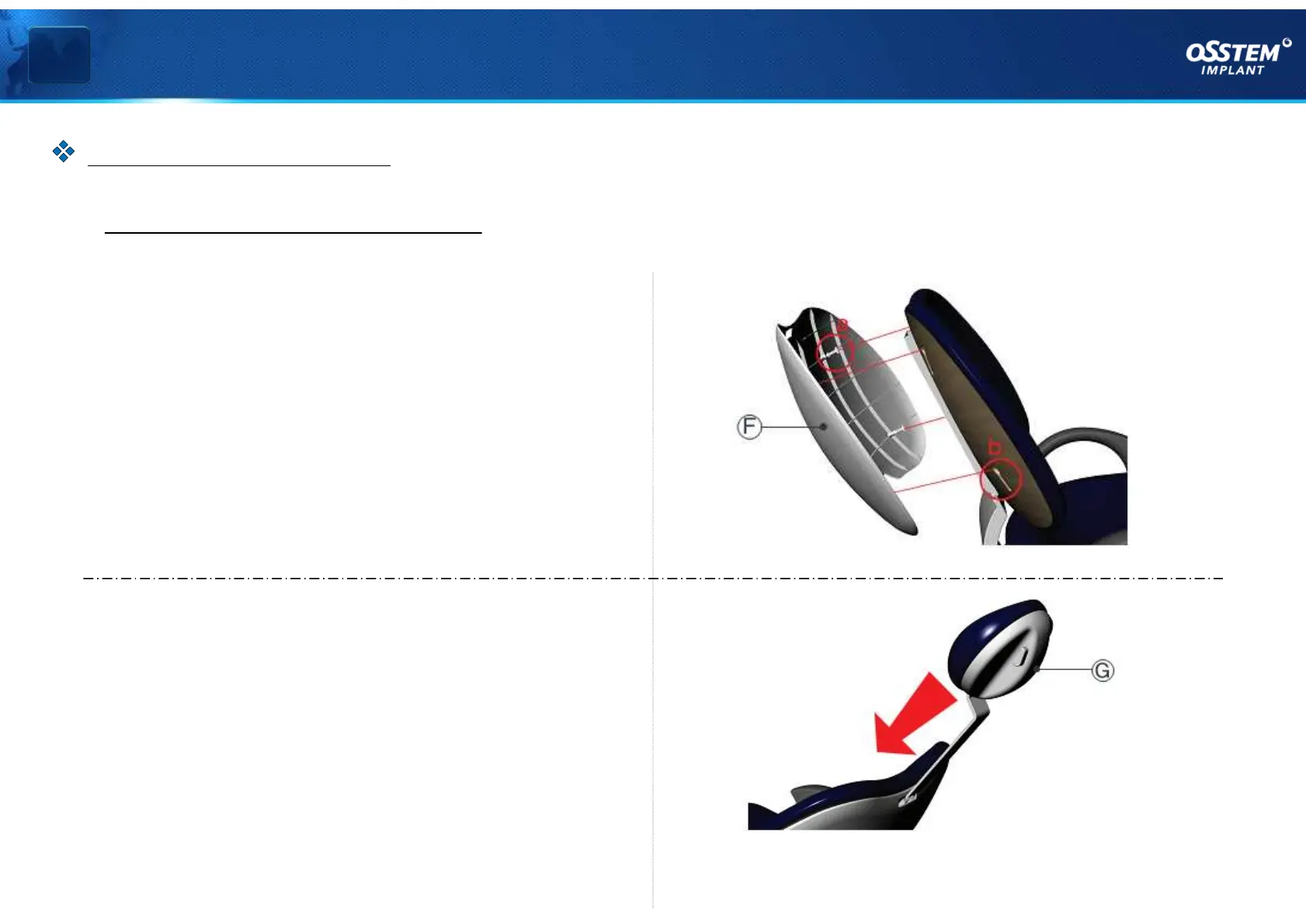

< Figure 07 >
< Figure 08 >
