Ⅲ K3 UNIT CHAIR Installation
CHAIR INSTALLATION
§ Installation procedures #8
15. Install motor cover
As shown in <Figure 15>, mount a hook (C)
located on the front side of the motor
cover (K) aligning with the groove on the
base front cover (J).
16. Fasten motor cover
As shown in <Figure 16>, fasten with a bolt
on each side of the motor cover (K).

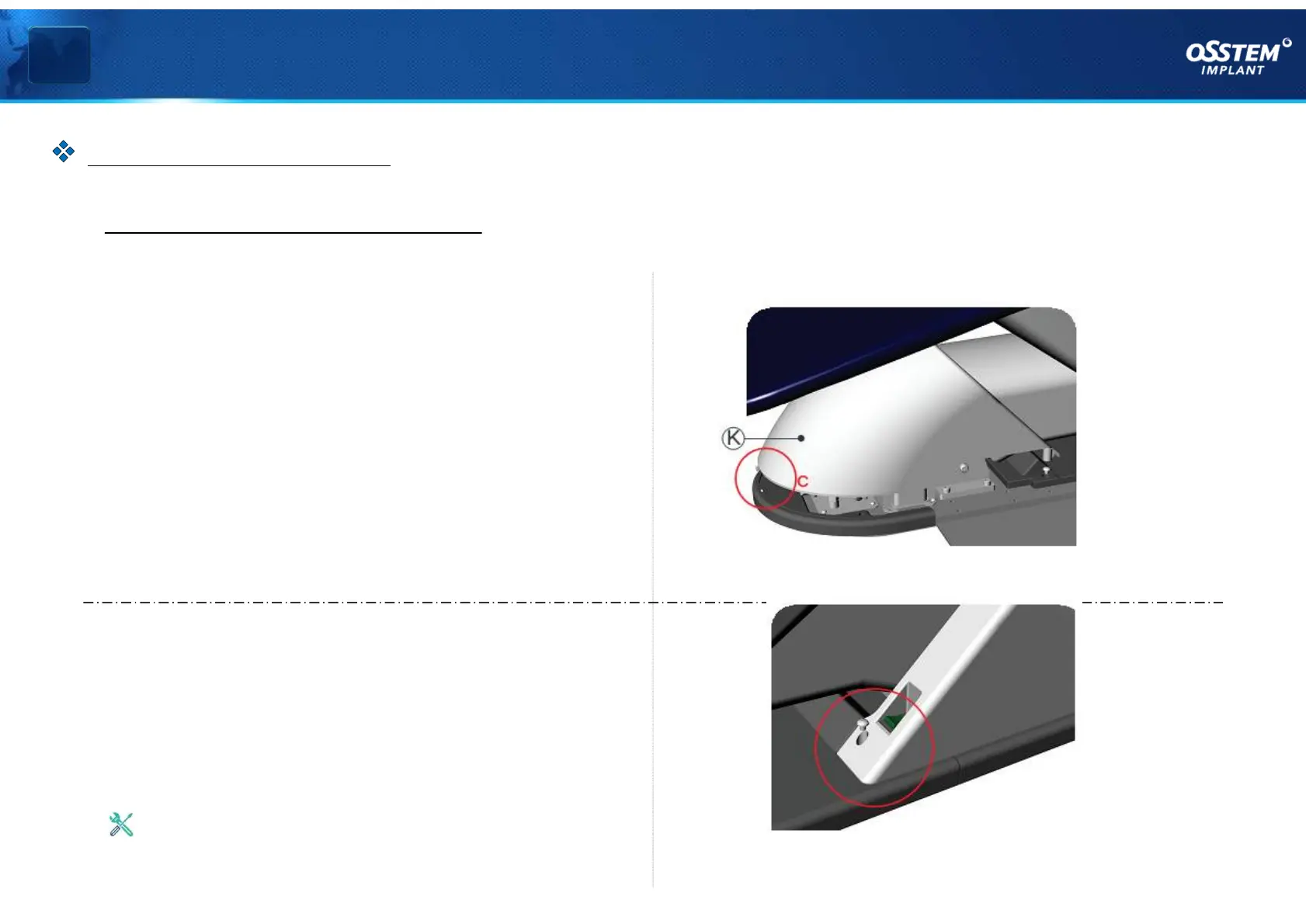

< Figure 15 >
< Figure 16 >
Use a Phillips screwdriver
『CHAIR Installation』
To Next Page
