23
2. Functions in each area
2-1-3. User button area

User buttons [USER1 to USER6]
These are used to assign some functions of the menu settings to the [USER1]
to [USER6] buttons on the CONFIG menu.
 See “5-3-1. Setting the user buttons”.
123
456
USER


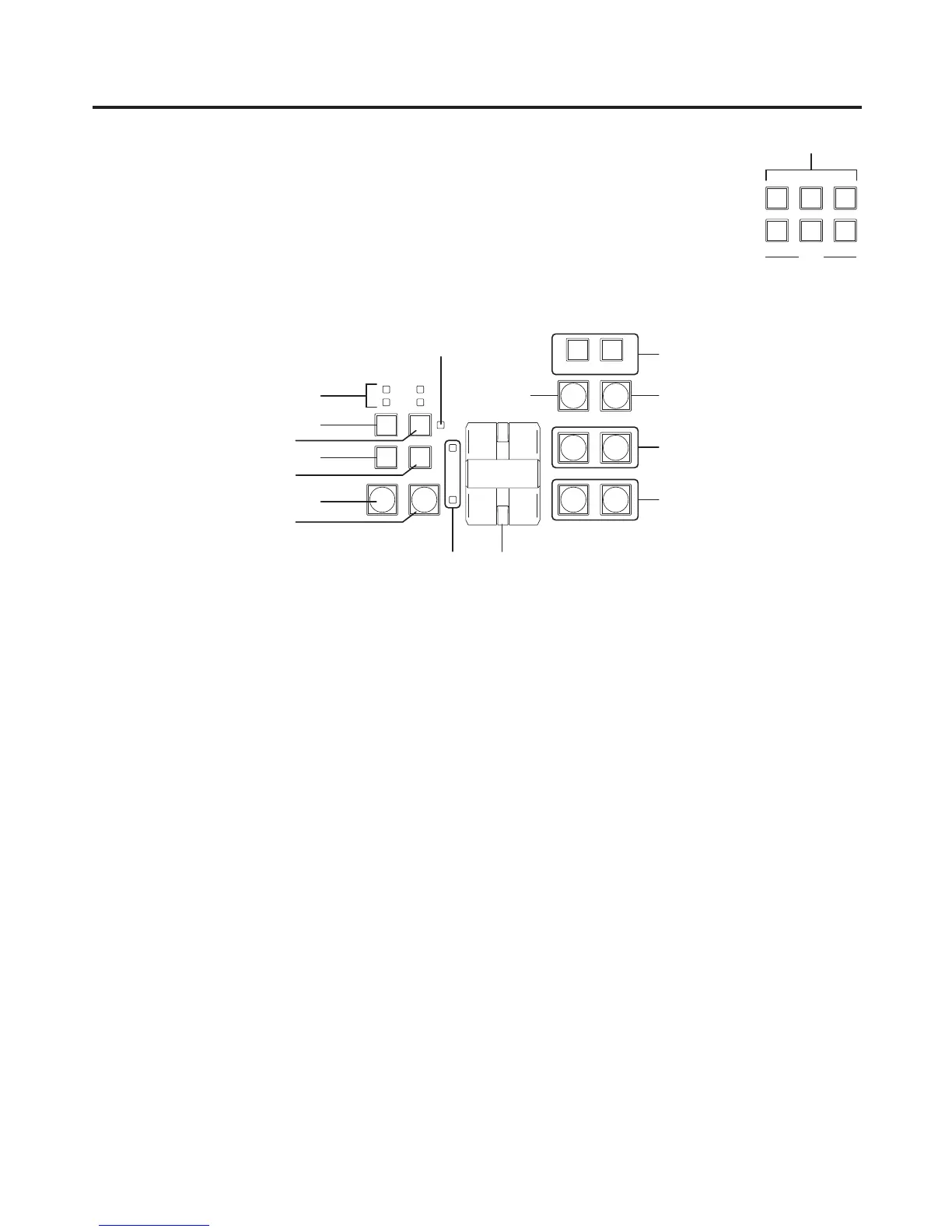

2-1-4. Transition area
8 9
10 XPT DSBL EFF DSLV
MIX
WIPE
ON
DSK1
ON
DSK2
ON
PinP1
ON
PinP2
ON
KEY
ON
FTB
ON
N/R R
BKGD KEY
MIX WIPE
CUT AUTO
UNDO
KEY
PAT T
10 12
MEMORY / PATTERN
11
WIPE DIRECTION









 




[BKGD] button
This executes the background transition when the [AUTO] button () or fader lever () has been operated.
When the [BKGD] button is pressed and it is selected, its indicator lights in amber.
If the [KEY] button () is now pressed, the indicator goes off, and the de-selected status is established.
When the [BKGD] button and [KEY] button () are pressed at the same time, both buttons are set to the
selected status.

[KEY] button
This executes the key transition when the [AUTO] button () or fader lever () has been operated.
When the [KEY] button is pressed and it is selected, its indicator lights in amber.
If the [BKGD] button () is now pressed, the indicator goes off, and the de-selected status is established.
When the [BKGD] button () and [KEY] button are pressed at the same time, both buttons are set to the
selected status.

KEY ON tally LED
This lights in red when the key ON status is established.

MIX, WIPE selection status tally LEDs
These light up to indicate whether MIX or WIPE has been selected when background transitions or key
transitions are executed.
