77
3. Basic operations
3-6-6. DSK decorations

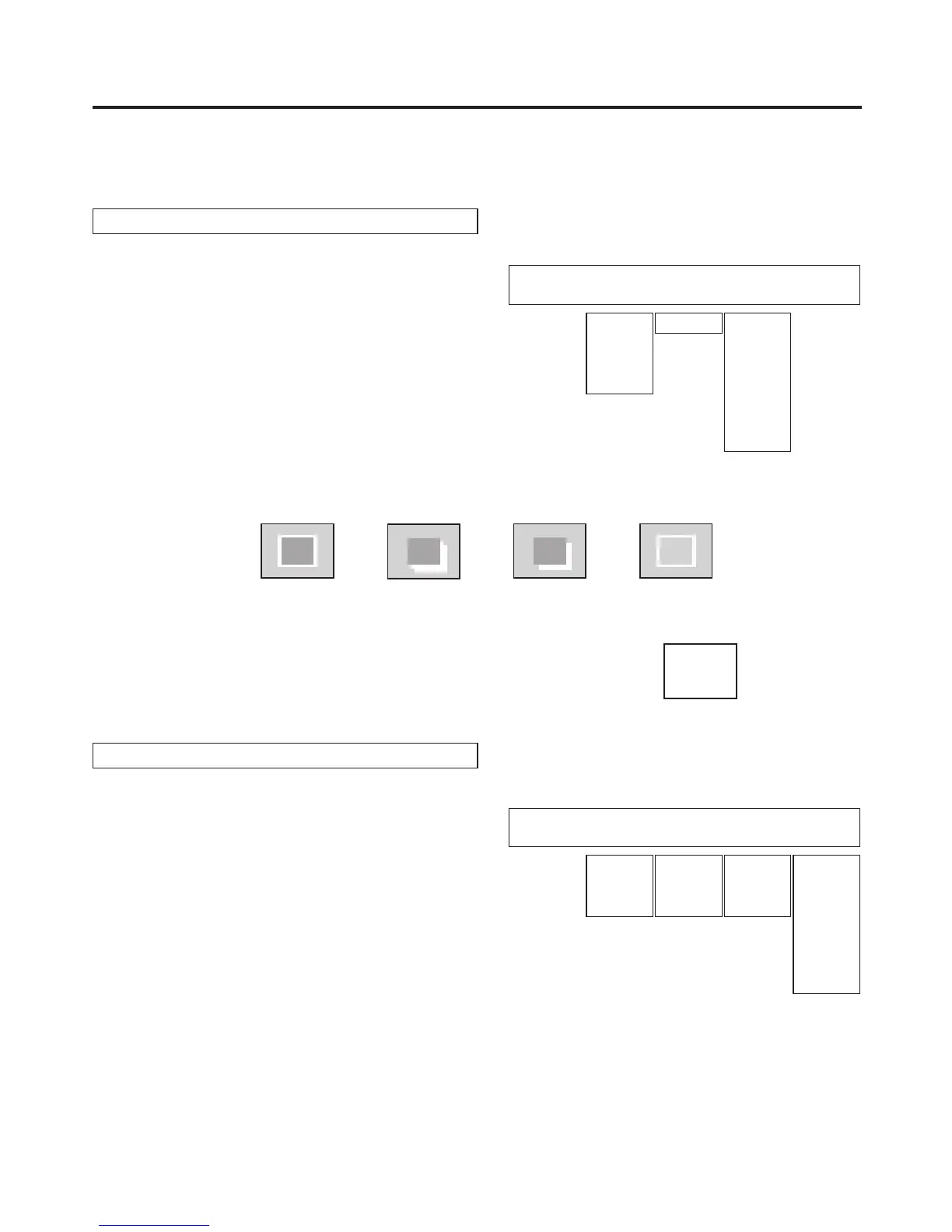

A border, shadow or other type of edge can be added to DSK.
Setting the edge
Press the [DSK1] button (or [DSK2] button) to light
its indicator and display the DSK1 menu (or DSK2
menu).
Refer to “2-1-5. LCD menu area”.
<Menu display>
DSK1 4
|
Type
|
Width
|
Direc
|
Edge | Off| 2| 0|
Border
Drop
Shadow
Outline
0-4 45
90
135
180
225
270
315
Turn [F1] to display the Edge sub menu.
Turn [F2] to select the edge type.
Off: An edge is not added.
Border: A border is added around the entire edge.
Drop: A diagonal border is added.
Shadow: A shadow is added.
Outline: An outline (only a border with no fill) is added.
Border
Drop
OutlineShadow
Turn [F3] to set the edge width.
Turn [F4] to set the direction (in 45-degree increments) in
which “Drop” and “Shadow” will be added.
(Top)
(Bottom)
(Right)(Left)
225180 270
135 315
45900
Setting the edge colour
On the DSK1 menu (or DSK2 menu), turn [F1] to
display the EdgeCol sub menu.
Turn [F2], [F3] and [F4] to adjust the Hue, Sat and
Lum of the edge colour.
<Menu display>
DSK1 5
|
Hue
|
Sat
|
Lum
|
Load↓
EdgeCol | 0.0| 0.0| 0.0| Black
0.0
|
359.9
0.0
|
100.0
0.0
|
108.0
White
Yellow
Cyan
Green
Magenta
Red
Blue
To call the preset colour
Turn [F5] to select the preset colour using the Load
item, and press the [F5] switch. The Hue, Sat and
Lum values are changed to the preset colour values.
To save the values that were set before calling the
preset colour, refer to “3-10. Memory”.
