PAPER JAMMED
CHECK FILM
Please refer to USER RECOVERABLE ERRORS () for the above items. If it turns out to be a
hardware deformity, please check each sensor. (Refer to TEST FUNCTIONS ().)

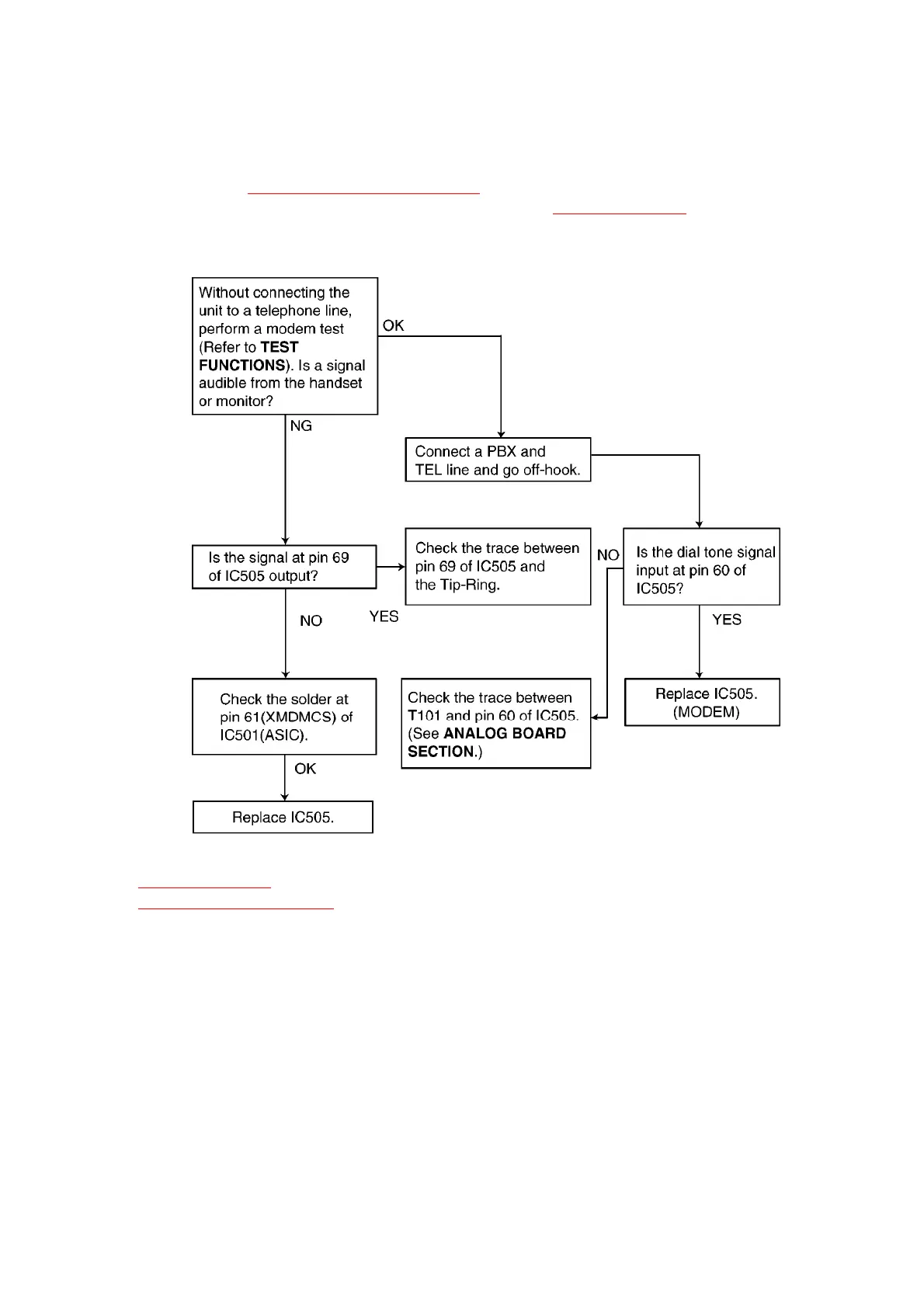

6.6.5.1.4. THE UNIT CAN COPY, BUT CANNOT TRANSMIT/RECEIVE
CROSS REFERENCE:
TEST FUNCTIONS()
ANALOG BOARD SECTION ()
6.6.5.1.5. THE UNIT CAN COPY, BUT CANNOT EITHER TRANSMIT/RECEIVE LONG DISTANCE OR
INTERNATIONL COMMUNICATIONS
The following two causes can be considered for this symptom.
Cause 1:
The other party is executing automatic dialing, the call has been received by this unit, and the
CED or DIS signal response time is too long. (In most cases, this unit detects the CNG signal and
can respond to CED or DIS.) (According to the ITU-Tstandard, the communication procedure is
cancelled when there is no response from the other party within 35 sec, so that the other party
releases the line.)
105
