low.
Digital Board
SW Signal (IC501-25 pin)
ON-Hook ON Low level
OFF-Hook OFF High level

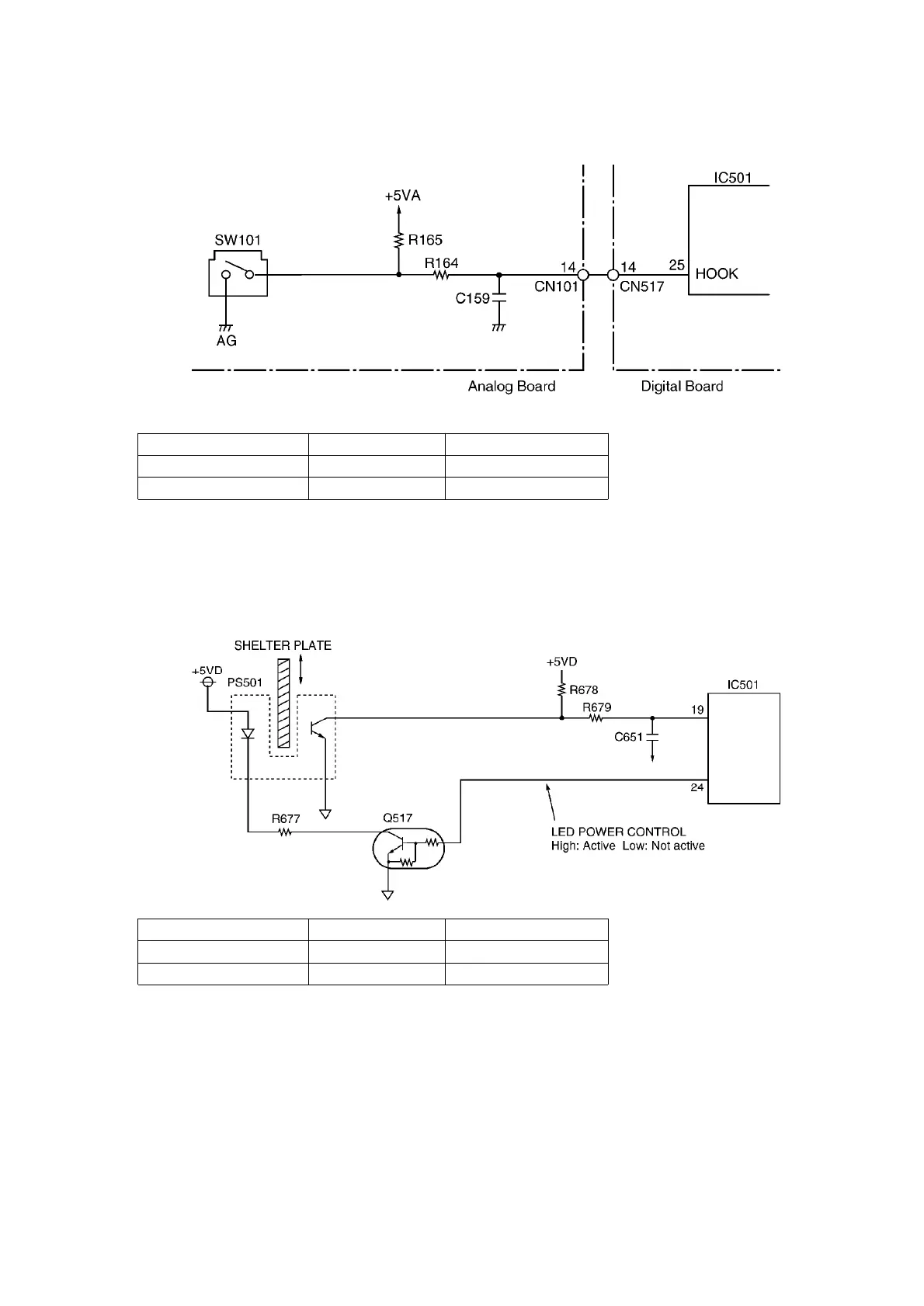

7.6.5. PAPER TOP SENSOR (PS501)........................"PAPER JAMMED"
When the recording paper is loaded on the print head, the shelter plate shuts the sensor light,
and the photo transistor turns OFF. The input signal of IC501-19 pin becomes a high level.
Usually, the shelter plate is lifted, the photo transistorturns ON, and the input signal of IC501-19
pin becomes a low level.
Photo transistor Signal (IC501-19 pin)
Recording paper top OFF High level
No recording paper ON Low level
7.7. MODEM SECTION
7.7.1. FUNCTION
The unit uses a 1 chip modem (IC505) that serves as an interface between the control section for
FAX transmission and reception and the telephone line. During a transmitting operation, the
digital image signals are modulatedand sent to the telephone line.
During a receiving operation, the analog image signals which are received via the telephone line
172
