Chapter 1 Preparation — About your projector
26 - ENGLISH

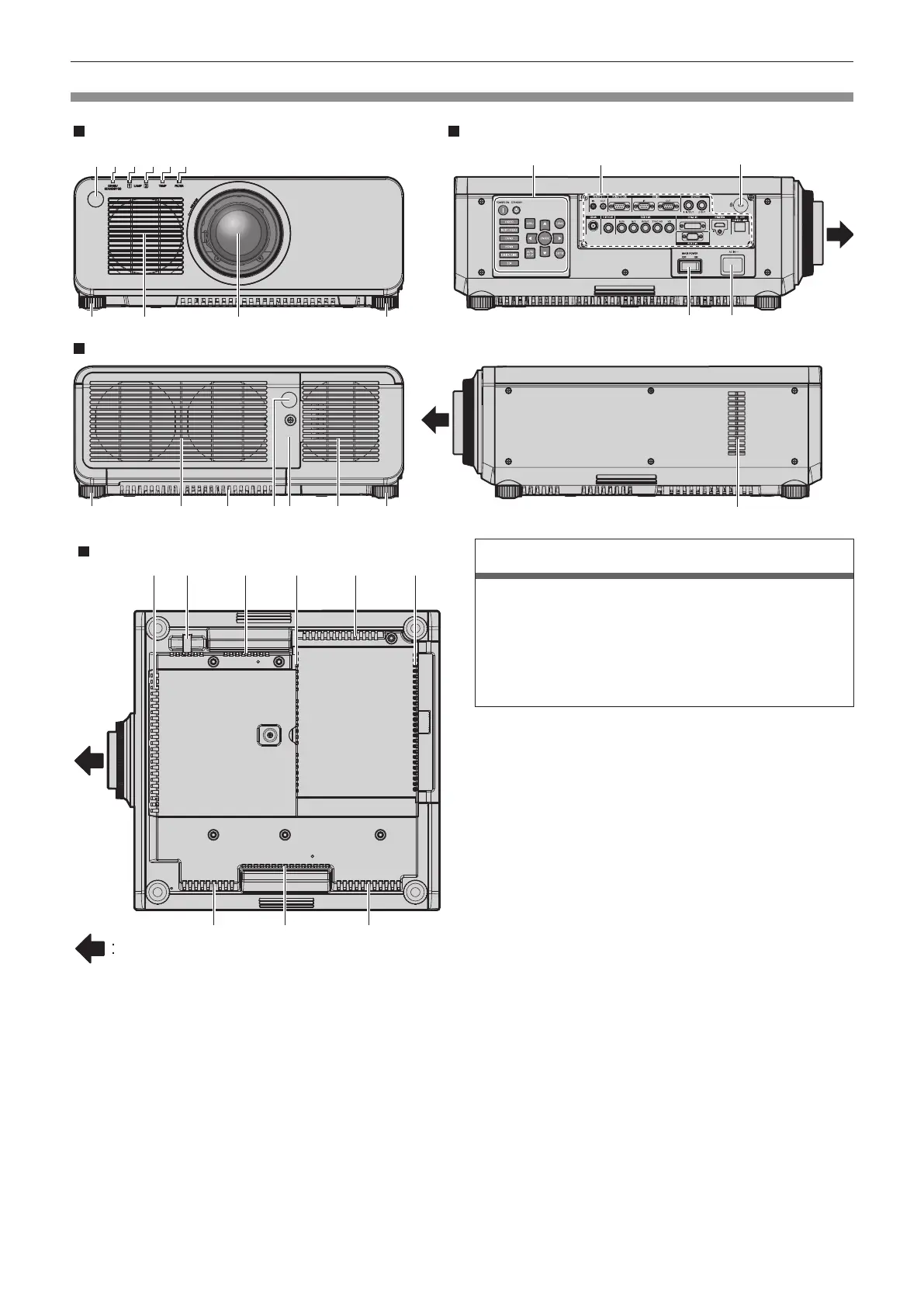

Projector body
1 2 3 4 5 6
7
8 9 7
7 7
10 11 1012 13
15
8
17
18
1614
Front Side
Rear
88
8 8 8 8 819
8
Projection direction
Bottom
WARNING
Keep your hands and other objects away from the air
exhaust port.
f Keep your hands and face away.
f Do not insert your ngers.
f Keep heat-sensitive objects away.
Heated air from the air exhaust port can cause burns, injury, or
deformations.
1 Remote control signal receiver (front)
2 Power indicator <ON (G)/STANDBY (R)>
Displays the status of the power.
3 Lamp indicator <LAMP1>
Displays the status of lamp 1.
4 Lamp indicator <LAMP2>
Displays the status of lamp 2.
5 Temperature indicator <TEMP>
Displays the internal temperature status.
6 Filter indicator <FILTER>
Displays the status of the air lter case and air lter.
7 Adjustable feet
Adjusts the projection angle.
8 Air intake port
9 Projection lens
(Only models with lens)
10 Air exhaust port
11 Air lter case
12 Remote control signal receiver (rear)
13 Lamp unit cover
14 Control panel (x page 27)
15 Connecting terminals (x page 28)
To Next Page
