Chapter 2Getting Started — Connecting
ENGLISH - 49
Connecting
Before connecting
f Before connecting, carefully read the operating instructions for the external device to be connected.
f Turn off the power of all devices before connecting cables.
f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.
g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static
electricity from your body before performing work.
g Do not use unnecessarily long cables to connect to a device connected to the projector or to the projector body. The longer the cable, the
more it is susceptible to noise. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.
g When connecting cables, connect GND rst, then insert the connecting terminal of the connecting device in a straight manner.
f Acquire any connection cable necessary to connect the external device to the system that is neither supplied with the device nor available
as an option.
f If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this case, a time base corrector
(TBC) must be connected.
f The projector accepts video signals (including Y/C signals), analog RGB signals (synchronous signals are TTL level), and digital signals.
f Some computer models are not compatible with the projector.
f Use a cable compensator when you connect devices to the projector using long cables. Otherwise the image may not display properly.
f Refer to “List of compatible signals” (x page 178) for the types of video signals that can be used with the projector.

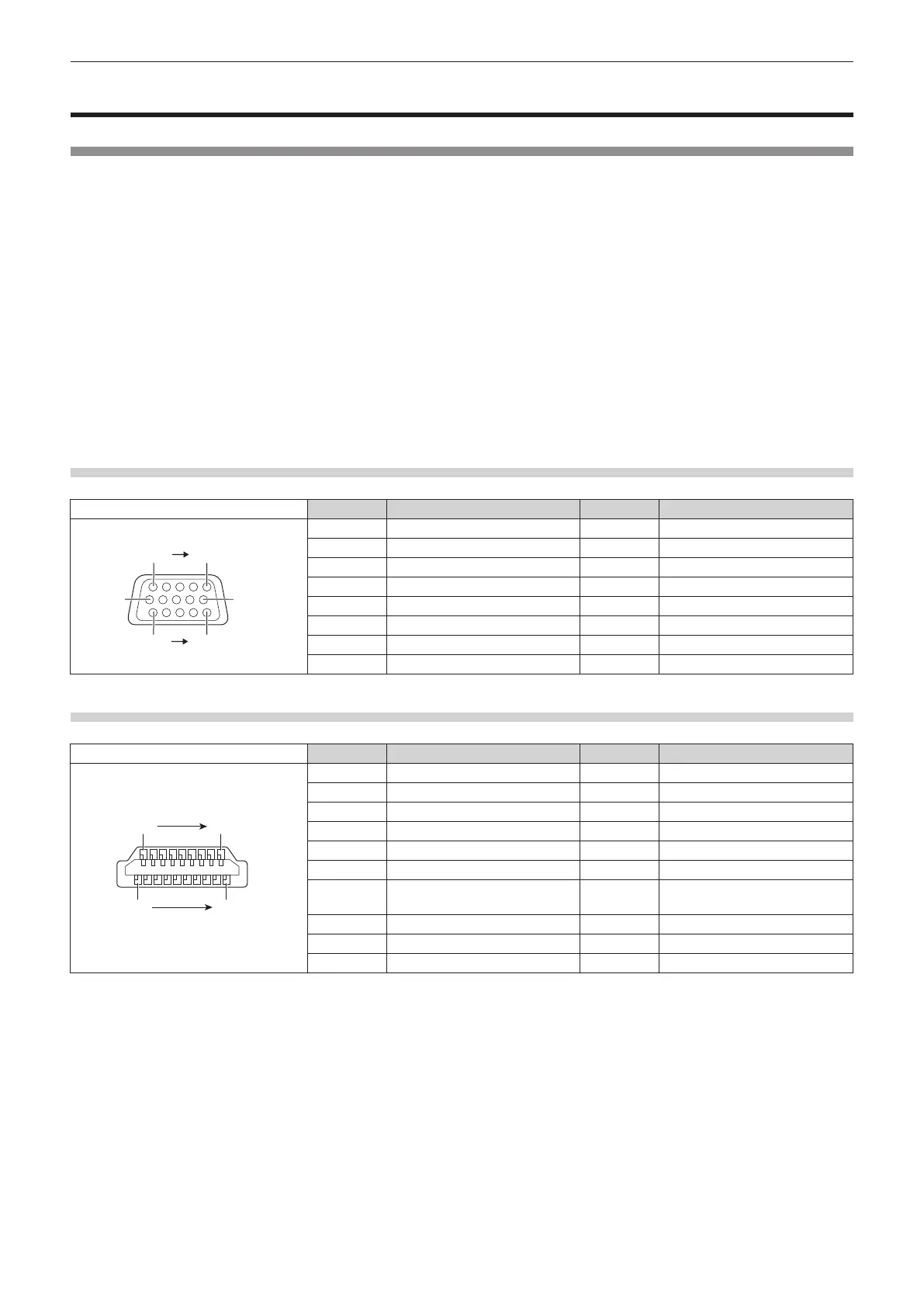

<RGB 2 IN> terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name
(10)
(6)
(11) (15)
(1) (5)
(1) R/P
R
(9)
(2) G/Y (10) GND
(3) B/P
B
(11) GND
(4) (12) DDC data
(5) GND (13) SYNC/HD
(6) GND (14) VD
(7) GND (15) DDC clock
(8) GND
<HDMI IN> terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name
Even-numbered pins of (2) to (18)
(1) (19)
(2) (18)
Odd-numbered pins of (1) to (19)
(1) T.M.D.S data 2+ (11) T.M.D.S clock shield
(2) T.M.D.S data 2 shield (12) T.M.D.S clock
-
(3) T.M.D.S data 2
-
(13) CEC
(4) T.M.D.S data 1+ (14)
(5) T.M.D.S data 1 shield (15) SCL
(6) T.M.D.S data 1
-
(16) SDA
(7) T.M.D.S data 0+ (17)
DDC/CEC
GND
(8) T.M.D.S data 0 shield (18) +5 V
(9) T.M.D.S data 0
-
(19) Hot plug detection
(10) T.M.D.S clock+
